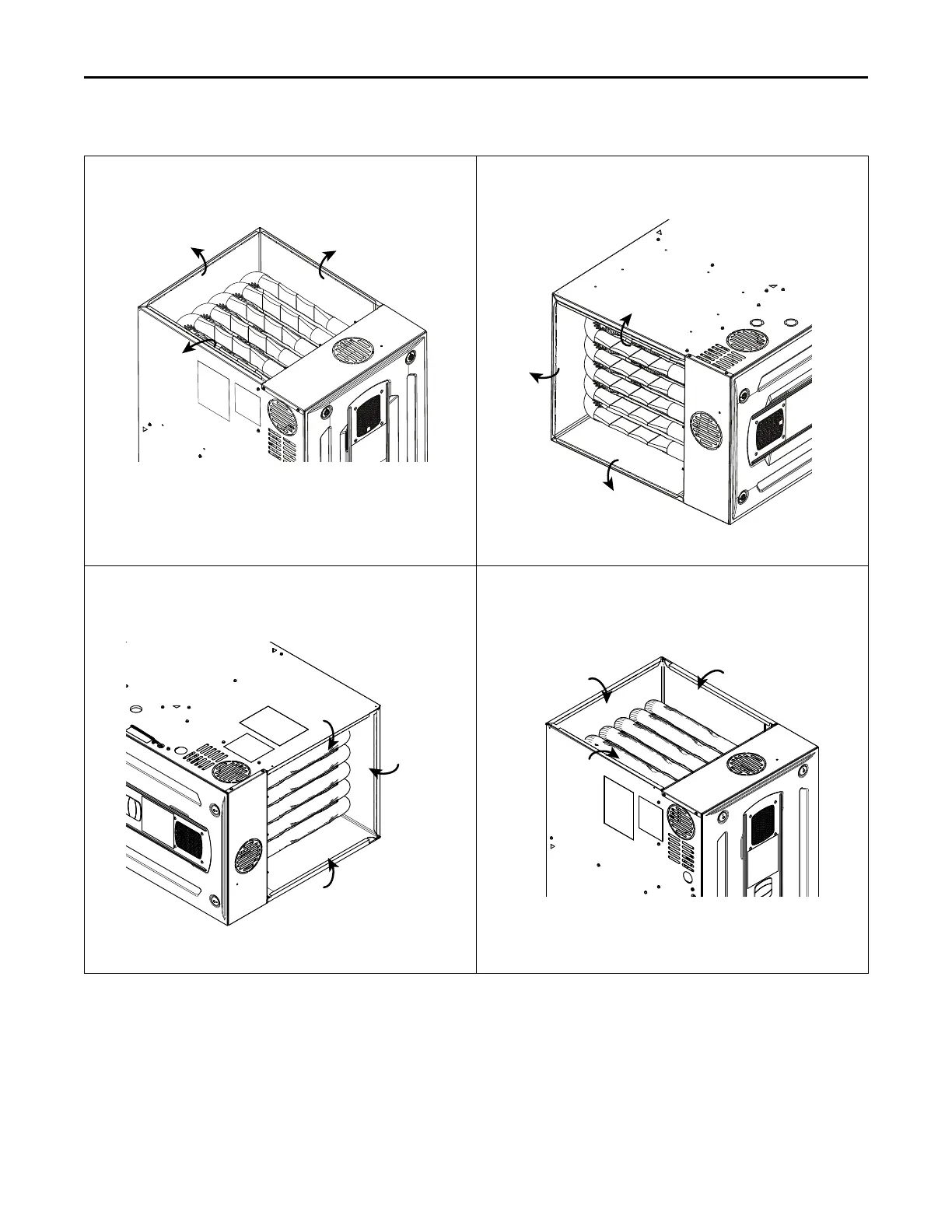

Table 6. Supply Duct Connections
Upflow Furnace with Coil
Note: There are no longer guide holes located on the furnace flange.
Refer to Step 1., Step 3., Step 5., Step 7.
Furnace in Horizontal Left with Coil
Note: There are no longer guide holes located on the furnace flange.
Refer to Step 1., Step 4., Step 5., Step 7.
Furnace in Horizontal Right with “A” Coil
Note: Flat or dedicated horizontal coils may require flanges to be bent
upward.
Refer to Step 2., Step 4.
Downflow Furnace with Coil
Refer to Step 2., Step 4.
