Trane TDHMB080ACV3VA - *UHM WIRING DIAGRAM (DHM Models); DHM Model Wiring and IFC Connections

20 UHM-DHM-SF-1H
Service Facts

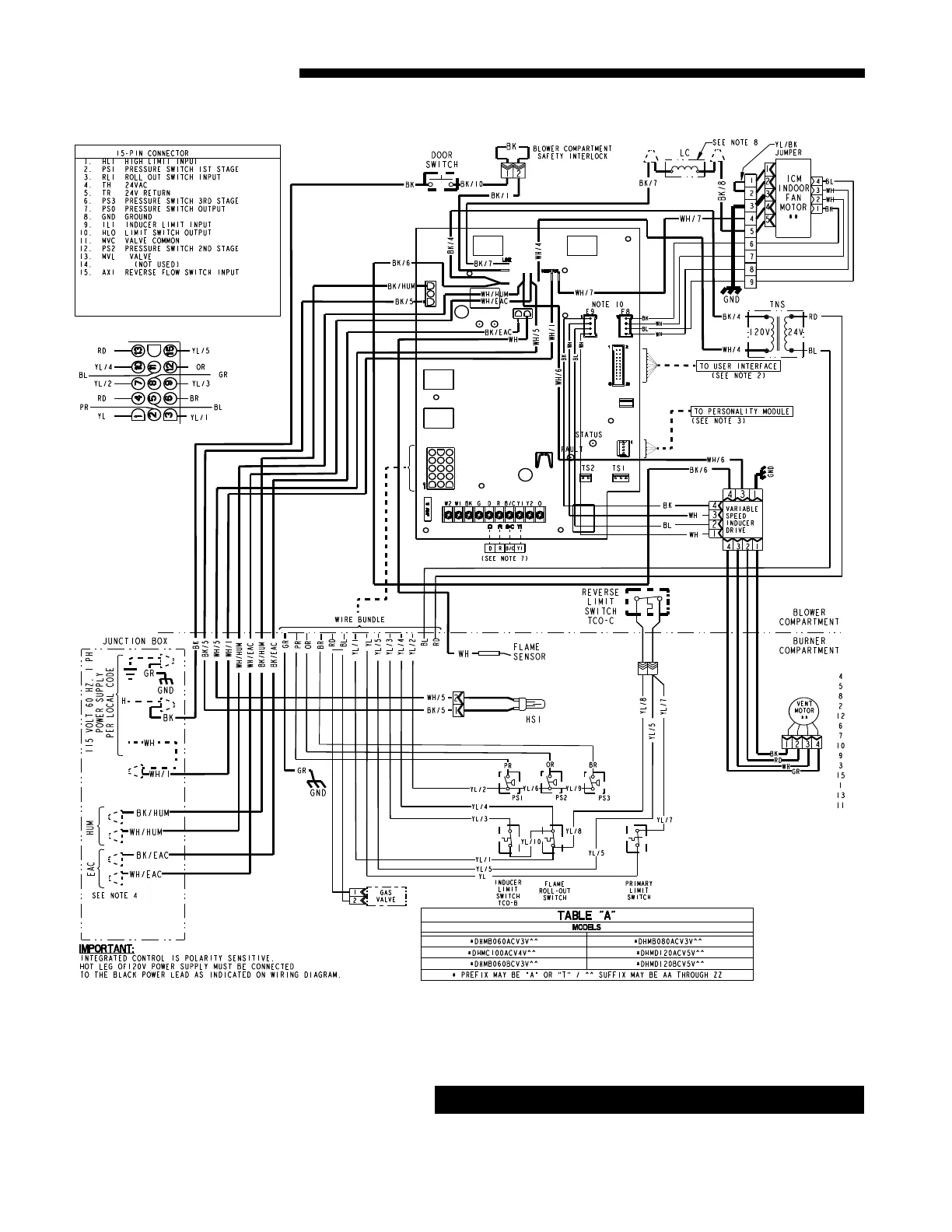

*DHM WIRING DIAGRAM
▲
CAUTION
!
Label all wires prior to disconnection when servicing con-
trols. Wiring errors can cause improper and dangerous op-
eration. Verify proper operation after servicing.
