Trane TDHMC100ACV4VB - Page 22

22
Pub. No. 22-1840-14
Electrical
Data

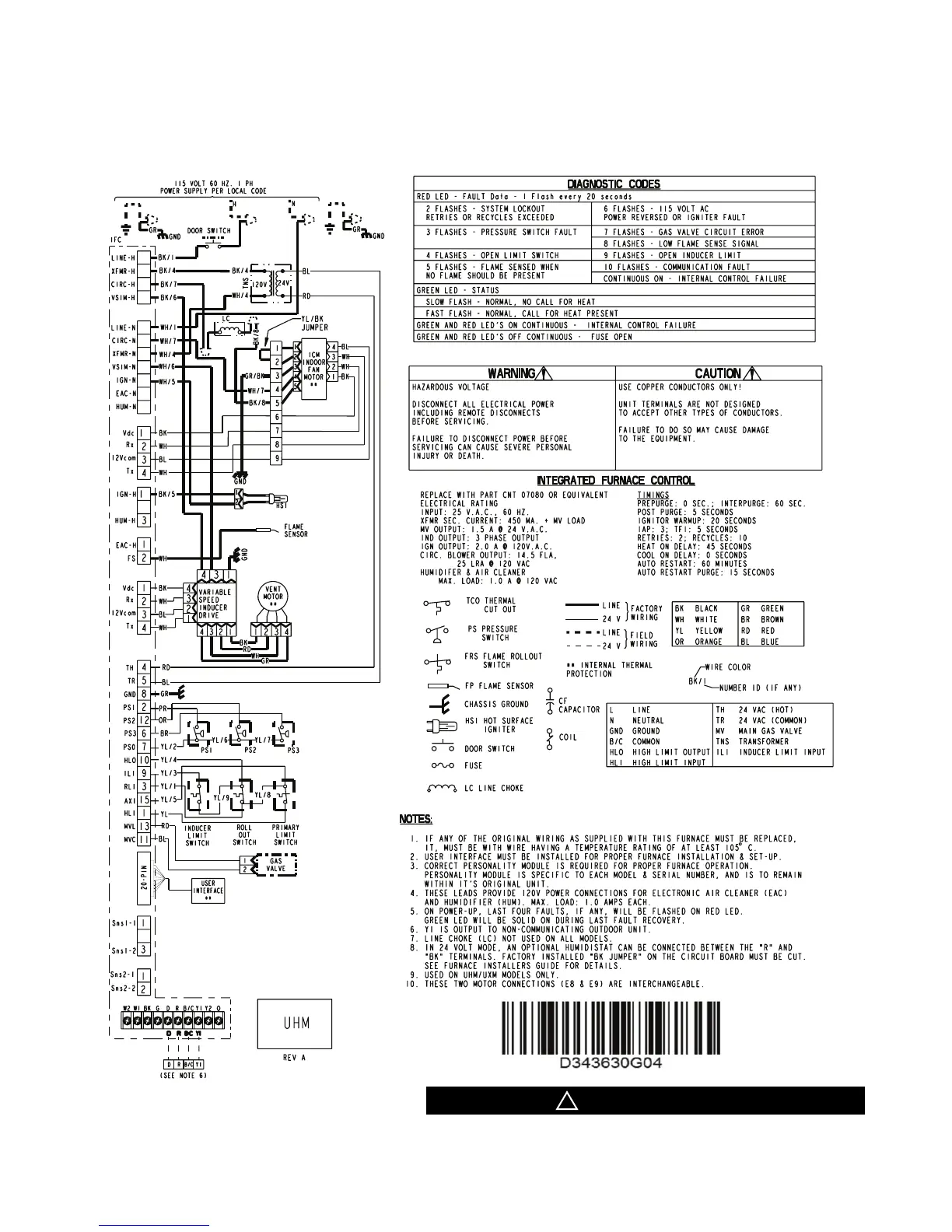

TUHM Schematic Diagram
▲
CAUTION
!
Label all wires prior to disconnection when servicing
controls. Wiring errors can cause improper and dangerous
operation. Verify proper operation after servicing.
