Trane TDX080R942V - Single Stage Heating;Cooling Wiring; 2 Stage Heating;1 Stage Cooling Wiring

22-1706-01-0400 (EN) 11
Field
Wiring
From Dwg. 21B341335 Rev. 0
From Dwg. 21B341334 Rev. 0

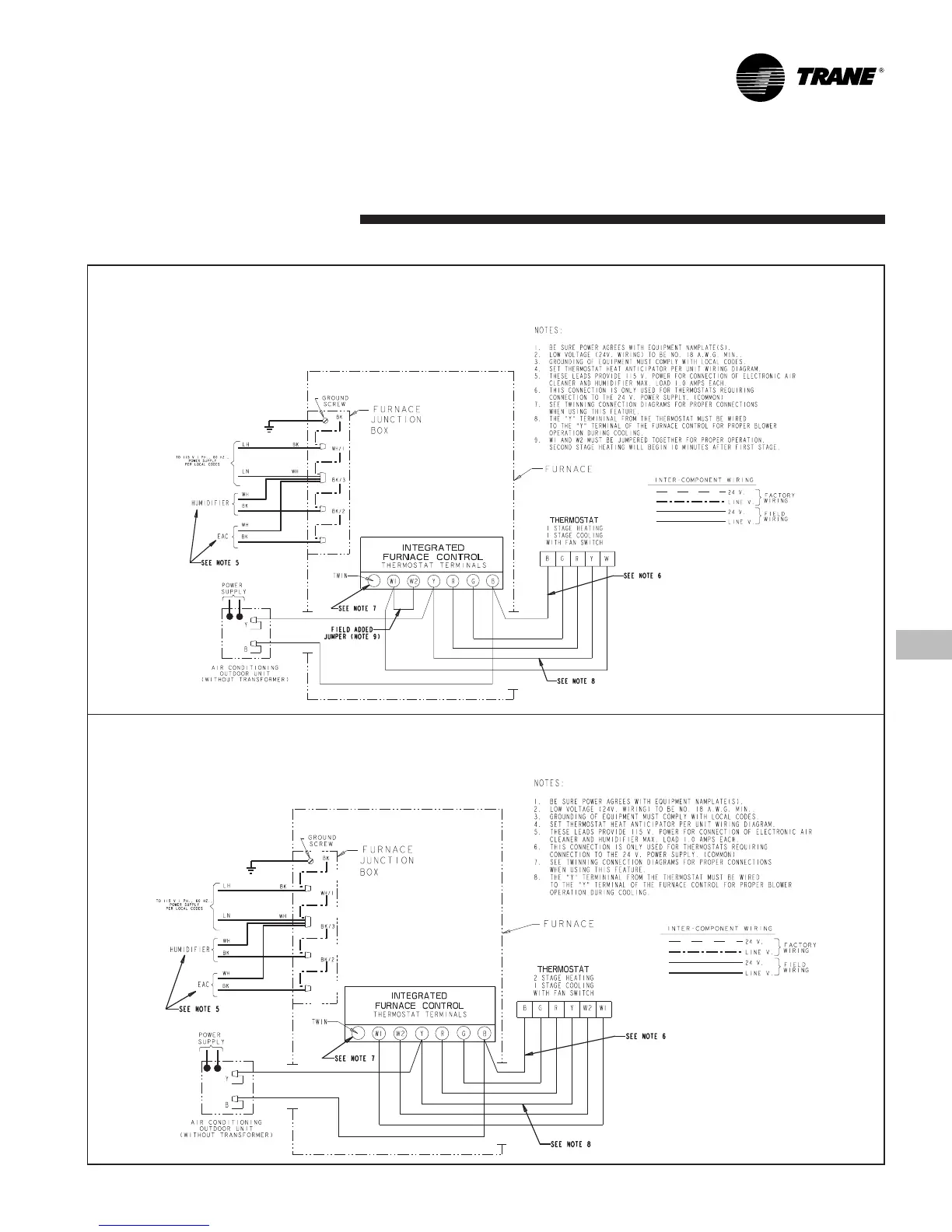

FIELD WIRING DIAGRAM FOR 2 STAGE HEATING SINGLE STAGE COOLING
(OUTDOOR SECTION WITHOUT TRANSFORMER)
FIELD WIRING DIAGRAM FOR SINGLE STAGE HEATING/COOLING
(OUTDOOR SECTION WITHOUT TRANSFORMER)
