Trane TWE065E13FB - Page 11

18-GE01D1-9 11
Installer’s Guide
H
B
A
W
3.70
2.50
19.50
.50
1.00
21.00
1.50
*

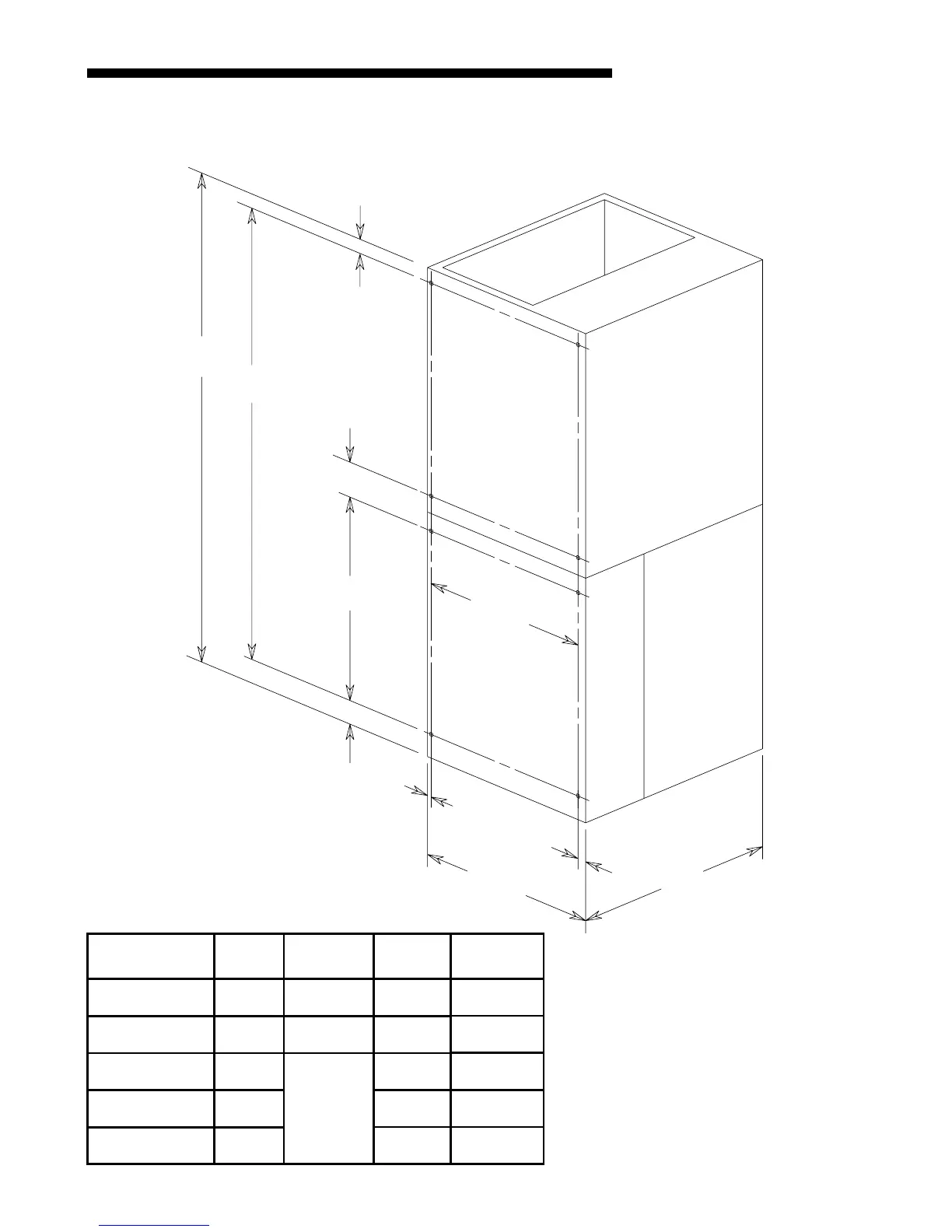

CAGE NUT MOUNTING LOCATION FOR TWE AIR HANDLERS
* FOR TWO PIECE
CABINET ONLY.
Model No. H W A B
TWE031E13 43.00 21.50 17.00 39.00
TWE037E13 45.00 23.50 19.00 41.00
TWE040E13 51.75
26.00
23.80 47.75
TWE049E13 57.90 29.00 53.90
TWE065E13 62.75 31.25 58.75
