Trane XV90i - Users Information

32-5053-03 5
User’s Information

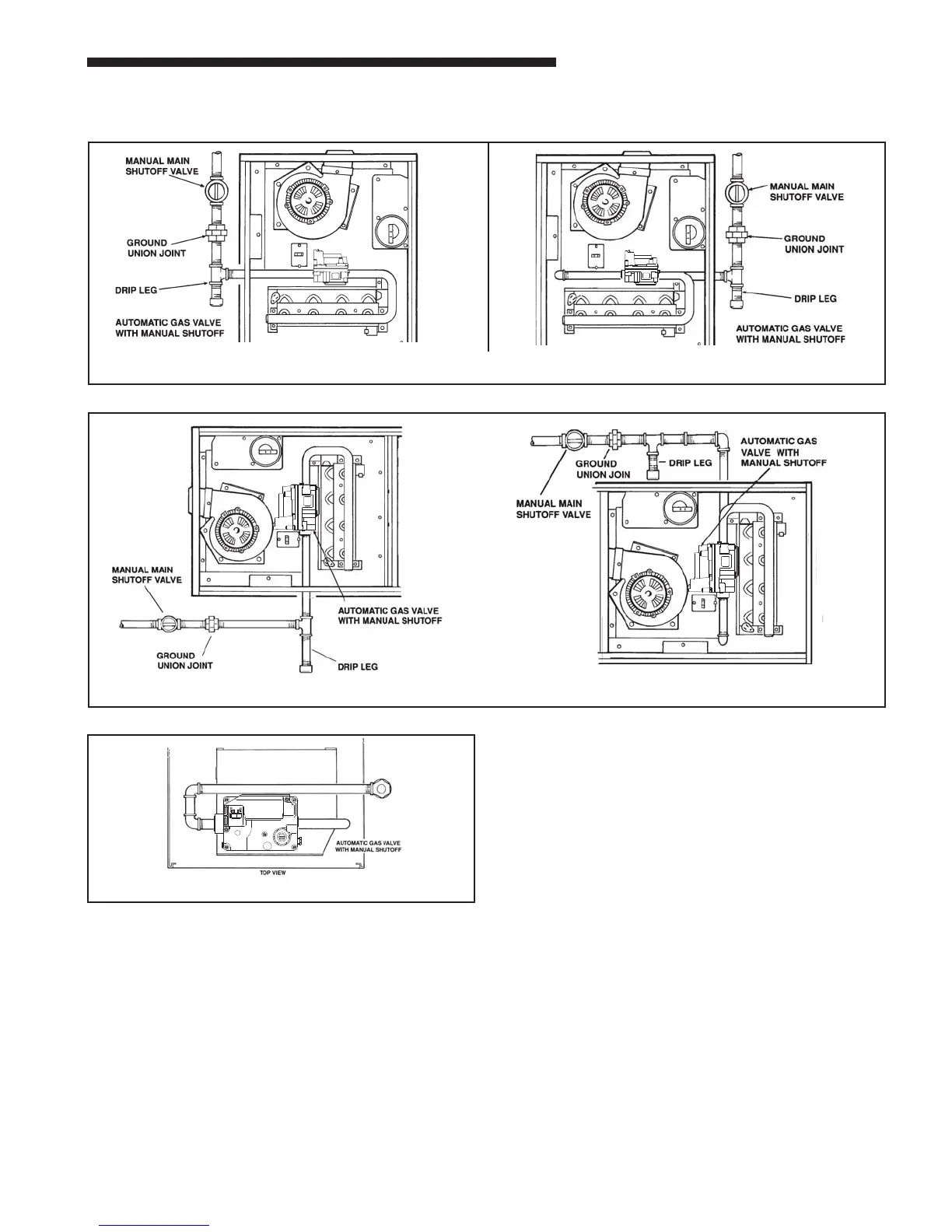

NOTE THE LOCATION OF THE MANUAL MAIN GAS SHUTOFF VALVE FOR YOUR FURNACE.
Have your installer or servicer show you the location if you have any questions.
UPFLOW FURNACE Manual Main Gas Shut-off Valve May Be Located on the Left or Right Side
TOP VIEW OF RIGHT SIDE PIPING
HORIZONTAL FURNACE Manual Main Gas Shut-off Valve May Be Located on the Top or Bottom Side
