iGPS-M Pro USER’S MANUAL

Interface

1. PS2 interface

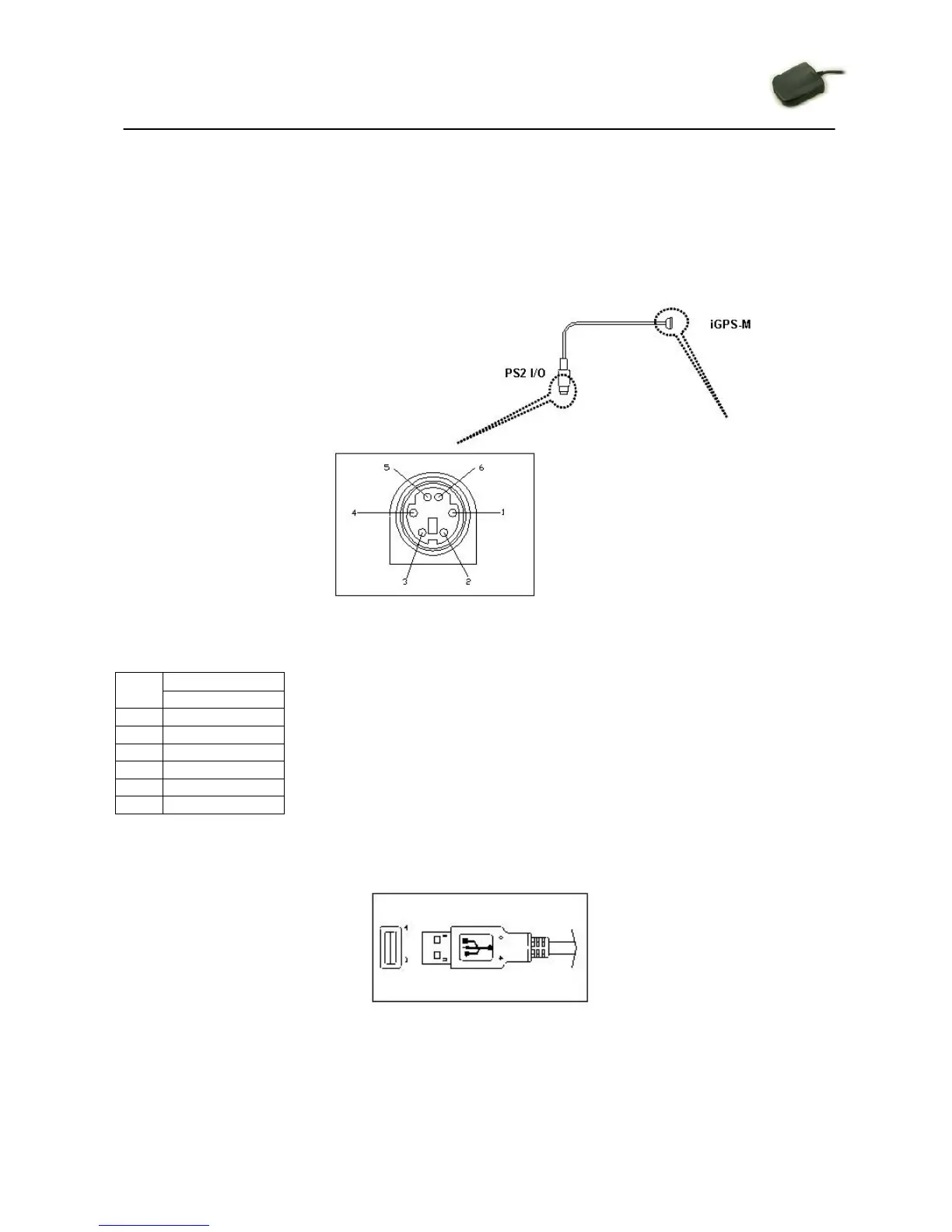

As shown in the illustration on the right, the length of the wire on iGPS-M Pro

receiver is 2 meters. There is a PS-2 connector for the connection to PC/Lap top

or handheld device. The pin assignment is shown below.

1.1 PS2 female cable definition

Signal Name

RS-232

1 RS232 TX

2 +5VDC

3 NC

4 Ground

5 1 PPS (optional)

6 RS232 RX

2. USB interface
