Step 1
If you have not already assembled the carriage assembly,
Stop Now. You must first assemble the carriage,
follow the assembly instructions included in the #2 Box -
“Collapsible Carriage & Plywood Attachments”.
Remove
3/8” Keeper
Nuts
Assembly Instructions for the TP250 Hoist
Instructions for the TP400 Hoist skip to page 8

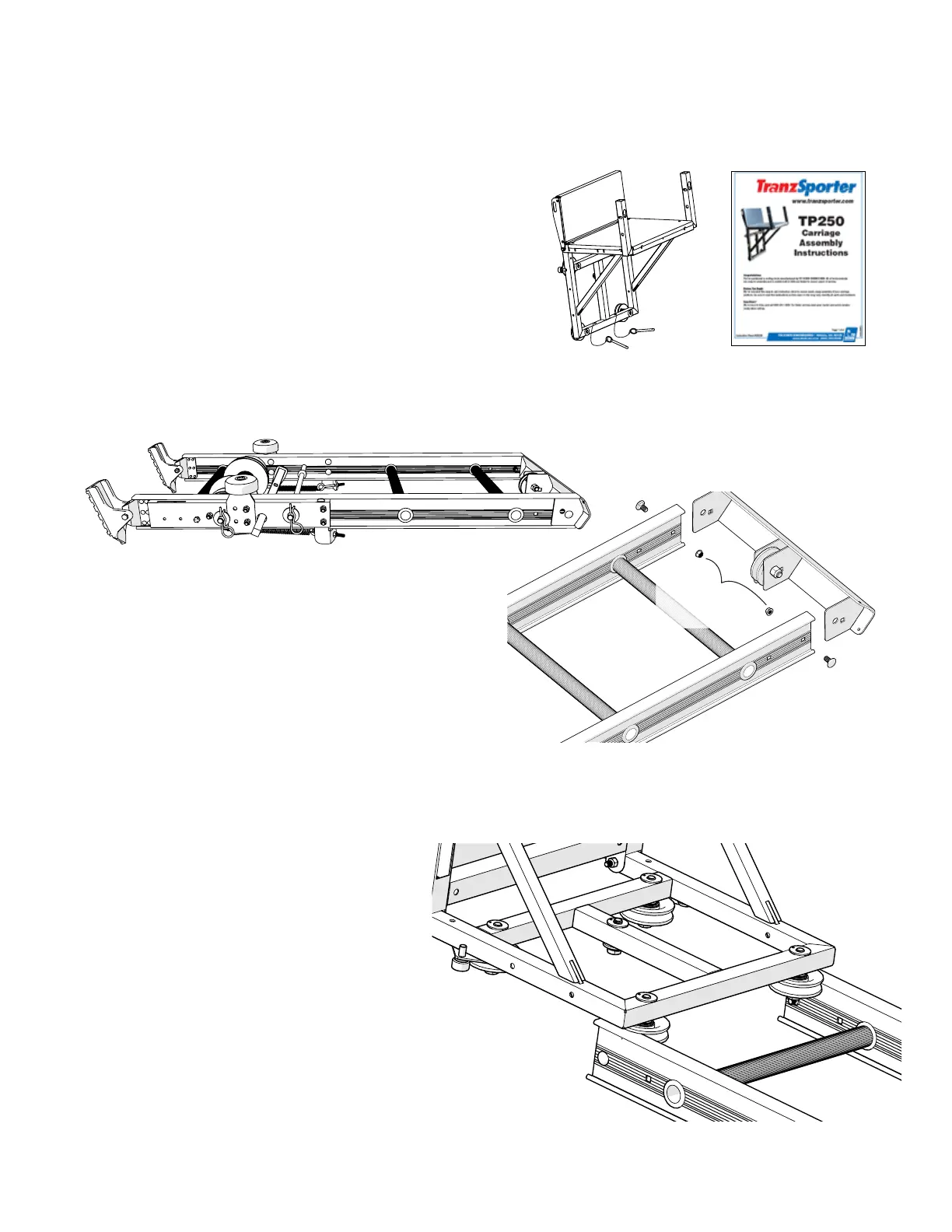

Step 2
Remove base section from its box and place on a
clean floor or assembly area. Remove the top cap
with a 7/16” wrench (one bolt/nut on each side).
Step 3
Starting at the top of the track section slide carriage
assembly onto track section so that the four rollers
connect to the top rail of the track section.
TP250 Assembly Instructions
To Next Page
