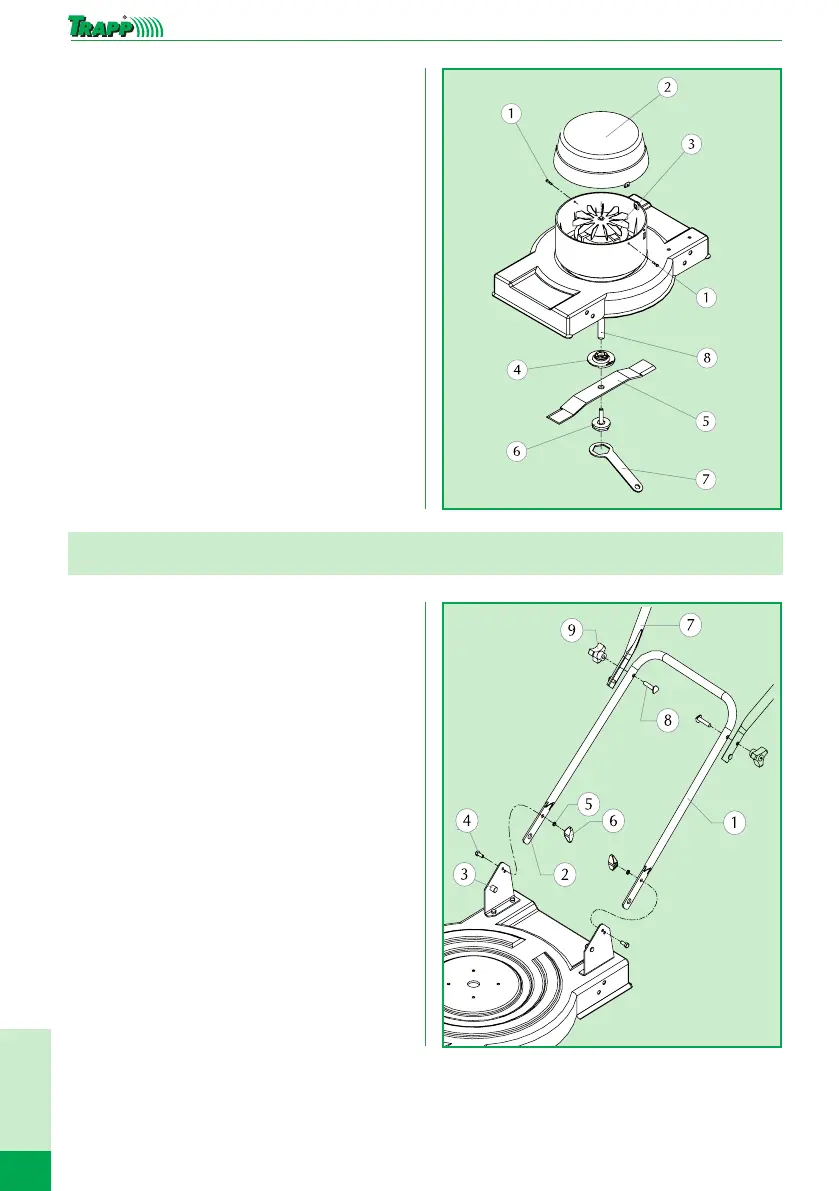

 With the other hand turn flange (4) until the
axle of the motor locks in place.
 Proceed attaching other parts as illustrated, and
finish by attaching motor cover (2).
Attaching Handle to the Deck
Models MC-50E / MC-60E /
CG-40E
To attach the handle to the deck, proceed as
follows:
 Conect inferior handle (1) at both ends and line up
the holes (2) onto pins on the deck (3).
 Place screw (4) and washer (5) and tighten with wing
nut (6).
 Now attach superior handle (7), align and place
screw (8) and tighten with wing nut (9).
