ENGLISH
41
www.trapp.com.br
Models MC-20L / MC-35L /
MC-40L / KM-350 / KM-400 /
SL-30T / SL-30E / SL-350 /
TS-70T / TS-70E / RS-40E

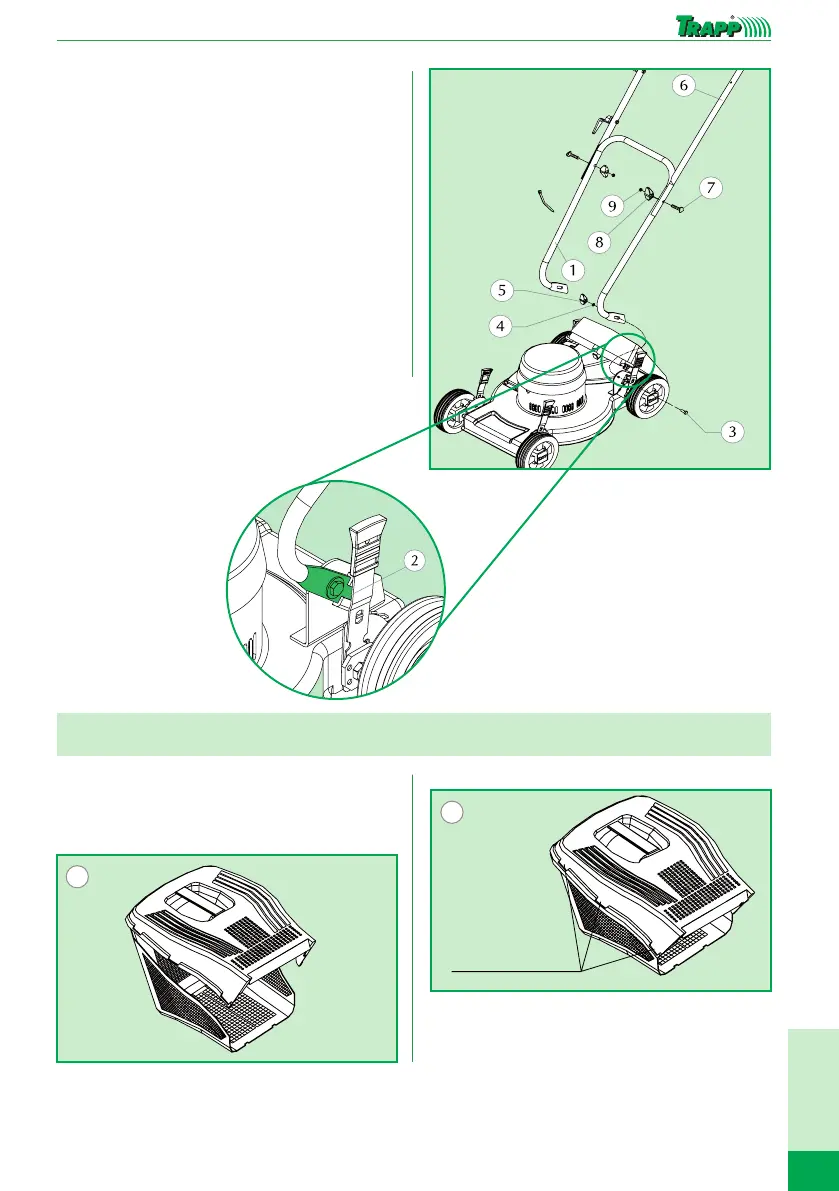

To attach handle bar proceed as follows:
 Slide lower bar (1) into connection link (2).
 Secure into place using screw (3), lock into place by
using washer (4) and wing nut (5). Do the same for
other side.
 Now slide upper bar (6) onto lower bar, secure into
place using screw (7), and tighten with wing nut (8
and 9).
Grass Catcher/Case - Models MC-40L / KM-400
Attached as per drawing:
 Start by placing back part of case onto rivets
(as per Fig. 1) do the same for both sides.
1
2
Clamps
