TRAPP TRF 50 - Page 60

ENGLISH
60
www.trapp.com.br
9
Image merely illustrative.
2
3
4
5
6
1
8
Fig. 1
Model TRF 60
4
3
8
7
Image merely illustrative.
Fig. 2
Note: wear safety glasses while conducting this
work.
Reference table of the original material
and the result according to the use of each
sieve made available in the equipment
according to the model
0.8 mm 3 mm 5 mm 12 mm
Flat strainer

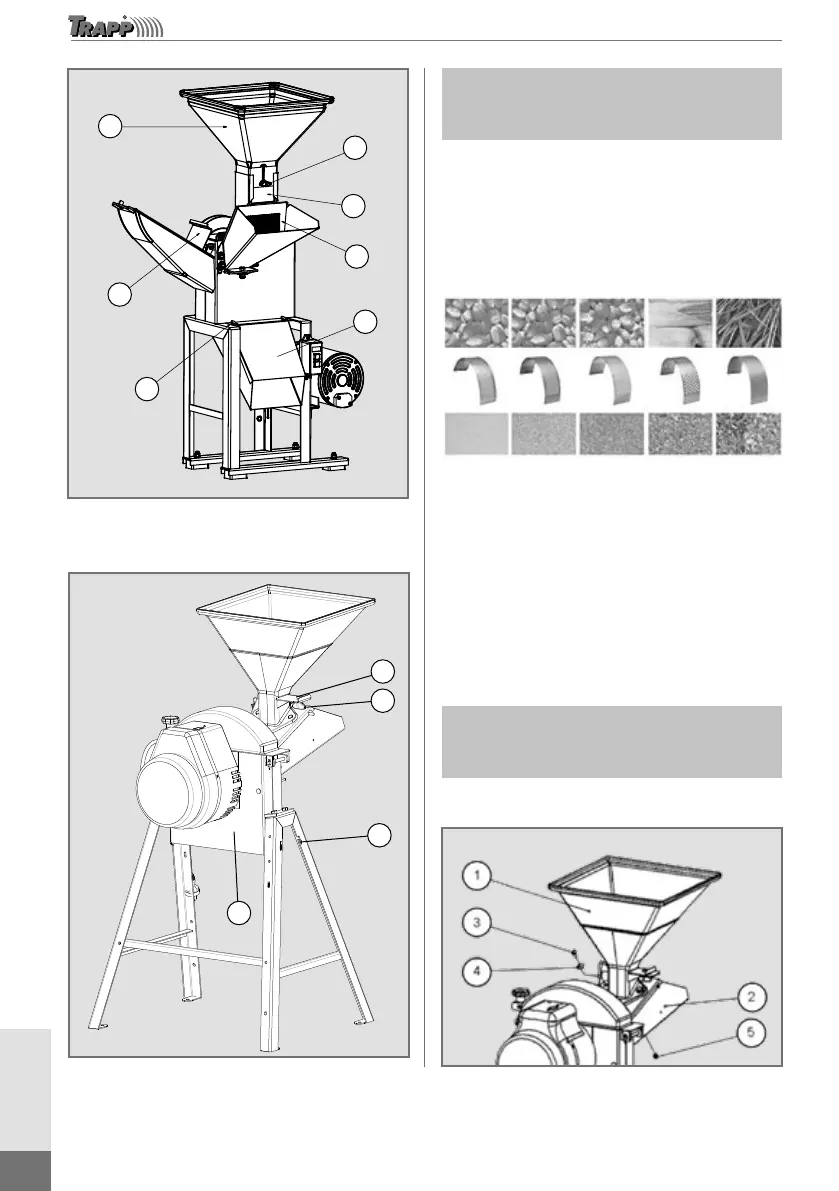

Assembly of grain feeder
Model TRF 50 and TRF 60
 Place the grain feeder (1) over the green crop
feeder (2), secure it with screw (3), washer (4)
and tighten with nut (5) through the internal part
of the green crop feeder (2).
N ote: it must be conducted with the machine
off.
Image merely illustrative.
