TRAPP TRF 50 - Page 59

ENGLISH
59
www.trapp.com.br
1

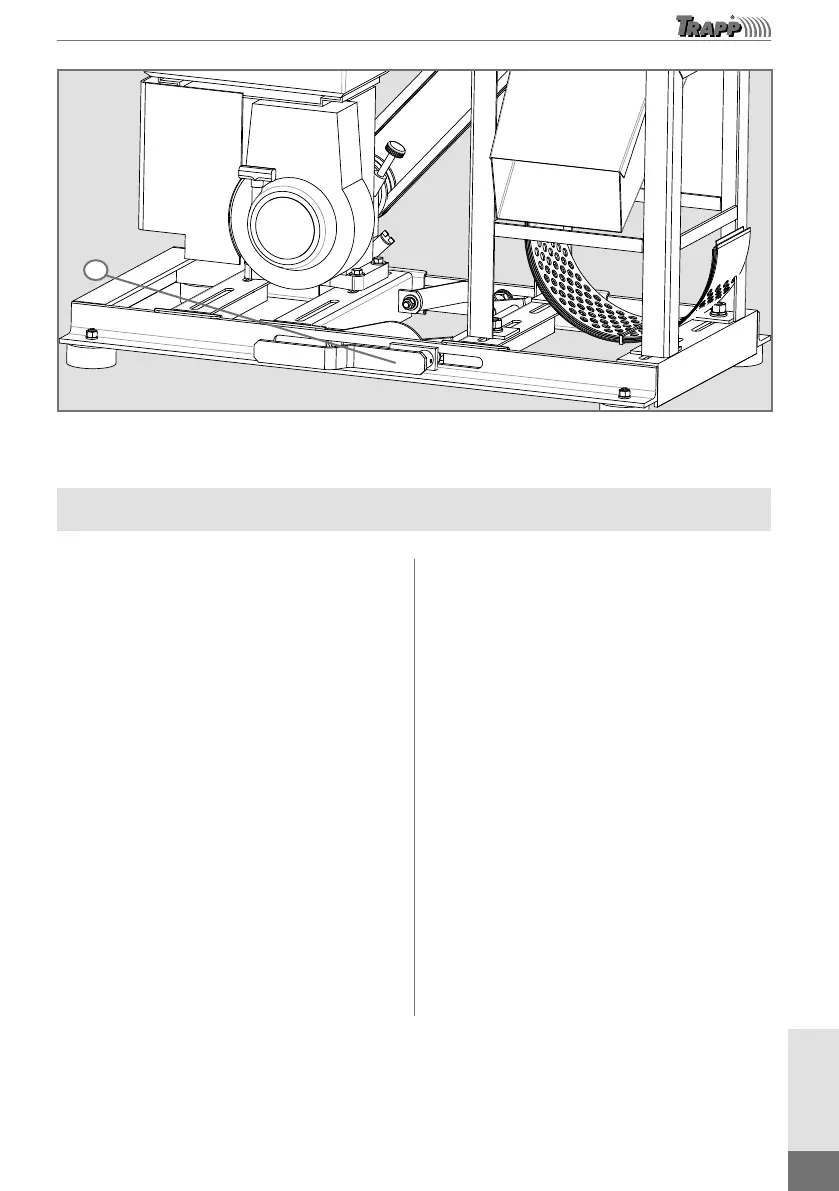

Image merely illustrative.
To Crush Grains
To operate with dry products
(grains):
 Fit the cover plate (1), according to gure 1. Except
for models TRF 50, TRF 60 and TRF 70.
 Mount the green crop funnel cover (5) according to
gure 1.
 Choose the appropriate sieve, according to the
material intended to be produced, (diameters 0.8 -
3 - 5 - 12 mm), because the resulting product
depends on the used sieve diameter. See the
application table for each equipment.
 The dry product is placed in the grain funnel (2), from
where it is directed to be processed, the nal product
being poured in the material output funnel (6). Place
a container or a rafa bag under the material output
funnel (6) in order to collect the crushed material,
according to gure 1. In models TRF 50, TRF 60 and
TRF 70, the material will get out from the machine
through the lower part of the shredder body (7), and
a container or a rafa bag can also be used to collect
the crushed material, according to gure 2.
 The TRAPP shredders are provided with a support
to t a rafa bag or another type of container in
order to facilitate the crushed material collection, as
indicated (8), according to gures 1 and 2.
 Be careful not to overload the motor. Regulate
the grain input adjuster according to the shredder's
capacity to grind and to the strainer chosen. The
regulation of the grain input adjuster is done in
the following way: loosen the wing nut (3) located
underneath the grain input adjuster. Once the
regulator (4) is free, pull in case you need a bigger
opening, and push in case you need a smaller
opening. After regulating, tighten the wing nut (3),
according to gures 1 and 2.
 The lower the sieve mesh, the lesser the amount of
material released by the grain funnel so as not to
overload the machine.
Note: when tensioning the belts as described above, do not activate the shredder’s disk, turn the gasoline-powered
engine off and verify if the belts are in the pulley groove, if necessary, adjust and turn the equipment on again.
