-1-

I. THE SERIAL TAG Page 1

a) Serial Tag & Location Page 1

b) Reading The Serial Tag Page 1

II. RECEIPT INSPECTION Page 2

III. INSTALLATION Page 2

IV. PRESTART CHECKS Page 3

V. OPERATION Page 3

a) Operation Page 3

b) Pan Chiller Page 3

c) Lower Storage Cabinet Page 4

d) Shutdown For Extended Period Page 4

e) Removing Food Product At Night Page 4

f) Leaving Food Product In The Unit

Throughout The Night Page 4

VI. CONTROL BASICS Page 4

a) Control Display Page 4

VI. CONTROL BASICS (continued)

b) Unlocking the Keypad Page 5

c) Adjusting The Cabinet Temperature

Setpoint Page 5

d) Adjusting The Rail Temperature

Setpoint Page 5

e) Initiating A Defrost

VII. General Care Page 5

a) General Care Page 5

b) Adjusting The Shelves Page 5

c) Cleaning The Condenser Page 6

d) Cleaning The Lower Storage Cabinet Page 6

VIII. TROUBLE SHOOTING Page 6

IX. SERVICE/WARRANTY INFORMATION Page 7

a) Service Information

b) Service Support Information

c) Warranty Registration

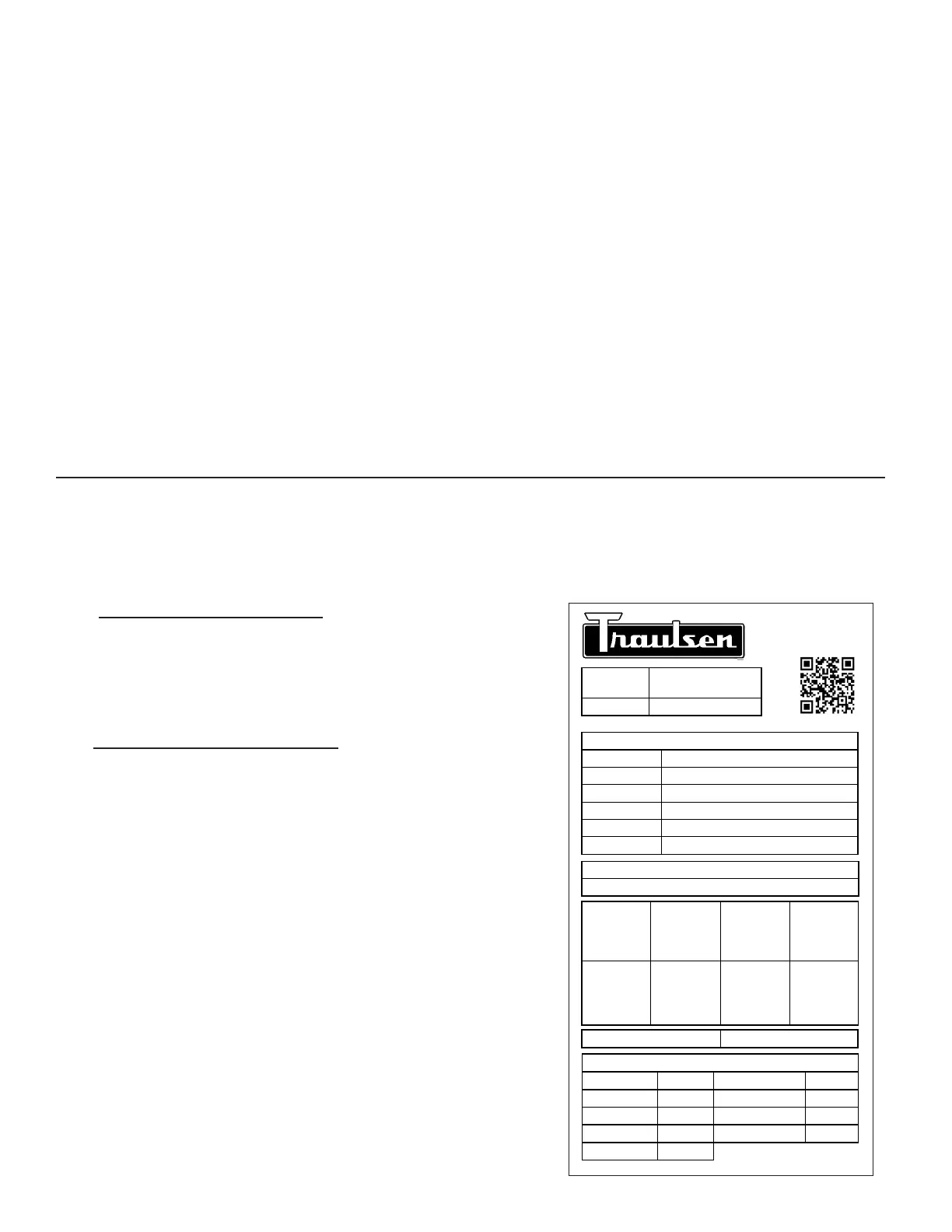

I. THE SERIAL TAG

I. a - SERIAL TAG & LOCATION

The serial tag is a permanently afxed label on which is recorded

vital electrical and refrigeration data about your Traulsen product,

as well as the model and serial number. This tag is located in the

right interior compartment on all standard KBP Series models.

I. b - READING THE SERIAL TAG

• Model = The model # of your Traulsen unit

• (S/N) Serial Number = The permanent ID# of your Traulsen

unit

• Refrigerant SYS1= System 1 Refrigerant type used and refrigerant

charge

• Design Pressure= System 1 High and Low Pressure

• Refrigerant SYS2= System 2 Refrigerant type used and refrigerant

charge

• Design Pressure= System 2 High and Low Pressure

• Volts = Voltage

• Hz = Cycle

• Total Current = Maximum amp draw

• Min Circuit Amps = Minimum circuit ampacity

• Agency Labels = Designates agency listings

This unit is listed to UL 471, CSA 120 and NSF 7 by an approved NRTL.

Consult the factory or unit data plate for approval information.

• Components = Component Ratings

4401 Blue Mound Rd.

Ft. Worth, TX 76106

800-825-8220

Input Power (ELIN) - FOR INDOOR USE ONLY

115-208/230V ~ 60Hz 8.0A (8,0A)

MODEL:

MODELO:

MODELE:

RDT232WUT-FHS

S/N: T25364A14

REFRIGERANT / REFRIGERANTE / RÉFRIGÉRANT

SYS1 (REFM): R-134a 8.4oz 238.1 g (238,1 g)

Hi Press. (PRESH): 500psi 3.45 MPa (3,45 Mpa)

Lo Press. (PRESL): 250 psi 1.72 Mpa (1,72 Mpa)

SYS2 (REFA): R-404a 12.5oz 354.4g (354,4g)

Hi Press. (PRESH): 500psi 3.45MPa (3,45MPa)

Lo Press. (PRESL): 250psi 1.72Mpa (1,72Mpa)

(Symbol 1)

(Alt Safety / Other

(Symbol 2)

(Alt. San / Other 2)

(Symbol 3)

(Alt. En. / Other 3)

(Symbol 4)

(WEEE)

(Symbol 5)

(Safety)

(Symbol 6)

(Sanitaon)

(Symbol 7)

(Energy)

(Symbol 8)

(Customer QR

Code / Other 4)

Device/Part Number: PartNum (UL/NSF Notes)

SCAN FOR SERVICE INFO

COMPONENTS / COMPOSANTS / COMPONENTES

COMP AMPS: EVAP FAN AMPS:

COND FAN AMPS: LIGHT WATTS:

DEF HTR AMPS: CTRL AMPS:

DOOR HTR AMPS: MIN AMPS:

MAX AMPS:

370-60297-00 REV.A 11/20/14
