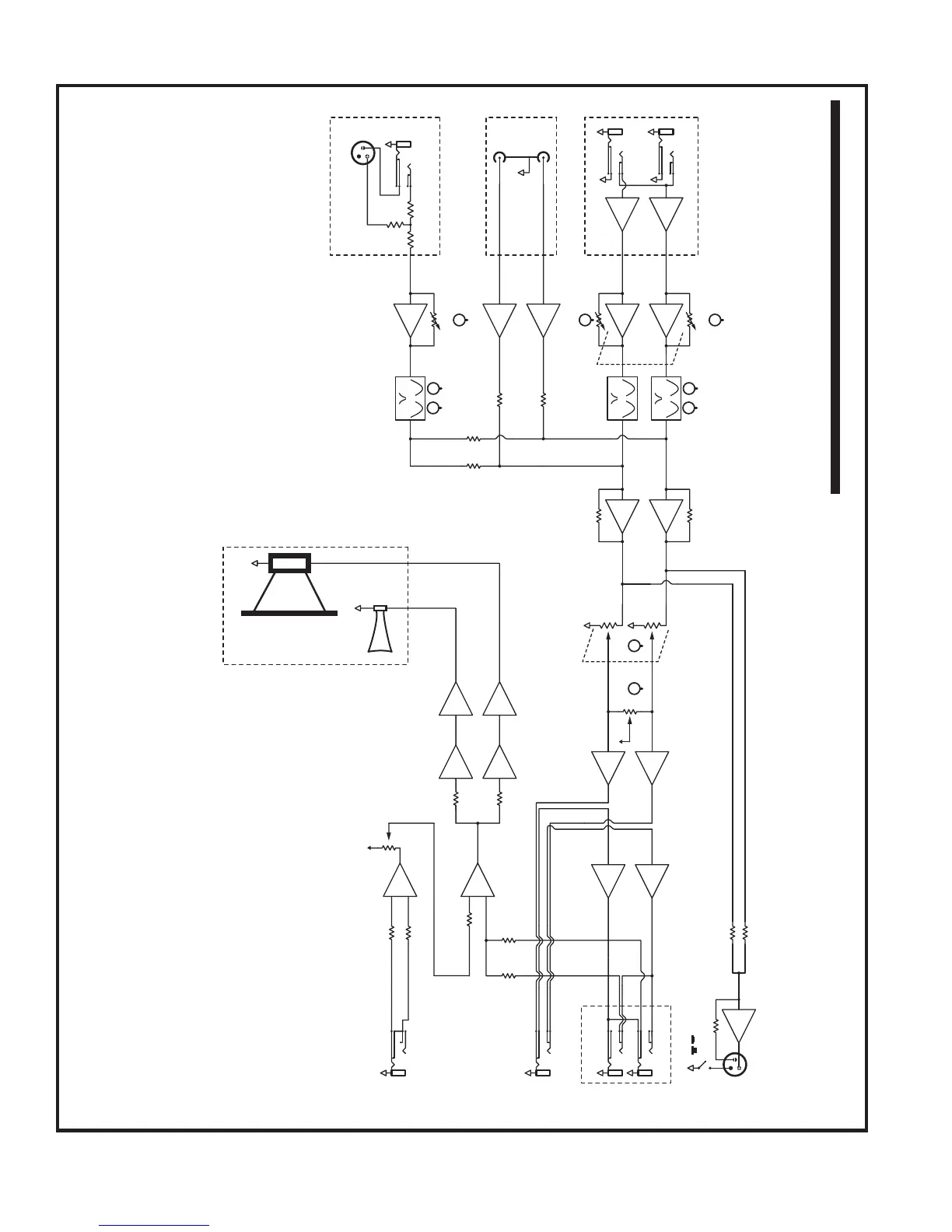

Block Diagram for
Keymaster K1
D E S I G N E D & M A N U FA C T U R E D B Y Y O R K V I L L E S O U N D
Woofer
Tweeter
Line Out
Link Out
Link In
Stereo Phones
(T=Left / R= Right / S= Gnd)
Monitor In
GND Lift
L Gain
Input Channel 1
L R
RCA
Input
AUX Input
In L/Mono
In R
R Gain
Gain
Bass/Treble
EQ
Bass/Treble
EQ EQ
Input Channel 2
XLR
1/4-inch
1/4-inch 1/4-inch
Master
Gain
Left Bus
Right Bus
Pan (Ch1)
L R
HP HP
LF
AMP
HF
AMP
+
-
-
+
BLOCK-DIAG-K1-00-1v0.ai
