TREELINE FDRP600AS - Page 7

2 nd
3 rd
1 st
6

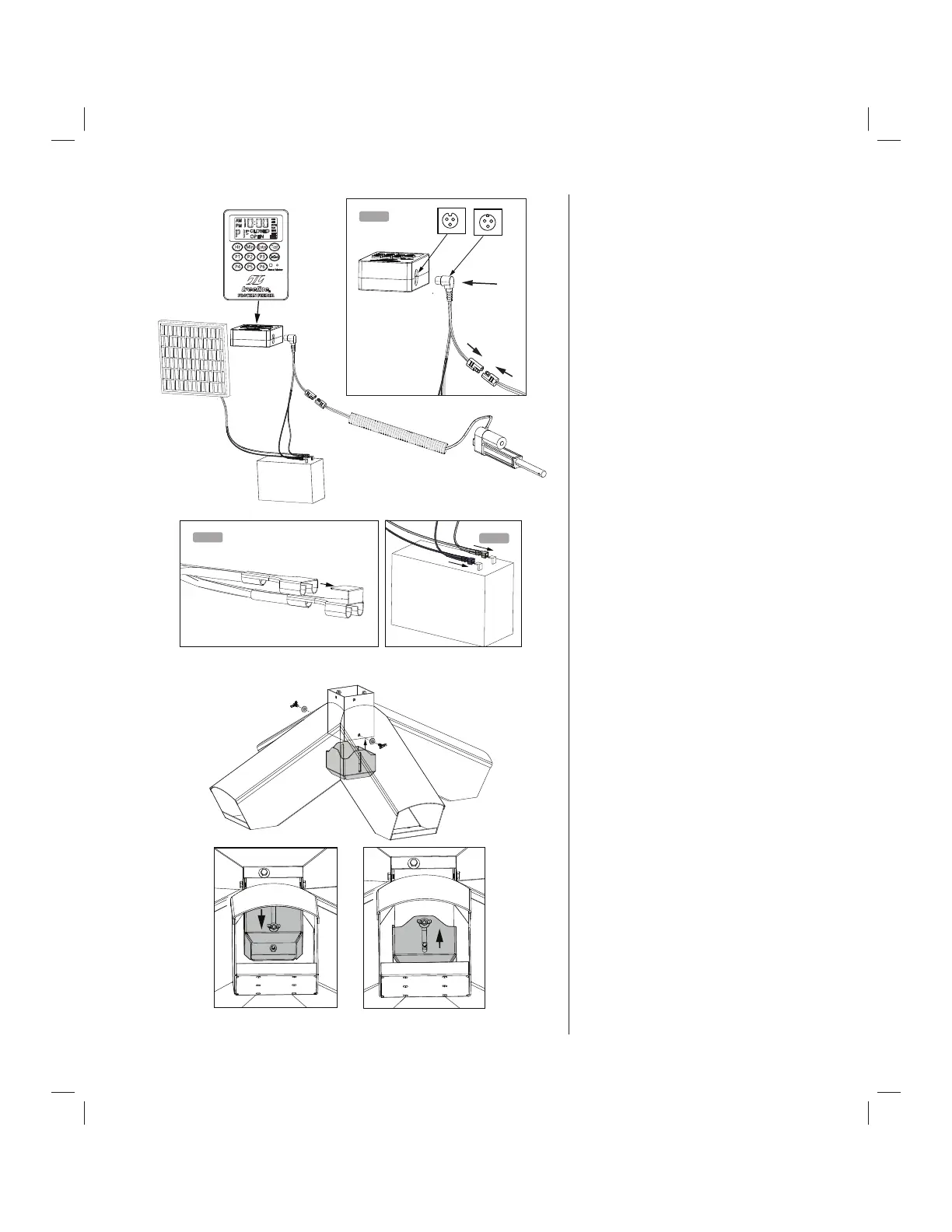

Step 7
Connect wire (from actuator) to
timer plug wire and insert plug
into timer.
Attach red piggyback connector
from timer to red connector from
solar panel together. Then attach
black piggyback connector from
timer to black connector from
solar panel together.
Attach red connectors to (+)
positive terminal on battery and
attach black connectors to (-)
negative terminal on battery.
Step 8
If feeding with corn, install
adjustable collar inside feeder tube
assembly using two pre-installed
wing bolts and washers. Adjust
collar up or down for proper
amount of feed.
Note: A test wire is included with
your product for troubleshooting
purposes only. DO NOT attach the
test wire during this time. Please
follow the TROUBLESHOOTING
INSTRUCTIONS for the test wire.
