Muse GP minipool
Installation

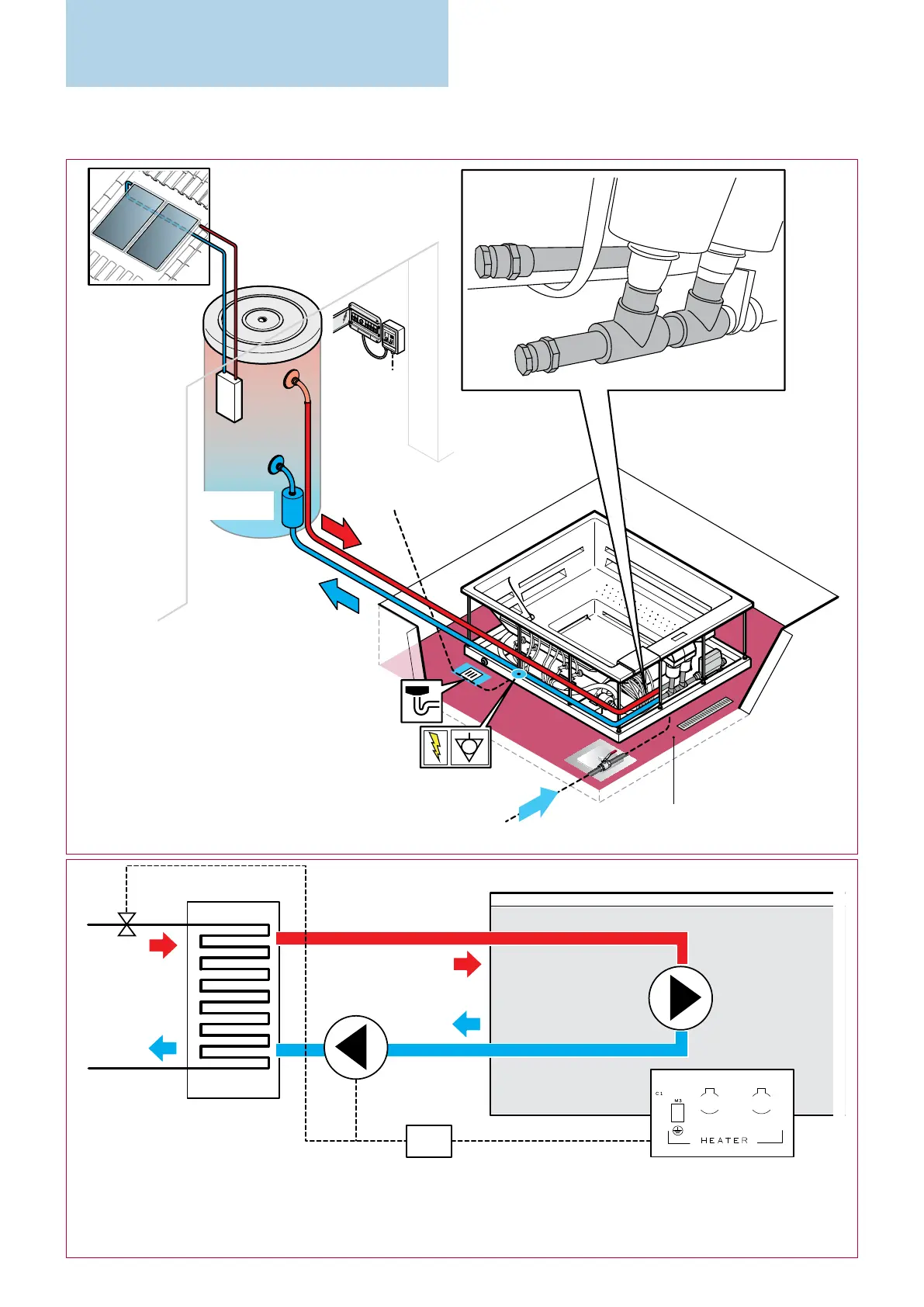

PREPARATION OF CONNECTION TO AN OPTIONAL EXTERNAL EXCHANGER (NOT SUPPLIED)
IN
OUT
IN
IN
OUT
Electrical connection
Exchanger
(not supplied)
Circulator
(not supplied)
Room for
the electrical
connections
Drain
Water
supply
Technical
inspection port
IN: incoming
hot domestic
water
OUT: outgoing cold
water
230V
C
S
P
in
out
PR
EV
P2
BL 1
BL2
HTR
Cromo
230V~
EVc
EVs
EVclv
+
-
J49J48
230V: heater/exchanger control cable
C: switch (recommended)
OUT: outgoing cold water
P: circulator (not supplied)
PR: recirculation pump
S: exchanger (not supplied)
The exchanger
means the
device that
heats water (in
this manual, it is
represented by a
boiler connected
to the solar
panels)
Inlet connection:
1”1/4 female
If no heater is required,
disconnect pin J44
The circulator must be
installed according to
the characteristics of the
domestic system (head,
length, etc...) and the water
content (in litres)
Outlet connection:
1”1/4 female
