Muse GP minipool
Installation

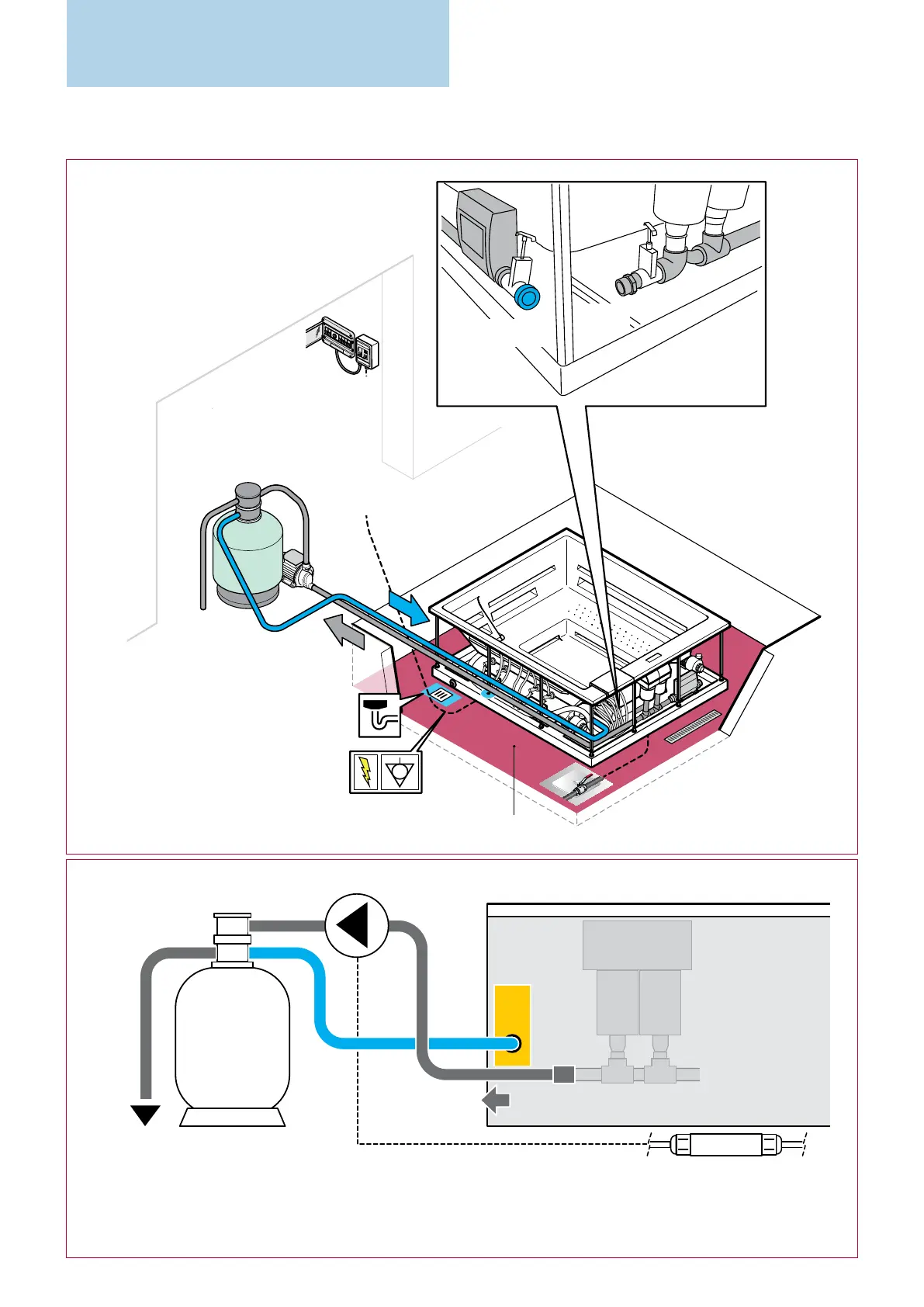

ARRANGEMENT FOR CONNECTION TO AN OPTIONAL OUTDOOR SPA PACK
IN
OUT
IN
OUT
Electrical connection
Room for
the electrical
connections
Drain
Technical
inspection port
IN: water
inlet
OUT: water
outlet
230V
IN
PR
F
C
CP
230V: circulator control cable
OUT: water outlet
IN: water inlet
PR: recirculation pump
F: lter
C: control unit
Inlet connection:
1”1/4 female
The circulator must be
installed according to
the characteristics of the
domestic system (head,
length, etc...) and the water
content (in litres)
Outlet connection:
1”1/4 female
