Brake/shi routing — mechanical (continued)
Route the shift cables
1. Mark the rear shift cable with a marker. You will
need to tell the cables apart when you assemble the
headset.

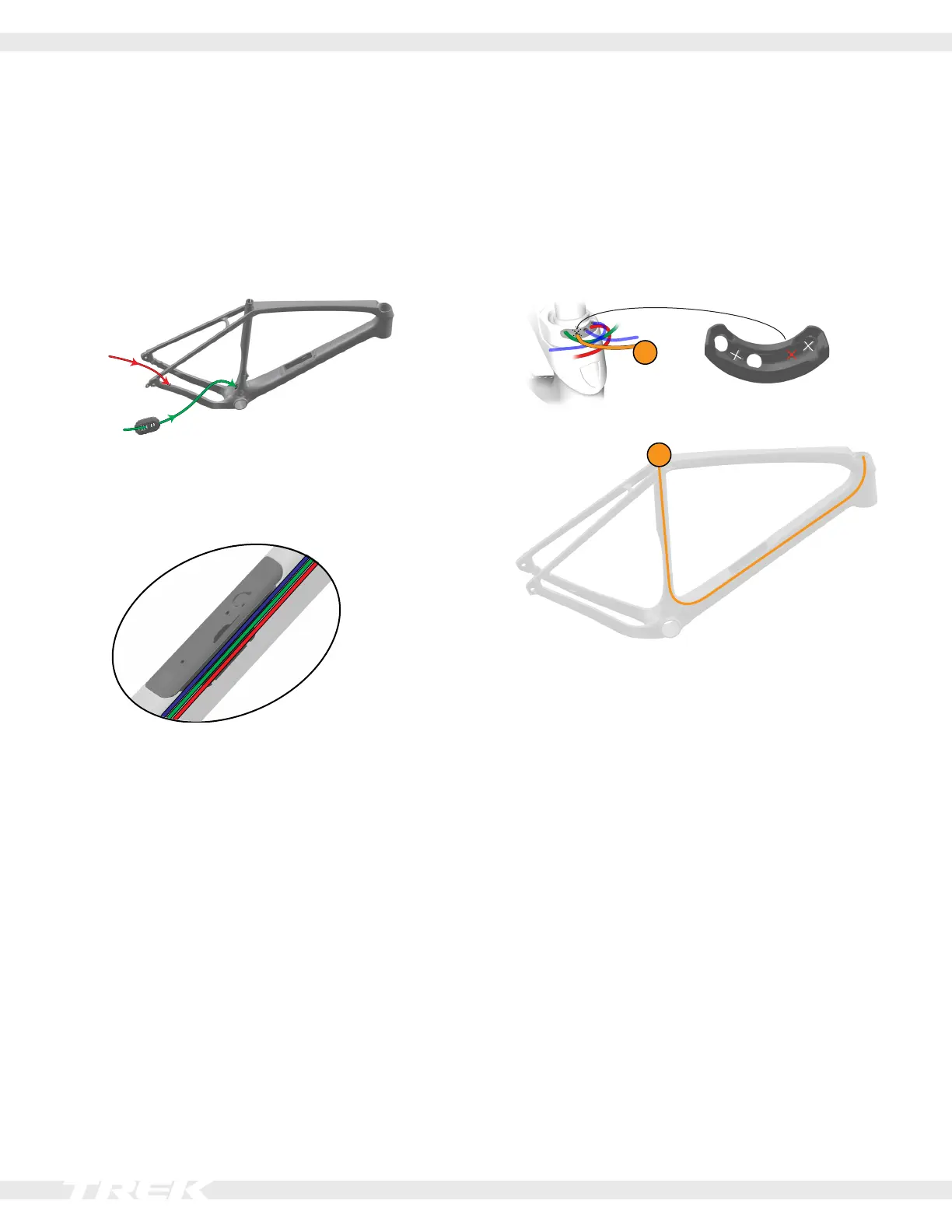

2. Route the front derailleur shift cable through the
grommet (3). Route both shift cables through the
frame as shown.
3. Attach the derailleurs to the bicycle.
4. Connect the shift cables to the derailleurs.
5. Zip tie the shift cables and rear brake hose to the
outside of the storage door frame.
Dropper post cable routing (SL only)
Cut out a hole in the outer dimple on the back of the
routing cap grommet. Route the dropper post cable to the
handlebars as shown below.
NOTE: A dropper post is not compatible with the SLR
model due to the seat mast system.
