Trek 2022 CHECKPOINT SL - Brake routing - eTap; Route the brake hoses

2022 Checkpoint SL/SLR
4

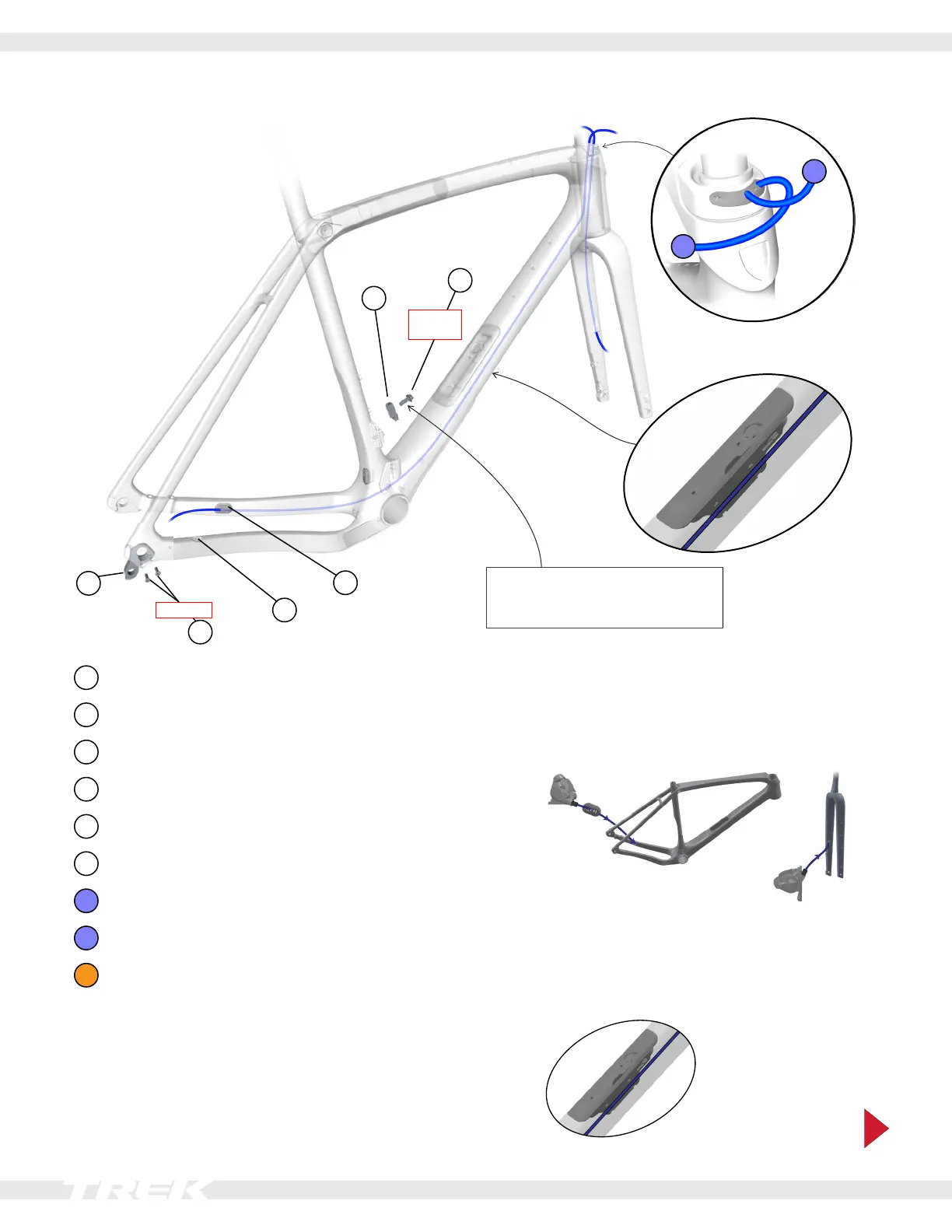

Brake routing — eTap
7
4
3
8
1
2-3Nm
2




5
6
6.5Nm
max
NOTE: Tighten the front derailleur
bolt (6) to the manufacturer’s
specications.
1 Rear derailleur hanger — W524188
2 Rear derailleur hanger bolts — W524884
3 Plug — W330578
4
Housing grommet — W330578
5
Front derailleur washer — W531901
6 Front derailleur bolt — W543903
7
Front brake hose
8
Rear brake hose
9
Dropper post cable
Route the brake hoses
1. Connect the calipers to the brake hoses.
2. Route the rear brake hose through the grommet (4).
Route both brake hoses as shown.
3. Attach the calipers to the chainstay and fork. Do not
fully torque the mounting bolts until the calipers are
aligned correctly.
4. Zip tie the rear brake hose to the outside of the
storage door frame.




