Drivetrain: align belt

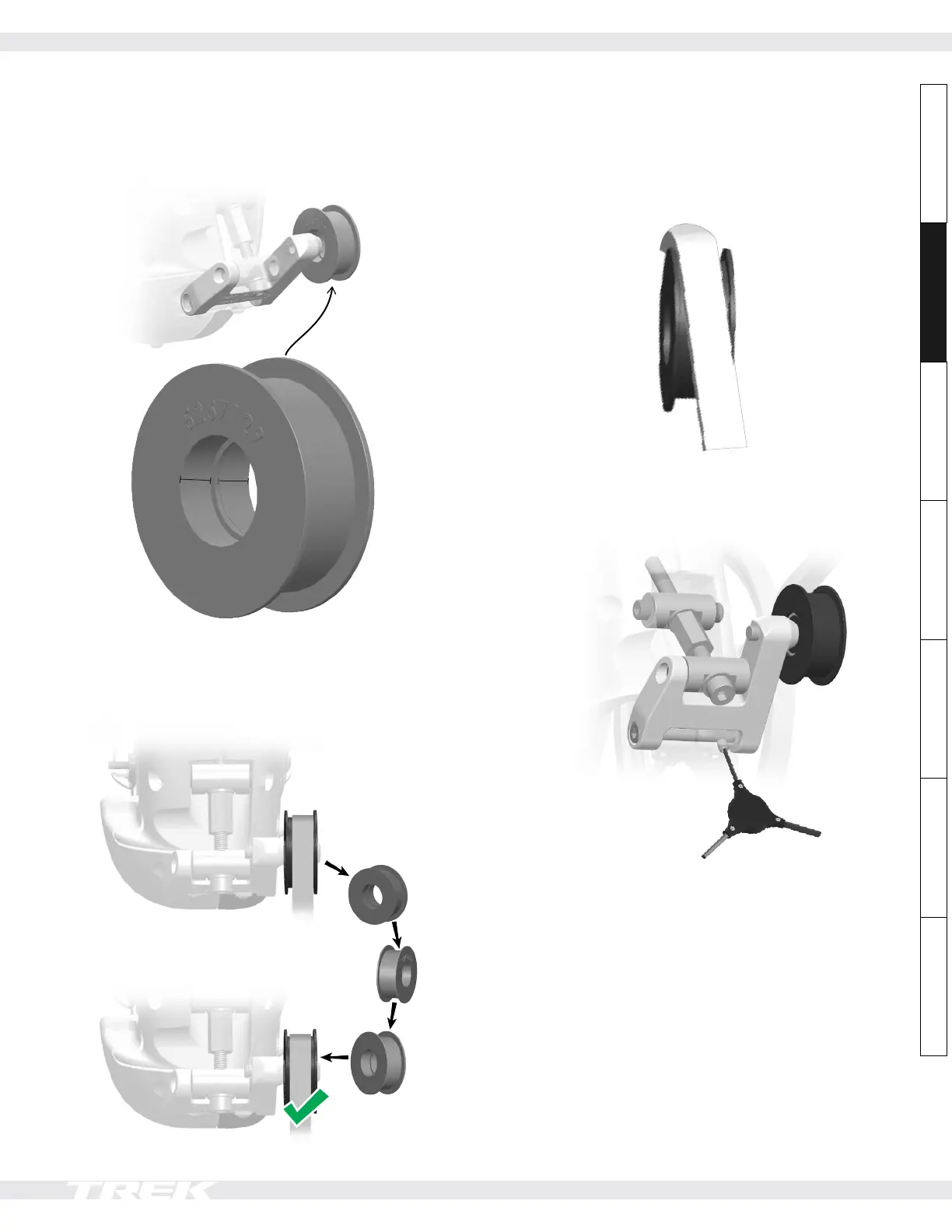

Center the belt on the belt roller
The notch in the middle is slightly off-center.
8.2mm
8.7mm
N
a
r
r
o
w
W
i
d
e
The belt may become off-center in the belt roller over time.
If the belt continually touches the outer belt roller edge
while pedaling, ip the belt roller around 180°. This moves
the belt roller 0.7mm outward.
Adjust the belt angle
The belt roller should be parallel to the belt. If the belt
roller gets out of alignment, tighten or loosen the set screw
(5). This adjusts the angle of the tensioner arm.
1. Tighten or loosen the set screw until the belt is
parallel to the belt roller.
2. Verify the belt tension and adjust, if necessary (see
page 8).
