Trek Fetch+ 4 - Page 13

2023 Fetch+ 4
10
Steering Dr ivetrain Routing Battery Headsets Frame Accessor ies
Routing: rear
Standard
setup
Bosch smart
system setup
9
11
10
3
6
9
11
10
3
12
2
1
3
4
5
6
7
8
4
11
11
12
9
15
4Nm
14
13




5
6
7
16
9
5
6
4
8
7
7
17
1

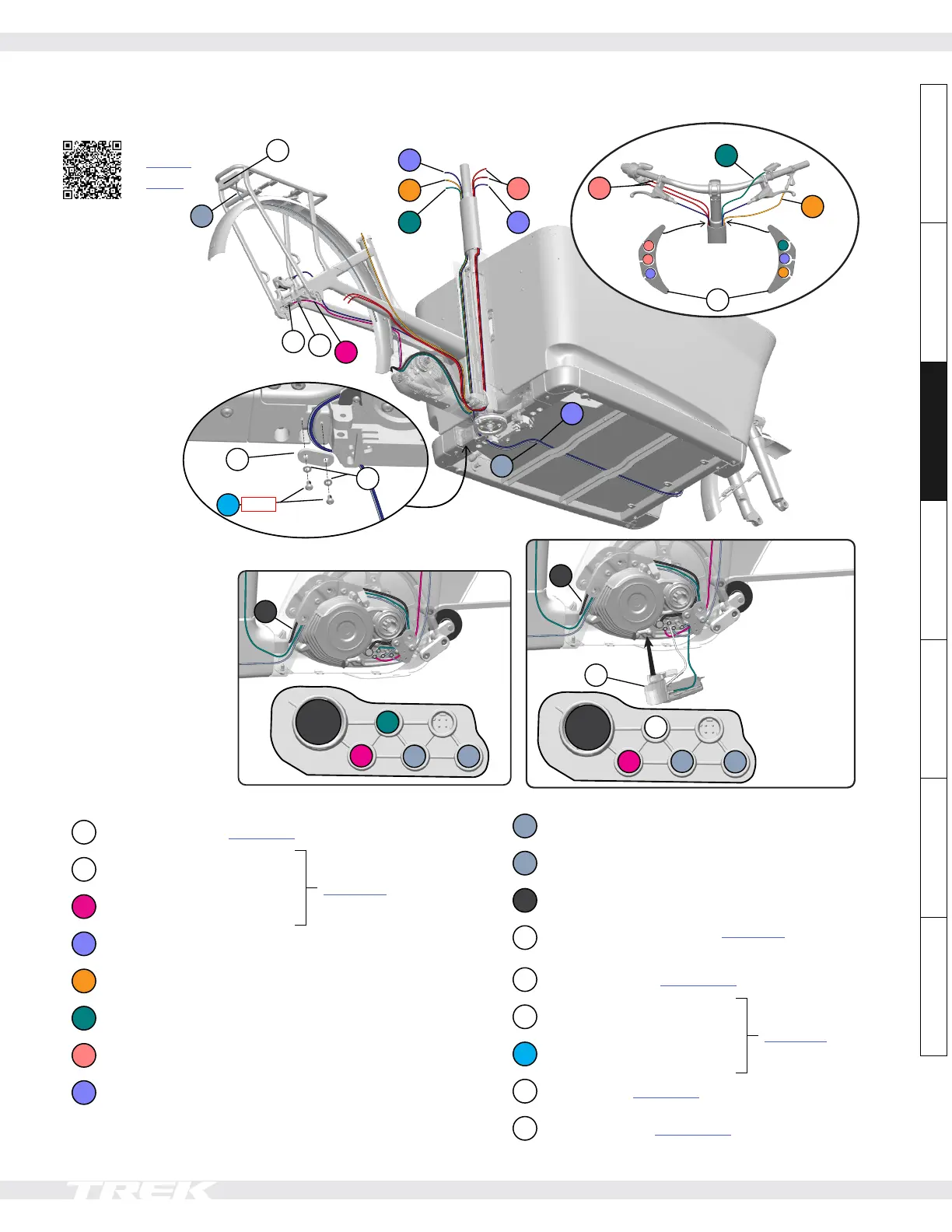

Cable manager — W316706
2
Bolt (M4x6mm)
5284750
3
Speed sensor and wire
4
Front brake hose
5
Dropper post cable
6
Remote wire
7
Shift cables
8
Rear brake hose
9
Front light wire
10
Rear light wire
11
Drive unit cable
12
Bosch Connect Module — 5282027
Europe and North America only
13
Cable bracket — W5290750
14
Washers (M5)
5304416
15
Bolts (M5x10mm)
16
Rear light — W504513
17
Cable guides — W5309355
Click
here
Or
