Trek Fetch+ 4 - Page 22

2023 Fetch+ 4
19
Steering Dr ivetrain Routing Battery Headsets Frame Accessor ies

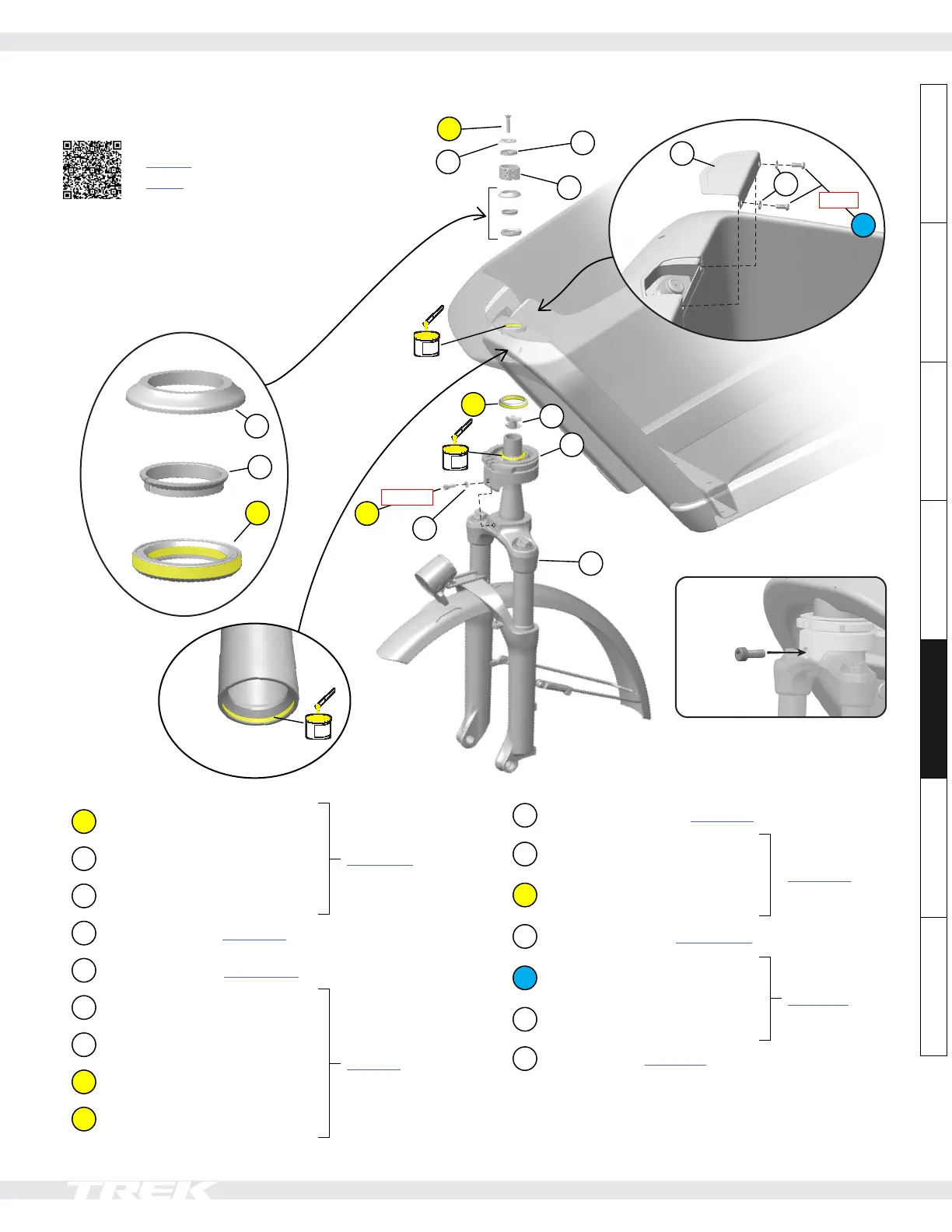

Headsets: front assembly
11
7
2.5Nm
12
13
1
8
9
6
2
3
4
5
10
8Nm
14
15
16
Install bolt
(12) last
1
Compression bolt (M6x35mm)
W545877
2
Top cap
3
Compression nut (1 1/8”)
4
Spacer (5mm) — 5253928
5
Headset collar — W5257186
6
Bearing cover
426180
7
Compression ring
8
Headset bearing (upper)
9
Headset bearing (lower)
10
Front steering disc — 5284720
11
Washer (M5)
5305201
12
Bolt (M5x14mm)
13
Suspension fork — W5266799
14
Bolts, T40 drive (M8x20mm)
5284749
15
Washers (M8)
16
Headset lid — 5280797
