Trek Powerfly FS 4 - Active Braking Pivot (ABP)

2023 Powery FS
2

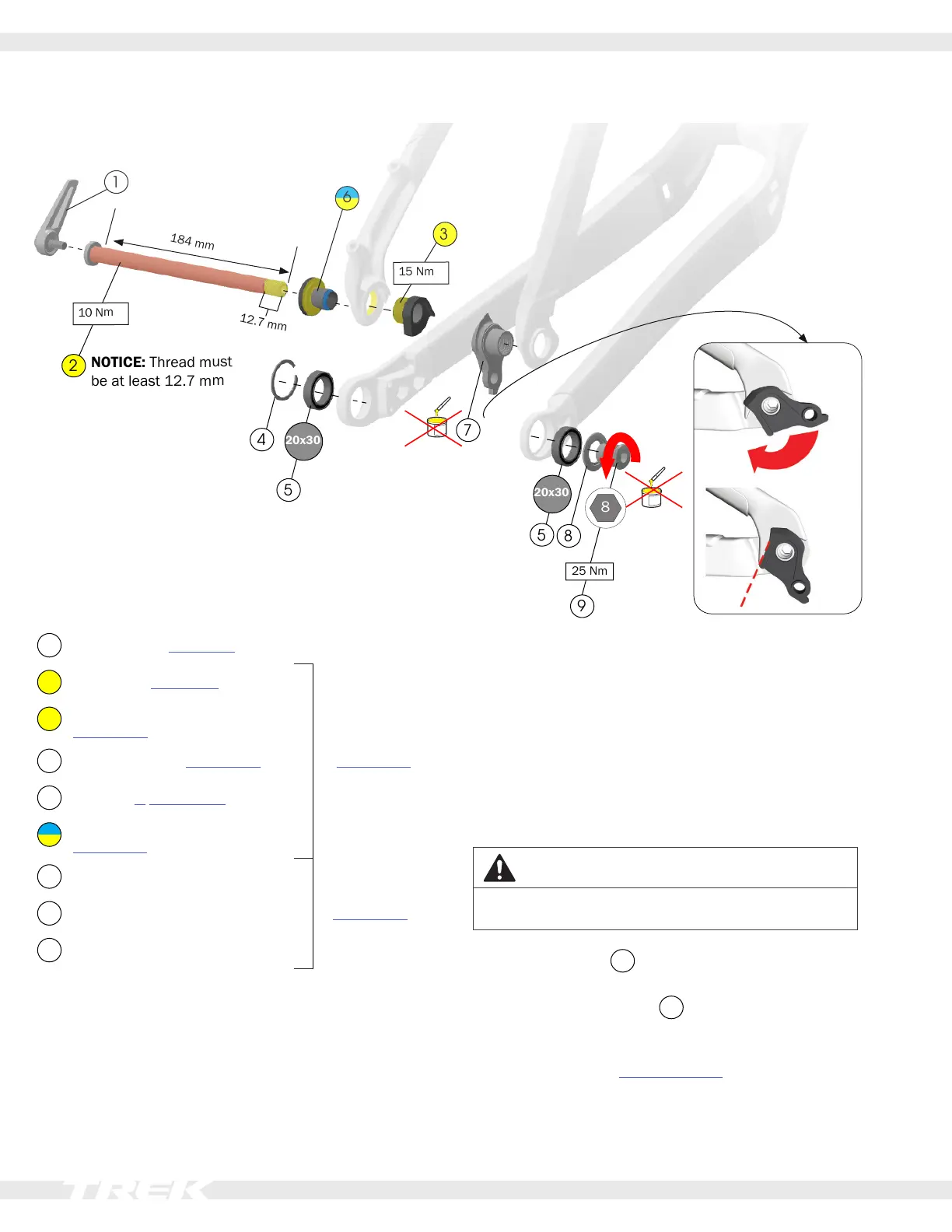

Active Braking Pivot (ABP)
4
184 mm
3
NOTICE: Thread must
be at least 12.7 mm
6
2
15 Nm
10 Nm
1
12.7 mm
5
20x30
20x30
7
8
9
25 Nm
8
5
1
Switch lever – W573860
2
Thru axle — W583469
— W5272776
3
Non-driveside ABP dropout nut —
W5269707
4
Retaining ring — W5251279
5
Bearings — W5256340
6
Non-driveside ABP bolt —
W5251141
7
Dérailleur hanger
— W5271425
8
Washer
9
Bolt (left-hand thread)
Tools
• Bearing press, 20x30 drift
• Cassette lock ring tool
• Grease
• 8mm hex tool
• Torque wrench (left-hand thread) with 8 mm hex bit
This bicycle frame is designed to use a Universal Derailleur
Hanger (UDH).
WARNING
Do not apply grease to the derailleur hanger or bolt. Only
apply grease to the thru axle.
NOTICE: The washer
8
is frame-specic. Install only the
washer compatible with your frame.
NOTICE: Do not over-tighten
9
. Over-tightening the bolt
could cause the hanger to break.
For additional information about the UDH, refer to the
SRAM user manual at www.sram.com.
