Trek Powerfly FS 4 - Rocker pivot and seat stay

2023 Powery FS
3

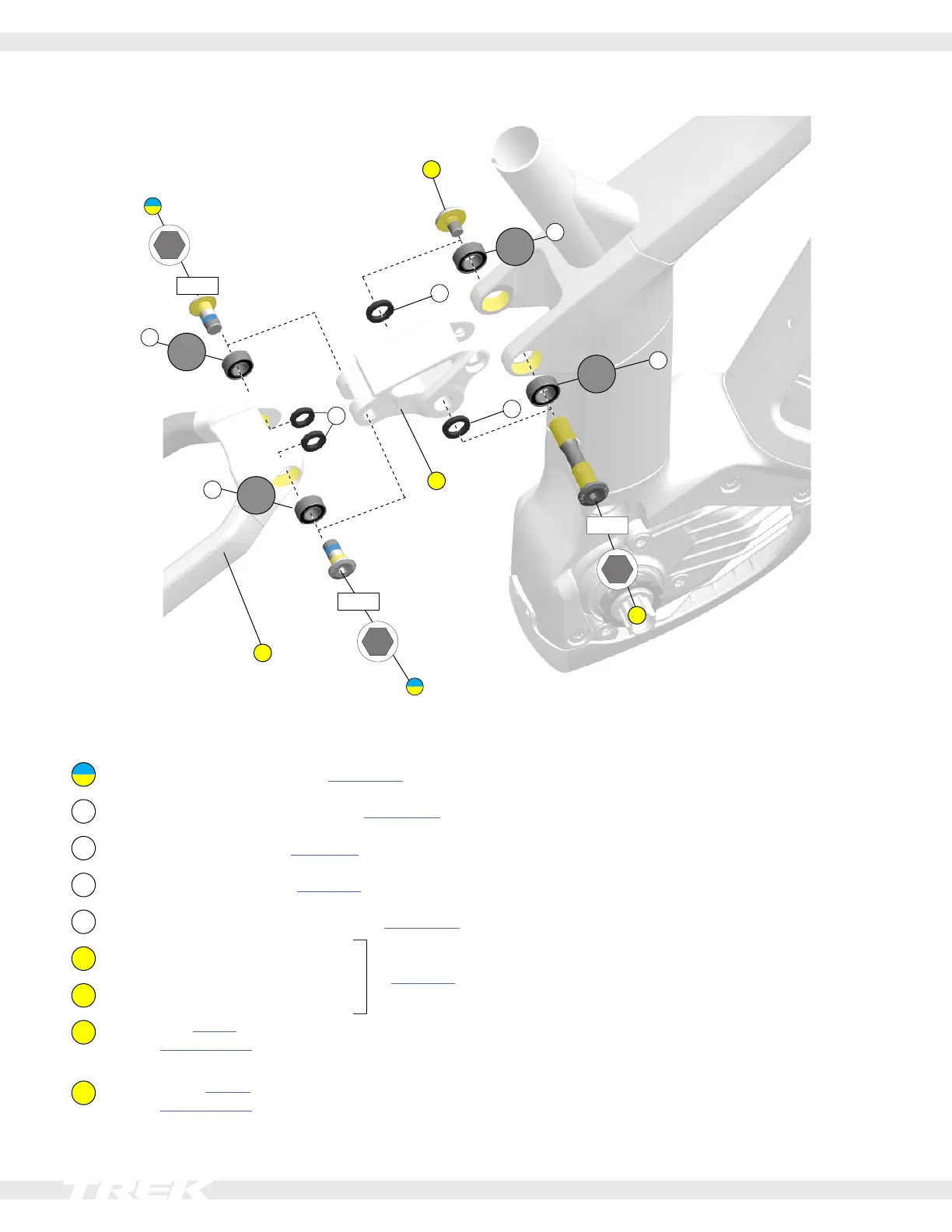

Rocker pivot and seat stay
4
8
2
10x19
9
17 Nm
1
3
9
2
10x19
17 Nm
9
1
12x21
12x21
5
5
4
5
7
17 Nm
6
1
Seat stay bolts, M10 x 21 mm — W1051358
2
Seat stay bearings, 10 x 19 x 8 mm — W5256339
3
Spacers, 16 x 10 x 3 mm – W529969
4
Spacers, 18 x 12 x 3 mm — W574 411
5
Rocker pivot bearings, 12 x 21 x 8 mm — W5256341
6
Rocker pivot axle nut, M8 x 11 mm
— 5256640
7
Rocker pivot axle, M16 x 83 mm
8
Seat stay — 44376
Search trekbikes.com to nd the colour-matched part
for your bike.
9
Rocker link — 33983
Search trekbikes.com to nd the colour-matched part
for your bike.
Tools
• Bearing press, 10 x1 9 and 12 x 21 drifts
• 5 mm and 9 mm hex wrenches
• Torque wrench with 5 mm and 9 mm hex bits
