-6-
Router Table for the Craftsman
H
G1
I
G1
I
H
G2
H
A1A1
A2
B
C
B
CC

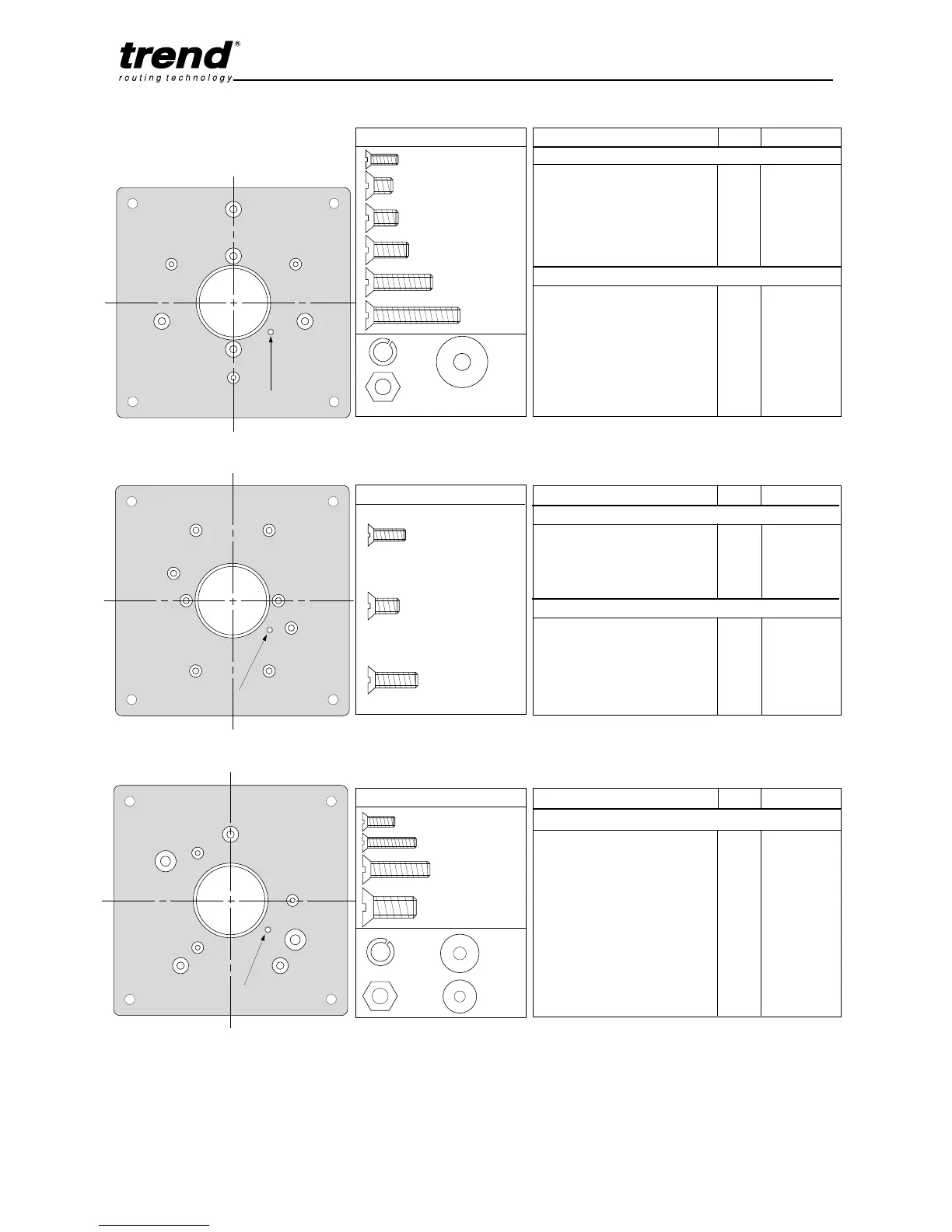

CRT/PLATE A (inc. Fixing Pack) supplied with Router Table CRT/A
Fixing Pack Router Models Holes Fixings
Following models will fit insert plate
Elu MOF 69, 96(E) Mk 2 A1 M6 x 10
Elu OF97(E)
●
A1 M6 x 16
Elu MOF 131, 177(E) A1, A2 M6 x 12
Bosch POF 52,400,500A,600ACE
●
B M6 x 12
Bosch GOF 1600A, 1700ACE A1, A2 M6 x 12
Black & Decker
BD780(E), KW780(E)
C M4 x 12
Dewalt DW613 A1 M6 x 10
Require re-drilling of router base, see Section E
Elu MOF 96(E) Mk 1* B M6 x 25
▲
Black & Decker SR100* B M6 x 25
▲
AEG OFS450S, OFS50, OFS720 &
OFSE850* B M6 x 25
▲
Metabo OF1028
◆
, OFE1229
◆
A1 M6 x 35
▲
Perles OF808, Stayer PR50* B M6 x 25
▲
Ryobi R500
◆
, R502
◆
A1 M6 x 35
▲
Kango R8550S, Holzher 2335, 2355 B M6 x 25
▲
Virutex FR77C, 78C B M6 x 35
▲
Fixing Pack
Threaded hole
for Lead-On pin
Router Models Holes Fixings
Following models will fit insert plate
Black & Decker BD66
◆
G1 M4 x 12
G2 M4 x 20
Bosch GOF 900A, 900ACE H M6 x 35
■
Ryobi RE600N
◆
, R600N
◆
I M8 x 20
CRT/PLATE C (inc. Fixing Pack) supplied with Router Table CRT/C
Spring
washer
(3)
M6
nut
(3)
3/4"x1/4"
Packing
Washer
(9)
6mm
Washer
(3)
M4 x 12mm (2)
M4 x 20mm (1)
M6 x 25mm (3)
M8 x 20mm (2)
E
DD
D
E
FF
D
Fixing Pack
Threaded hole
for Lead-On pin
CRT/PLATE B (inc. Fixing Pack) supplied with Router Table CRT/B
M4 x 12mm (4)
M5 x 10mm (4)
M5 x 16mm (2)
*
see page 33
3/4"
x1/4"
Washer
(3)
M6 nut
(3)
Spring
washer
(3)
Threaded hole
for Lead-On pin
◆
Remove plastic base of router before fitting router to insert plate
▲
Requires fitting of washer, spring washer and nut
●
Requires user made packing piece/gasket, please see end of
section D.4.(i) on page 8
■
Requires fitting of washer, spring washer, nut and three
3/4"x1/4" packing washers which are placed between
plate and router base for each fixing
M4 x 12mm (3)
M6 x 10mm (2)
M6 x 12mm (3)
M6 x 25mm (3)
M6 x 16mm (3)
M6 x 35mm
(3)
Router Models Holes Fixings
Following models will fit insert plate
Hitachi M8
◆
, M8V
◆
D M5 x 10
Peugeot DF55E, DEF570E E M5 x 16
Ryobi RE120, R150, R151 E M5 x 16
Makita 3620 F M5 x 16
Require re-drilling of insert plate, see Section F
Hitachi TR12
◆
- M5 x 10
(see page 30)
Ryobi R600
◆
, RE600
◆
- M4 x 12
(see page 31) - M5 x 16
