Fitting Template Guide Bush
and Inner Plate
The routers have a unique built-in line up
system for the template guide bush. This
system ensures that the guide bush is exactly
concentric to the router cutter to ensure
accurate work.

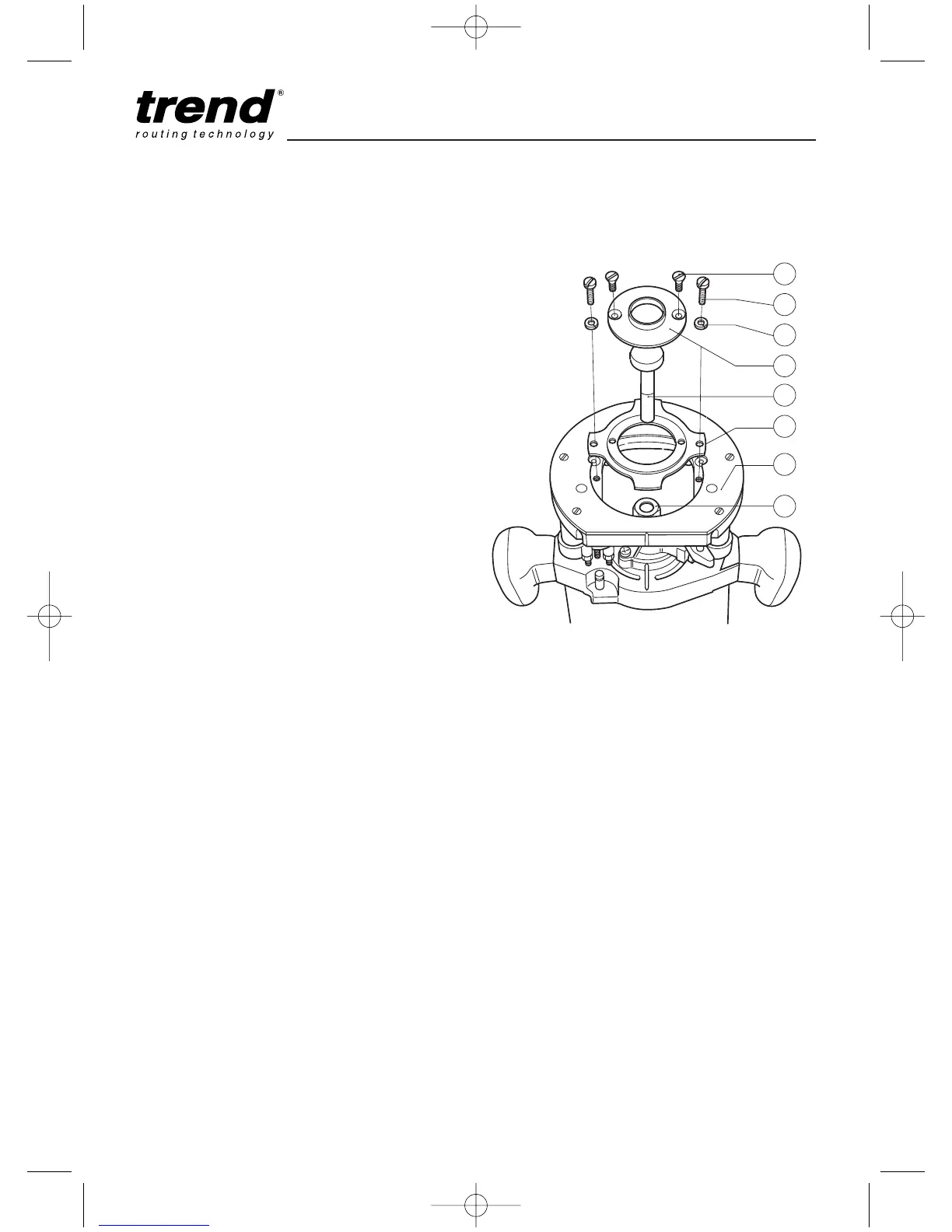

I Turn the router upside down.
I Fit inner plate (2) into the recess in the router
base plate (1). For T10 the bushes on the
inner plate must be towards the router motor.
For T11 the raised side of the inner plate must
be away from router base. Loosely fit the two
pan head machine screws (3) through the
inner plate and into the tapped holes. For
T11 also use split spring washers (4) under
the head of the machine screws (3).
DO NOT TIGHTEN SCREWS.
I Fit the 30mm template guide bush (6) to the
inner plate (2). Fit guide bush with the two M5
countersink machine screws (7). Tighten
these screws.
I The line up pin (5) is stepped for 12mm and
1
/2” collet (8) sizes. (For the
1
/2” collet simply
push the line up pin further down into the
1
/2”
collet).
I Fit line up pin (5) into the
1
/2” collet (8) (or
12mm depending on the size fitted) in the
router, lightly tighten collet nut to hold the line
up pin (5).
I Release plunge lever and gently depress
base until line up pin (5) projects through the
30mm guide bush (6).
I Once in line, tighten the pan head machine
screws (3) with a flat screwdriver.
T10 & T11
