© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TEW-804UB
5
7. Close your computer case
8. Power on your computer and wait until the Windows desktop appears
9. Your computer will detect the adapter and will automatically install the drivers.

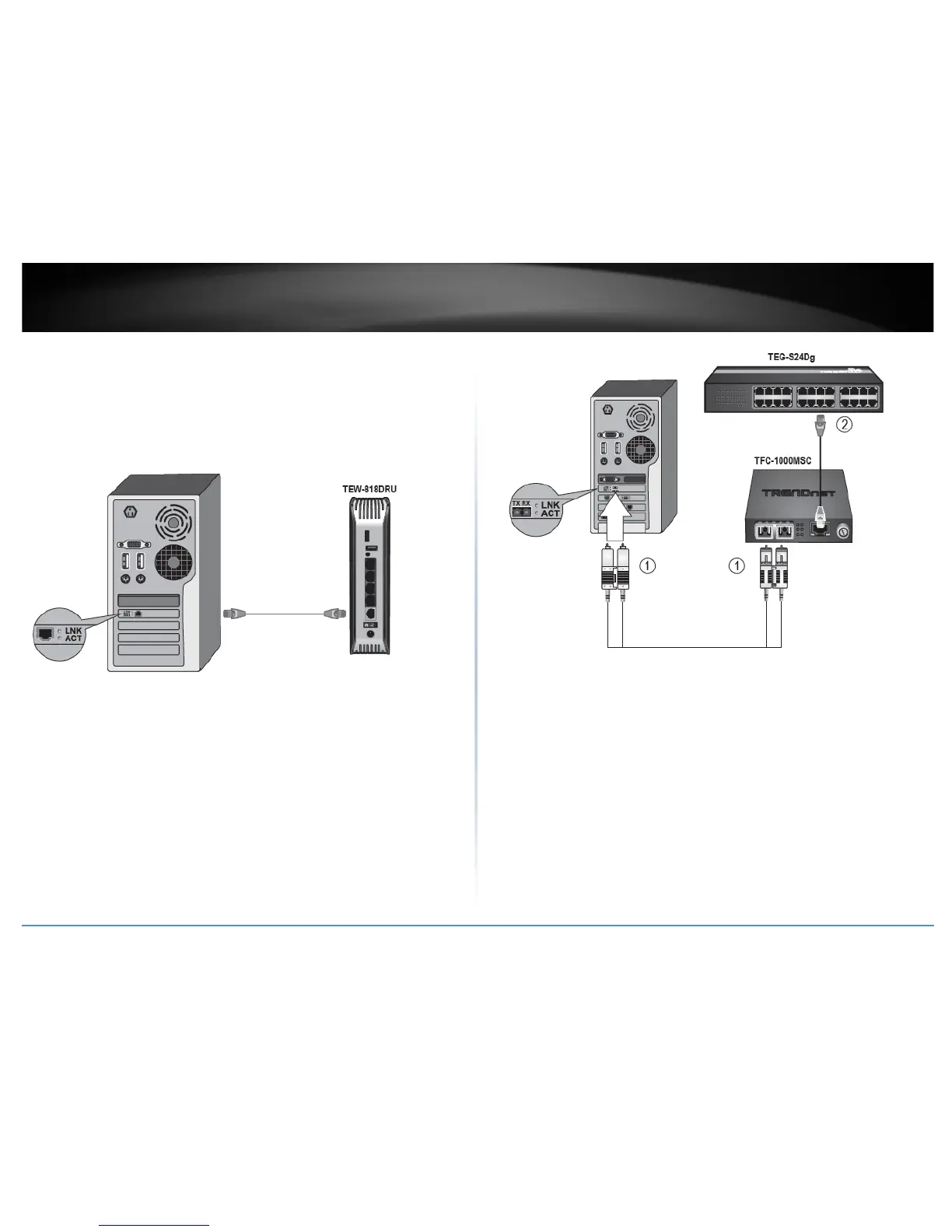

Connecting the TEG-ECTX to your network
1. Connect a Cat. 5e or Cat. 6 network cable from the TEG-ECTX adapter to an available
Gigabit port on your Gigabit switch or router (e.g. TEW-818DRU).
Connecting the TEG-ECSX to your network
1. Connect a SC-type multi-mode cable from your TEG-ECSX adapter to a Gigabit multi-
mode fiber device (e.g. TFC-1000MSC fiber converter.
2. Connect a Cat. 5e or Cat. 6 network cable from your Gigabit multi-mode fiber
converter to a Gigabit port on your switch (e.g. TEG-S24Dg).
Note: The TX and RX cables must be reversed on the opposite fiber connection.
Connecting the TEG-ECSFP to your network
1. Insert a TRENDnet SFP module into the TEG-ECSFP adapter.
2. Connect a fiber cable from the adapter to a fiber device with a TRENDnet SFP module
(e.g. TFC-1000MGB fiber converter with a TEG-MGBS10D3 + TEG-MGBS10D5).
3. Connect a Cat. 5e or Cat. 6 network cable from the multi-mode fiber converter to a
Gigabit port on your switch or router.
