© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TEW-804UB
6
Note:

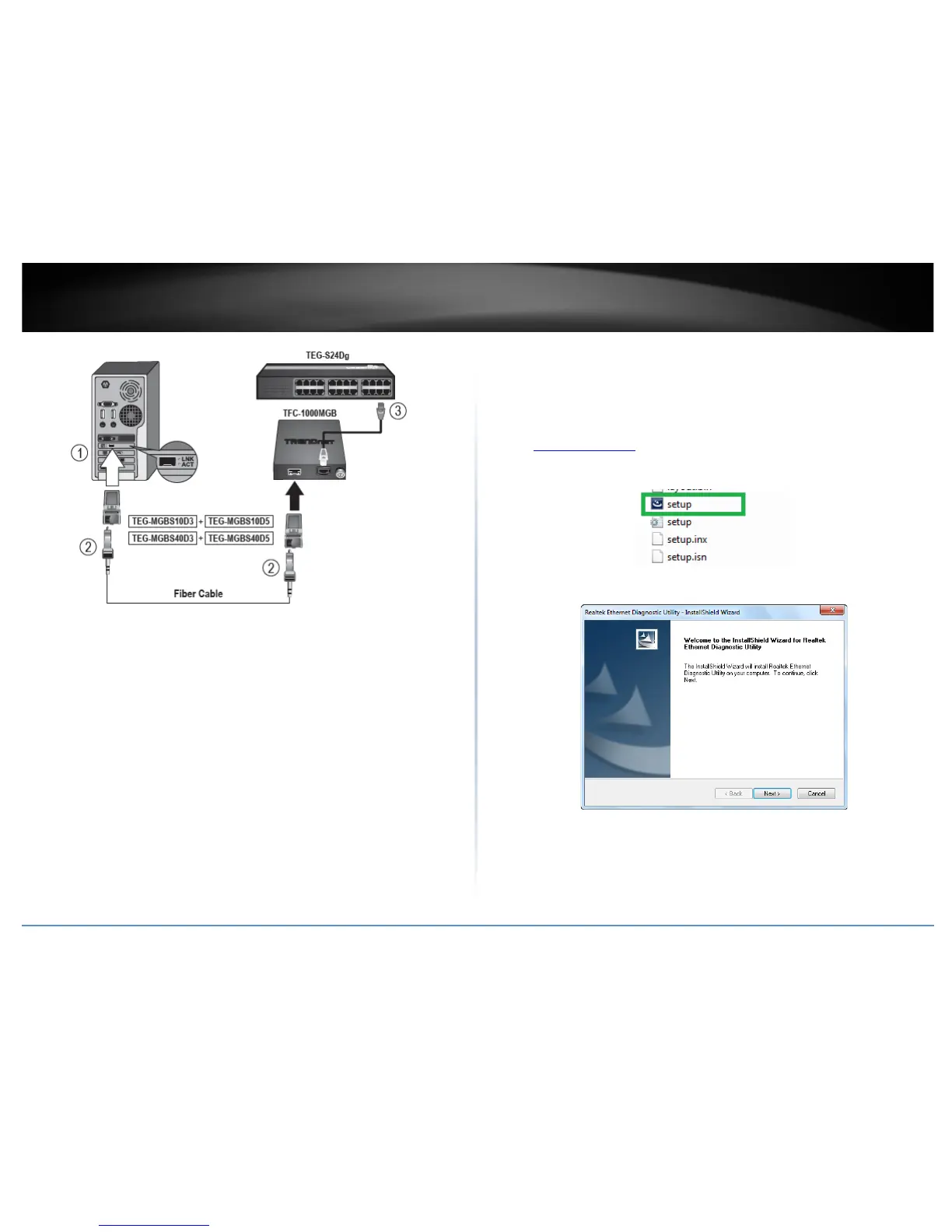

1. The TX and RX cables must be reversed on the opposite fiber connection when using the TEG-
MGBSX / TEG-MGBS10 / TEG-MGBS40 / TEG-MGBS80 SFP modules.
2. Cabling
• Multi-Mode Fiber Optic Cable: TEG-MGBSX
• Single-Mode Fiber Optic Cable: TEG-MGBS10 / TEG-MGBS40 / TEG-MGBS80
• Single Strand Fiber Optic Cable: TEG-MGBS10D3 / TEG-MGBS10D5 / TEG-MGBS40D3
/ TEG-MGBS40D5
Using the diagnostic utility
The Diagnostics Utility is a Windows platform application and is only available for
Windows Vista. It provides General Information, VLAN ID settings, Driver property
settings, Diagnostics function, Statistics, Cable analysis, and Wake On LAN function.
1. Visit
www.TRENDnet.com to save and download the diagnostic utility in the product
download page.
2. Once the download is completed, unzip the file and double click on setup.exe icon.
3. Click Next to continue the installation.
To Next Page
