TRENDnet TEW-711BR Quick Installation Guide

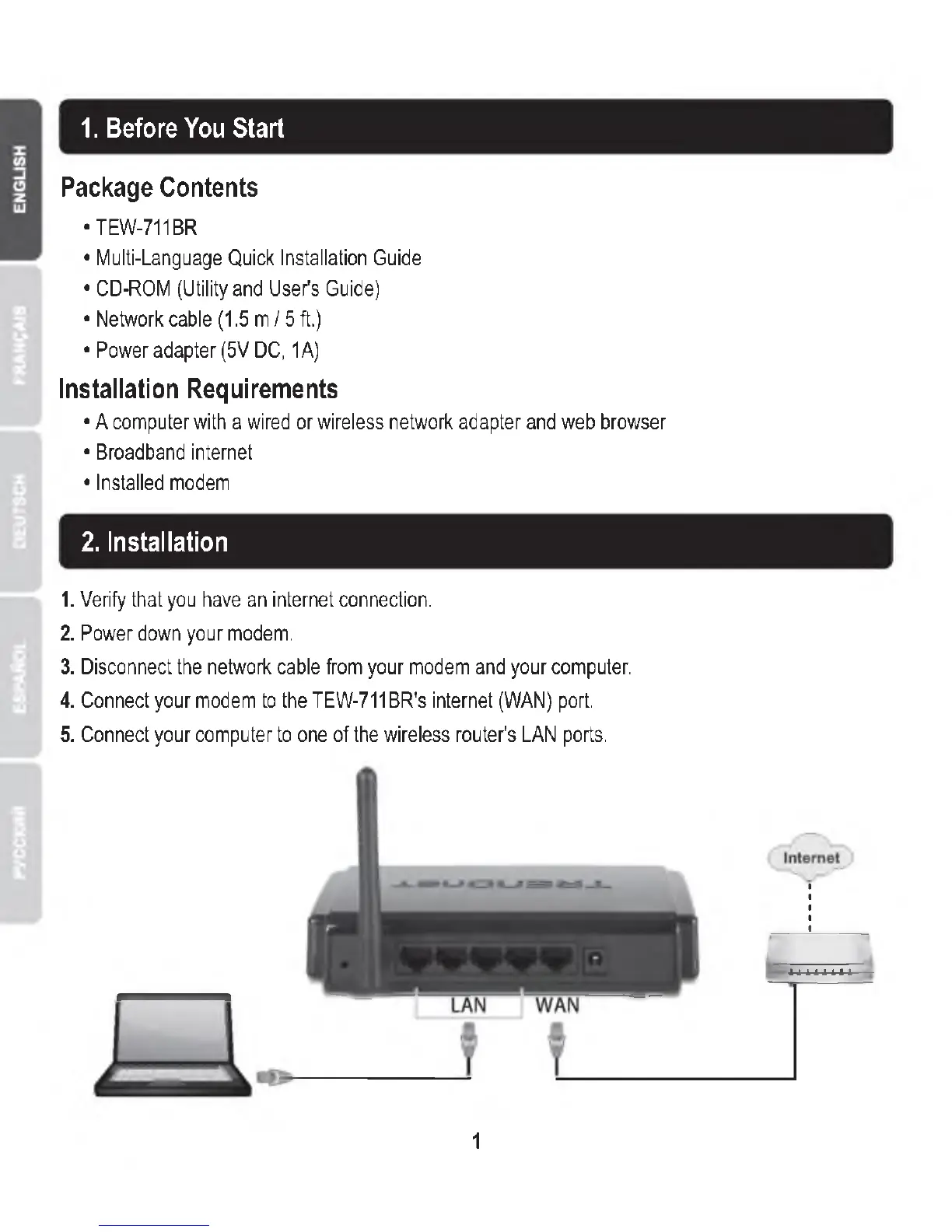

1. Before You Start
Package Contents
• TEW-711BR
• Multi-Language Quick Installation Guide
• CD-ROM (Utility and User's Guide)
• Network cable (1.5 m / 5 ft.)
• Power adapter (5V DC, 1A)
Installation Requirements
• A computer with a wired or wireless network adapter and web browser
• Broadband internet
• Installed modem
2. Installation
1. Verify that you have an internet connection.
2. Power down your modem.
3. Disconnect the network cable from your modem and your computer.
4. Connect your modem to the TEW-711BR's internet (WAN) port.
5. Connect your computer to one of the wireless router's LAN ports.
1

TRENDnet TEW-711BR Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3az, IEEE 802.3u
Receiver sensitivity	802.11b: -85dBm @ 11Mbps 802.11g: -68dBm @ 54Mbps 802.11n: -62dBm @ 150Mbps
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Modulation	16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, QPSK
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Channels quantity	13 channels
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Maximum indoor range	100 m
Maximum outdoor range	300 m
WLAN data transfer rate (max)	150 Mbit/s
Input current	1 A
Rack mounting	No
Frequency band	2.4 GHz
Operating temperature (T-T)	32 - 104 °F
WLAN data transfer rates supported	11, 54, 150 Mbit/s
Ethernet LAN (RJ-45) ports	5
Supported network protocols	PPPoE, PPTP, L2TP, UPnP
Security algorithms	128-bit WEP, 64-bit WEP, WPA, WPA2, WPA2-PSK
Antennas quantity	1
Antenna gain level (max)	2 dBi
Certification	CE, FCC, RoHS, CSMA/CA, ACK, ETSI
Power consumption (typical)	2.8 W
Storage temperature (T-T)	-10 - 70 °C
Product color	Black
LED indicators	LAN, Status, WAN, WLAN

Weight and Dimensions

Depth	109 mm
Width	158 mm
Height	34 mm
Weight	204 g
