TRENDnet TEW-718BRM Quick Installation Guide

2

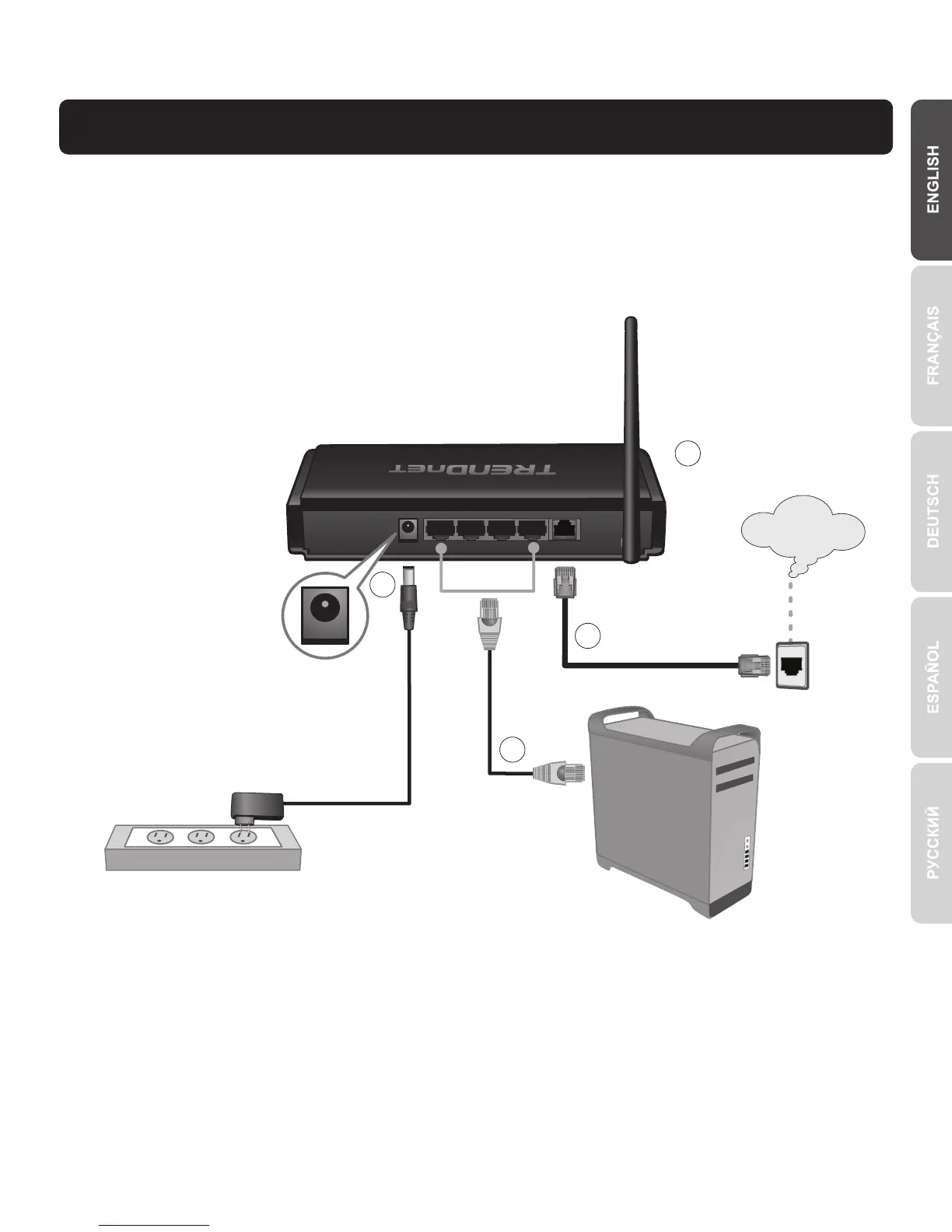

2. Installation
1. Connect the detachable antenna to the TEW-718BRM.
2. Connect one end of the RJ-11 telephone cable to the TEW-718BRM's ADSL port. Connect the other
end of the cable to the phone jack.
3. Connect your computer to one of the TEW-718BRM's LAN ports.
4. Connect the power adapter to the TEW-718BRM and then to a power outlet.
5. Verify that the status LED indicators on the front of the modem to confirm that the device is fully
functional: Status (Green), ADSL (Green), WLAN (Green) and the LAN port (1, 2, 3, 4) your
computer is connected.(Green).
Note: It is recommended that you configure the TEW-718BRM from a wired computer.
DSL
Internet
1
2
3
4

TRENDnet TEW-718BRM Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Modulation	16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, QPSK
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Channels quantity	13 channels
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	150 Mbit/s
Rack mounting	No
Frequency band	2.4 GHz
Frequency range	2.4 - 2.4835 GHz
WLAN data transfer rates supported	11, 54, 150 Mbit/s
Ethernet LAN (RJ-45) ports	4
DSL specification	G.992.1, G.992.2, G.992.3, G.992.5
DHCP client	-
Routing protocols	IGRP, IP, RIP-1, RIP-2
Security algorithms	128-bit WEP, 64-bit WEP, WPA, WPA-PSK, WPA2-PSK
Antennas quantity	1
Certification	CE, FCC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	5 W
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Product color	Black
LED indicators	DSL, LAN, WLAN

Weight and Dimensions

Depth	189 mm
Width	118 mm
Height	33 mm
Weight	221 g
