TriangleTube SMART 40 - Chapter 6 - Replacement Parts; Fig. 24 - SMART Assembly; Fig. 25 - SMART Cover Plate Assembly

25
CHAPTER 6
CHAPTER 6 - REPLACEMENT PARTS
Item Part # Model Description
1 P3KITAV02 All Air vent, manual
2
P3KITTH01 All Aquastat - 160ºF residential
P3KITTH03 All Aquastat - 194ºF commercial
3
P3KITBTM02 SMART 30, 40, 50 60
Bottom cap
P3KITBTM03 SMART 80, 100
P3KITBTM04 SMART 120
4
P3KITTOP02 SMART 30, 40, 50 60
Top capP3KITTOP03 SMART 80, 100
P3KITTOP04 SMART 120
5
P3DW05 SMART 30
Drywell
P3DW01 SMART 40
P3DW02 SMART 50
P3DW03 SMART 60, 80
P3DW04 SMART 100, 120
6
P3WKITDT01 SMART 30
Dip tube
P3WKITDT02 SMART 40
P3WKITDT03 SMART 50
P3WKITDT04 SMART 60
P3WKITDT08 SMART 80, 100
P3WKITDT09 SMART 120
7
(not shown)
P3WKITDT01 SMART 30, 60
Dip tube, recirculation
P3WKITDT02 SMART 40, 50
P3WKITDT08
(cut to length)
SMART 80, 100, 120
8 P3KITWRS01 All Snap-set wire harness
9 P3KNB02 All Knob
10 P3CVR04 All Cover plate

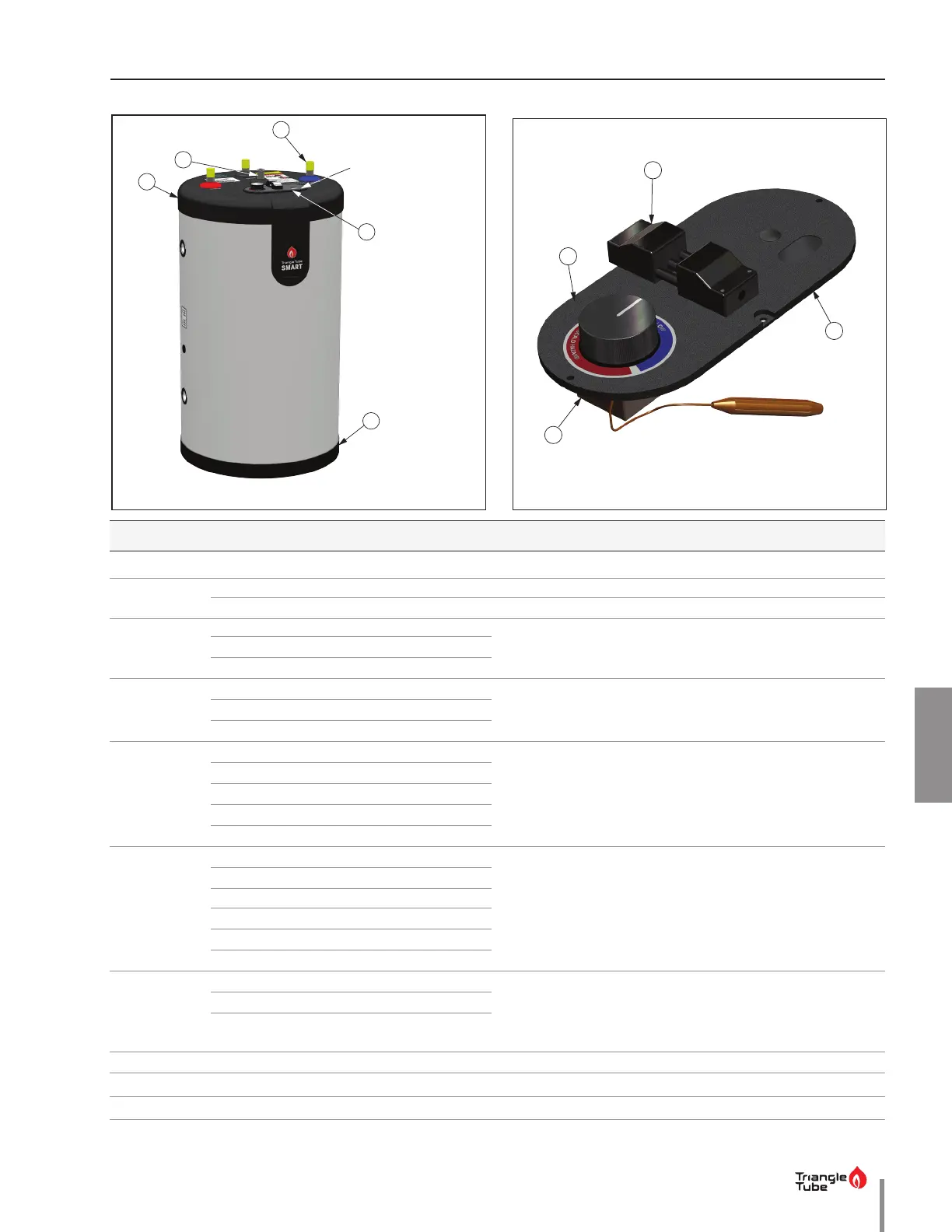

Fig. 24 - SMART Assembly
Thermostat
Cover Plate
Assembly
Located Below Thermostat
Cover Plate Assembly
6
3
4
1
5
10
2
8
9
Fig. 25 - SMART Cover Plate Assembly
