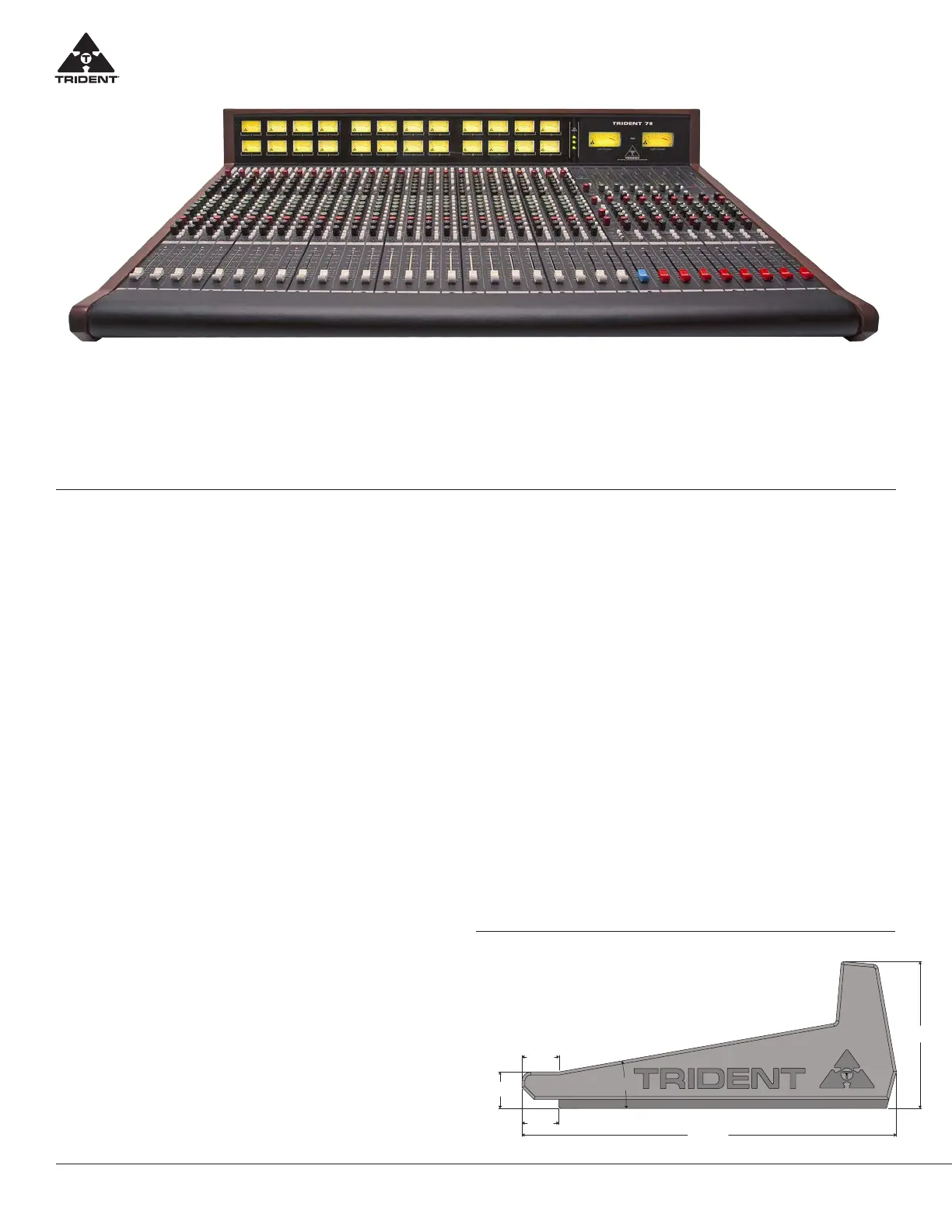

Trident 78 Introduction & Specifications
The Series 78 all analog consoles are all Trident through and through. The 78’s are Split/lnline consoles with
individual channels in 4-way panels. Using an 8 subgroup configuration and incorporating 6 Aux sends, its
routing options are vast and simple to use. Connections are fast and easy with DB-25’s throughout the board
and XLR’s for Master and Main outputs. With the 80B EQ at its core, including selectable channel inserts and
discrete preamps driving the inputs, the Series 78 consoles oer a wide array of summing and mixing options.
The uncompromised sonic quality and compact footprint of the 78’s are able to meet any demand.
Trident 78 Specifications
Input Impedance
Microphone: >2K0 electronically balanced
Line: >10K0 electronically balanced
Output Impedance
Left/Right, Monitor O/P, Group & Auxes <600 (Outsmarts® Drive)
All other Outputs <1000
Frequency Response
Mic Input to Mix Output <+0, -0.3dB 20Hz to 80KHz
@ 6-40 dB gain.
Line Input to Mix Output <0, -0.3dB 20Hz to 60KHz
@ 0 dB gain.
Distortion/Noise
(T.H.D +Noise) at +15dBu Output
Mic XLR Input to any Output (-20dBu input) <0.003%
Line Input to any Output <0.003%
Monitor/Tape Return Input to any Output <0.003%
Noise
Mic EIN (20-20KHz, 1500 source, 60dB gain) <-128.5 dBu
Residual Bus Noise (Output fader at min) <-95 dBu
Stereo Bus Noise (40 inputs continually assigned) <-83 dBu
(24 Input Mon/Tape Returns, 8 EFX Returns
and 8 Master Tape Returns)
Bus Noise (24 inputs routed equiv. to 64 Inputs) <-77 dBu
Crosstalk
Adjacent Channel: <-100dB (@20KHz)
<-110dB (@1KHz)
Channel Fader Mute <-95dB (20Hz to 20KHz)
Monitor/Tape Return Mute <-85dB (20Hz to 20KHz)
Mix/Bus Assign <-80dB (20Hz to 20KHz)
Aux to Aux <-80dB (20Hz to 20KHz)
Maximum Input
Mic (XLR) Input (at min gain) +17dBu
Line (at min gain) +42dBu Channel Insert Return
+22dBu All Output Insert Returns
+28dBu
Maximum Output
Mix, Group, Aux, Monitor Outputs +26.5dBu (Into 6000) Insert Send,
Alt Outputs +22dBu (Into 2K0)
Phase
Mic Input to Direct Out +17 º to -8 º 20Hz to 20Khz
Mic In to Mix Output +25 º to -17 º 20Hz to 20Khz
Line In to Mix Output +25 º to -20 º 20Hz to 20Khz
Monitor/Tape Return to Mix Output +15 º to -20 º 20Hz to 20Khz
Trident 78 Dimensions
Width Depth Height
8 Channel: 23.37”(59.359cm) 31.199” (79.245cm) 12.23” (31.06cm)
16 Channel: 33.37” (84.759cm) 31.199” (79.245cm) 12.23” (31.06cm)
24 Channel: 43.37” (110.159cm) 31.199” (79.245cm) 12.23” (31.06cm)
32 Channel: 53.37” (135.559cm) 31.199” (79.245cm) 12.23” (31.06cm)
10
º
13.481
36.679
1.466
10.789
4.716
10
º
3.043”
7.729cm
3.100”
7.874cm
3.086”
7.838cm
31.199”
79.245cm
12.230”
31.06cm
Module width
Input Top: 4.980” (12.649cm)
Master Top: 1.230” (3.124cm)
Group Top: 4.980” (12.649cm)
