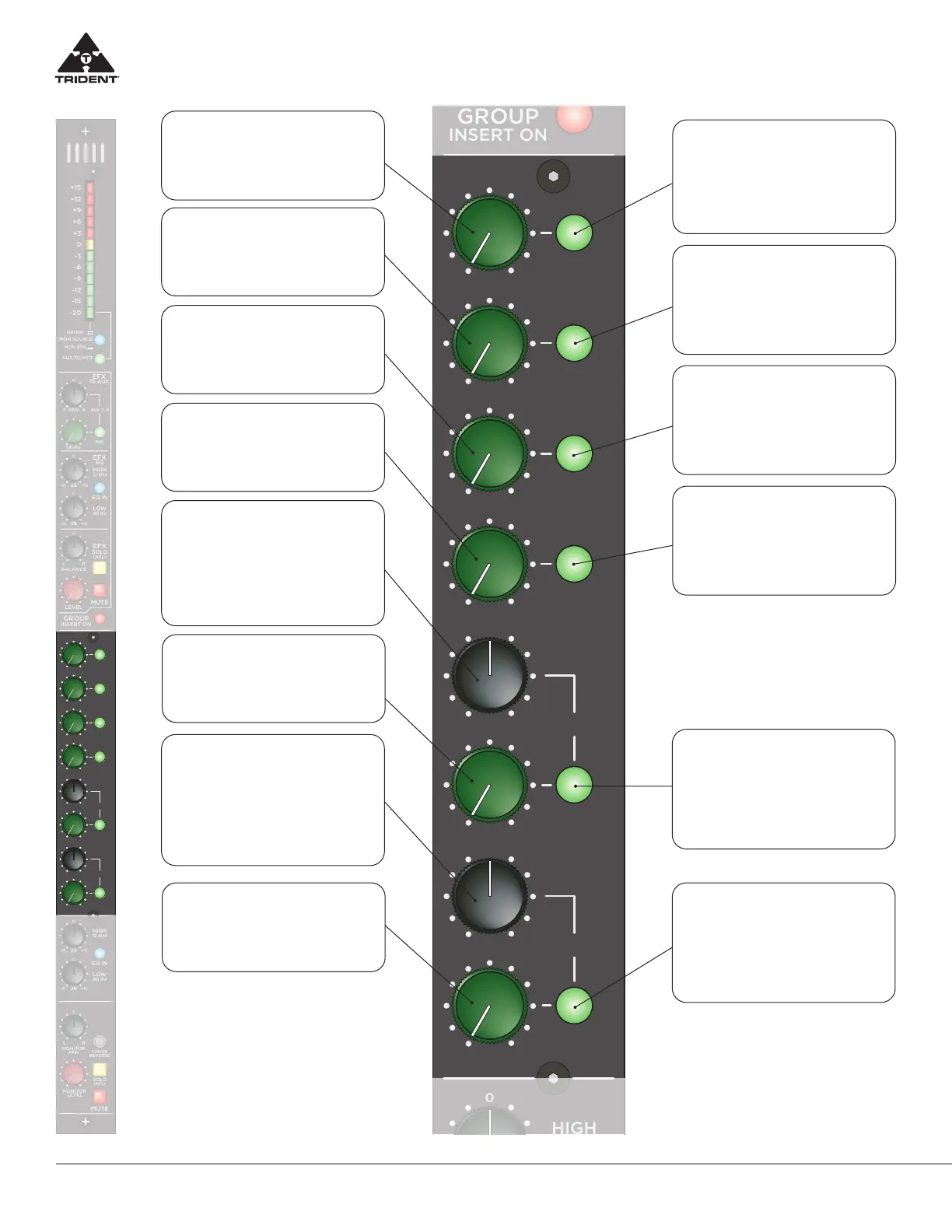

Trident 88 Group AUX Sends
AUX 2 Level Control
Adjusts the mix level of Monitor Input
into the Aux 2 bus.
AUX 5-6 PAN Control
Adjusts the balance of the Monitor sig-
nal being fed to Aux 5 bus (CCW) and
Aux 6 bus (CW). In the centre (=) po-
sition equal signal level is sent to both
Aux 5 and Aux 6 buses.
AUX 1 Pre Switch
This switch determines the signal
source for Aux 1 bus, between Post
(UP) or Pre (DOWN) Monitor Level.
AUX 1 Level Control
Adjusts the mix level of Monitor Input
into the Aux 1 bus.
AUX 3 Level Control
Adjusts the mix level of Monitor Input
into the Aux 3 bus.
AUX 4 Level Control
Adjusts the mix level of Monitor Input
into the Aux 4 bus.
AUX 5-6 Level Control
Adjusts the mix level of Monitor Input
into the Aux 5 and Aux 6 buses.
AUX 7-8 PAN Control
Adjusts the balance of the Monitor sig-
nal being fed to Aux 7 bus (CCW) and
Aux 8 bus (CW). In the centre (=) po-
sition equal signal level is sent to both
Aux 7 and Aux 8 buses.
AUX 7-8 Level Control
Adjusts the stereo mix level of Monitor
Input into the Aux 7 and Aux 8 buses.
AUX 2 Pre Switch
This switch determines the signal
source for Aux 2 bus, between Post
(UP) or Pre (DOWN) Monitor Level.
AUX 3 Pre Switch
This switch determines the signal
source for Aux 3 bus, between Post
(UP) or Pre (DOWN) Monitor Level.
AUX 4 Pre Switch
This switch determines the signal
source for Aux 4 bus, between Post
(UP) or Pre (DOWN) Monitor Level.
AUX 5-6 Pre Switch
This switch determines the signal
source for Aux 5 and Aux 6 buses,
between Post (UP) or Pre (DOWN)
Monitor Level.
AUX 7-8 Pre Switch
This switch determines the signal
source for Aux 7 and Aux 8 buses,
between Post (UP) or Pre (DOWN)
Monitor Level.
