Trident 88 Owners Manual4

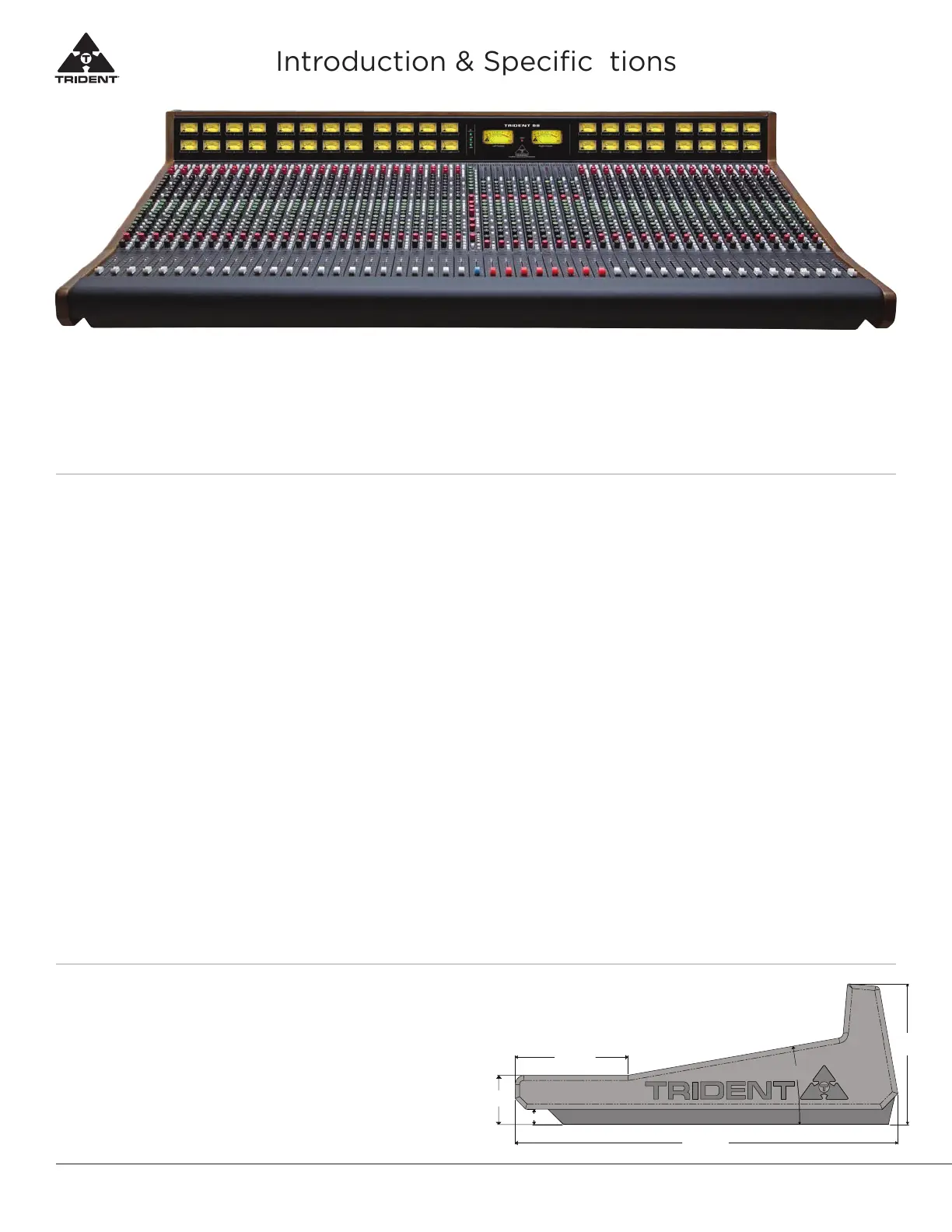

The Input ModuleIntroduction & Specific tions
The Trident 88 is a split inline console that builds on the Trident heritage. The 88 consoles possess the highest
sonic quality components and are equipped with eight buses and the renowned Trident Series 80 EQ. This
incarnation by Trident Audio Developments is built with modern integrated circuits that use a combination
of through-hole and surface mount technology. These consoles feature options such as custom transformer
installation, VU meters and more. The quality construction and modular design make the Trident 88 a highly
serviceable console of unparalleled value.
Trident 88 Specific tions
Input Impedance
Microphone: >2KΩ electronically balanced
Line: >10KΩ electronically balanced
Output Impedance
Left/Right, Monitor O/P, Group & Auxes <60Ω (Outsmarts® Drive)
All other Outputs <100Ω
Frequency Response
Mic Input to Mix Output <+0, -0.3dB 20Hz to 80KHz
@ 6-40 dB gain.
Line Input to Mix Output <0, -0.3dB 20Hz to 60KHz
@ 0 dB gain.
Distortion/Noise
(T.H.D +Noise) at +15dBu Output
Mic XLR Input to any Output (-20dBu input) <0.005%
Line Input to any Output <0.003%
Monitor/Tape Return Input to any Output <0.003%
Noise
Mic EIN (20-20KHz, 150Ω source, 60dB gain) <-128.5 dBu
Residual Bus Noise (Output fader at min) <-95 dBu
Bus Noise (40 inputs continually assigned) <-81 dBu
(24 Input Mon/Tape Returns, 8 EFX Returns
and 8 Master Tape Returns) Bus Noise (24
inputs routed equiv. to 64 Inputs) <-77 dBu
Crosstalk
Adjacent Channel: < -90dB (@20KHz)
<-110dB (@1KHz)
Channel Fader Mute <-95dB (20Hz to 20KHz)
Monitor/Tape Return Mute <-85dB (20Hz to 20KHz)
Mix/Bus Assign <-80dB (20Hz to 20KHz)
Aux to Aux <-80dB (20Hz to 20KHz)
Maximum Input
Mic (XLR) Input (at min gain) +17dBu
Mic (1/4”) Input (at min gain) +42dBu
Line (at min gain) +42dBu
Channel Insert Return +22dBu
All Output Insert Returns +28dBu
Maximum Output
Mix, Group, Aux, Monitor Outputs +26.5dBu (Into 60Ω Ohms)
Insert Send, Studio, Alt Outputs +22dBu (Into 2KΩ)
Phase
Mic Input to Direct Out +17º to -8º 20Hz to 20KHz
Mic In to Mix Output +25º to -17º 20Hz to 20Khz
Line In to Mix Output +25º to -20º 20Hz to 20Khz
Monitor/Tape Return to Mix Output +15º to -20º 20Hz to 20Khz
Trident 88 Dimensions
Width Depth Height
16 Channel: 33.37” (84.759cm) 36.679” (93.164cm) 13.481”(34.241cm)
24 Channel: 43.37” (110.159cm) 36.679” (93.164cm) 13.481”(34.241cm)
32 Channel: 53.37” (135.559cm) 36.679” (93.164cm) 13.481”(34.241cm)
40 Channel: 63.37” (160.959cm) 36.679” (93.164cm) 13.481”(34.241cm)
Module width
1.25” (3.175cm)
10
º
13.481”
36.679”
(93.164cm)
1.466” 3.72cm
10.789”
27.404cm
4.716”
