DISTANCE TO POOL
EXISTING PATIO
** FINISH GRADE
** FINISH GRADE

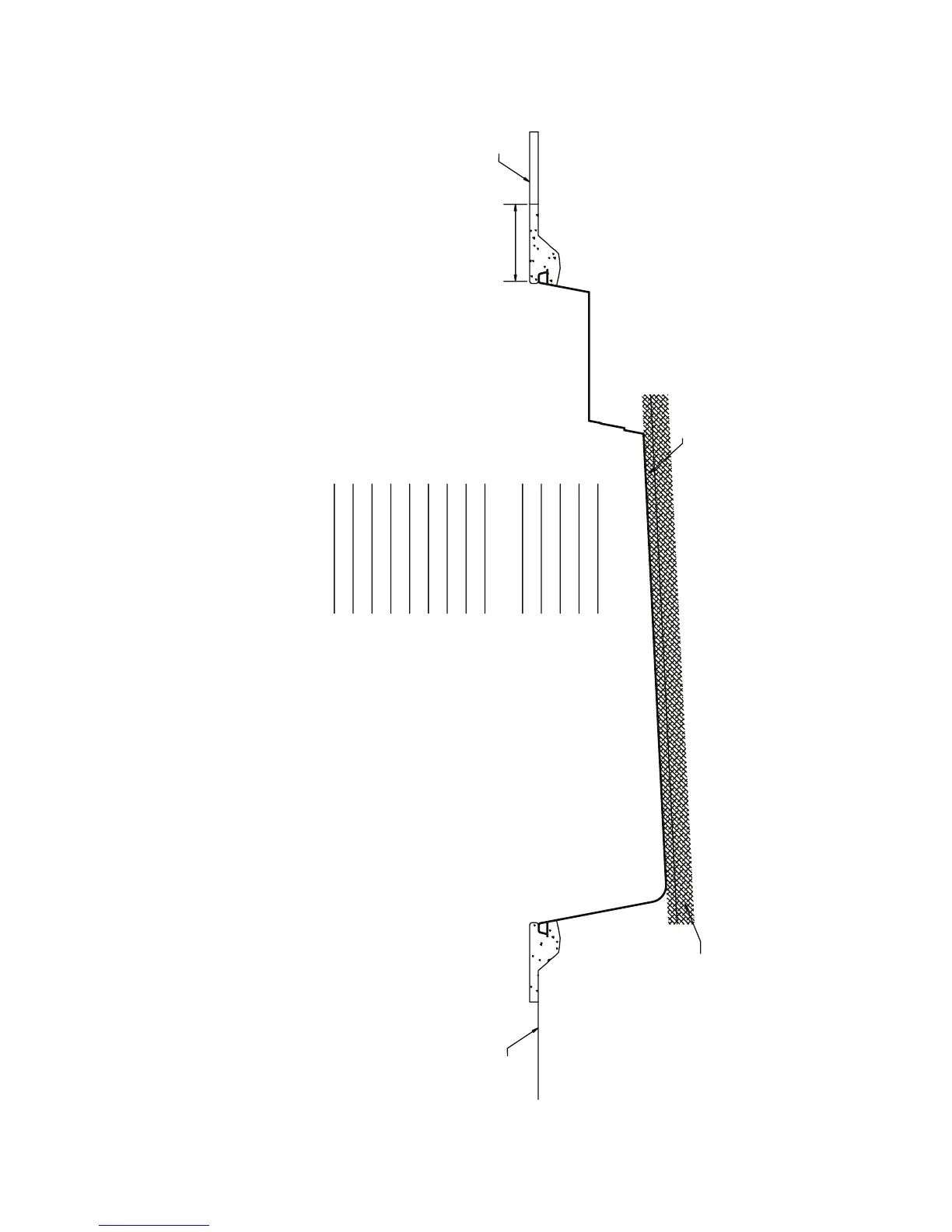

INSTALLATION PLANNING GUIDE
Job: Pool: Nebula Date:
Finish Grade * Slope Top of Concrete at Pool Thickness of Concrete Top of Pool Shallow End Depth Top of Sand Shallow End Thickness of Sand Top of Dig Shallow End Top of Pool Deep End Depth Top of Dig Deep End Thickness of Sand Top of Sand Deep End
* SLOPE = DISTANCE TO POOL X .25 (1/4")
** IF POOL IS INDEPENDENT OF ANY EXISTING
STRUCTURES OR PATIOS, FINISH GRADE IS TO BE 3 1/2" BELOW EDGE OF POOL DECK.
FORM 1
UNDISTURBED SOIL
3" - 4" SAND
= - 3.5" = = = = + 3.5" + 72" or 6'-0" + 49" or 4'-1" + 3.5" = -
