Teaching Additional
FOB Transmitters

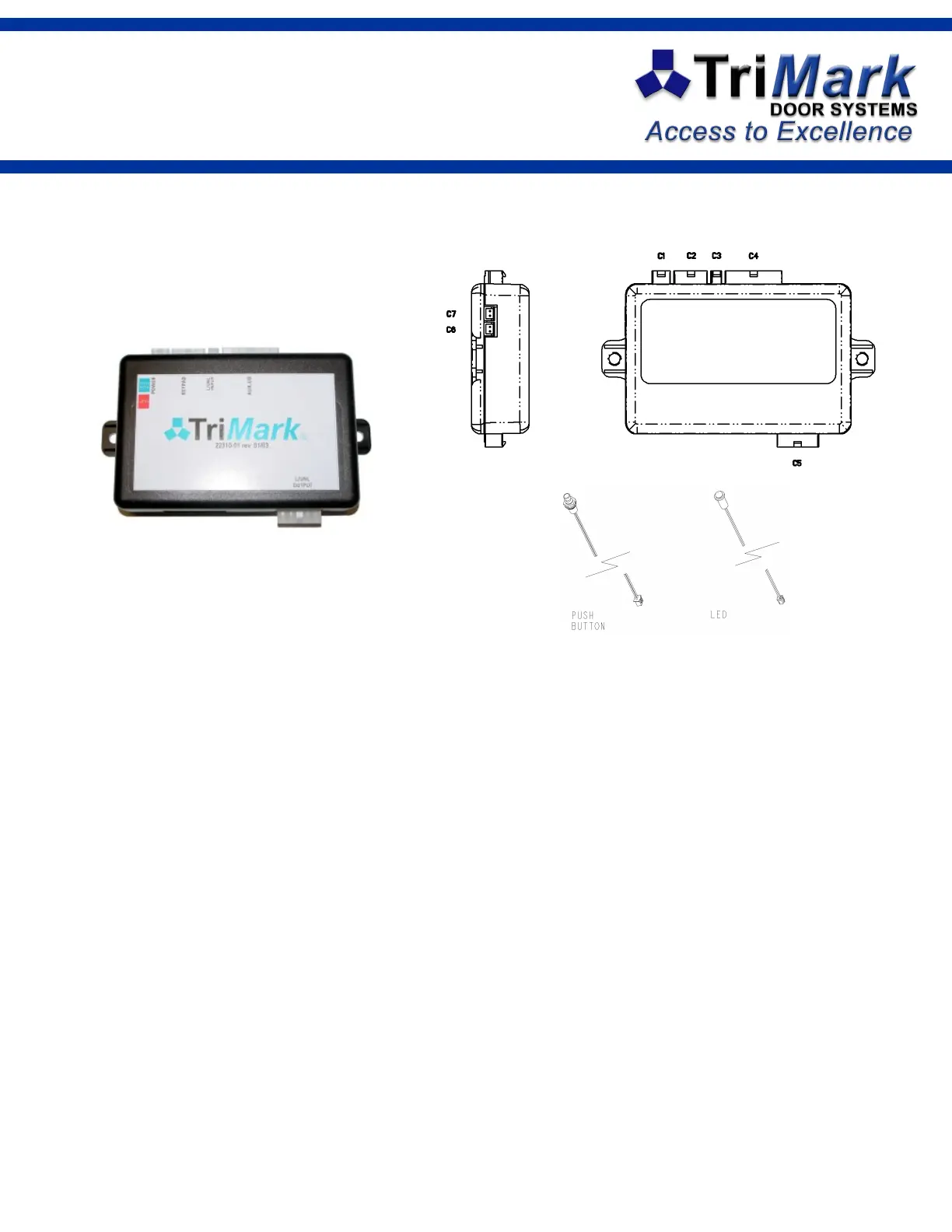

1. Plug the LED into C6 and the push button into C7 on the receiver. These may already
be plugged into your module by the OEM.
2. Turn ignition off and/or disarm alarm.
3. Press and release the programming button 3 times. The LED will turn on red after 3
seconds.
4. Press and release the Lock button of each new FOB transmitter once. The LED will
flash off and the horn will sound once. Up to 60 transmitters may be programmed at
one time.
5. Repeat step 4 until all fobs are programmed.
Notes:
If you place the system in learn mode and teach nothing, the system will exit in 10 sec-
onds and nothing will change.
All previous transmitters are erased if a transmitter is taught during a programming
session, so all transmitters must be taught in the same session to retain functionality.
This device complies with Part 15 of FCC rules. Operation is subject to the following condi-
tions: (1) This device may not cause harmful interference, and (2) This device must accept
any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate this device.
TM-Full Function RF Receiver 22310-01
