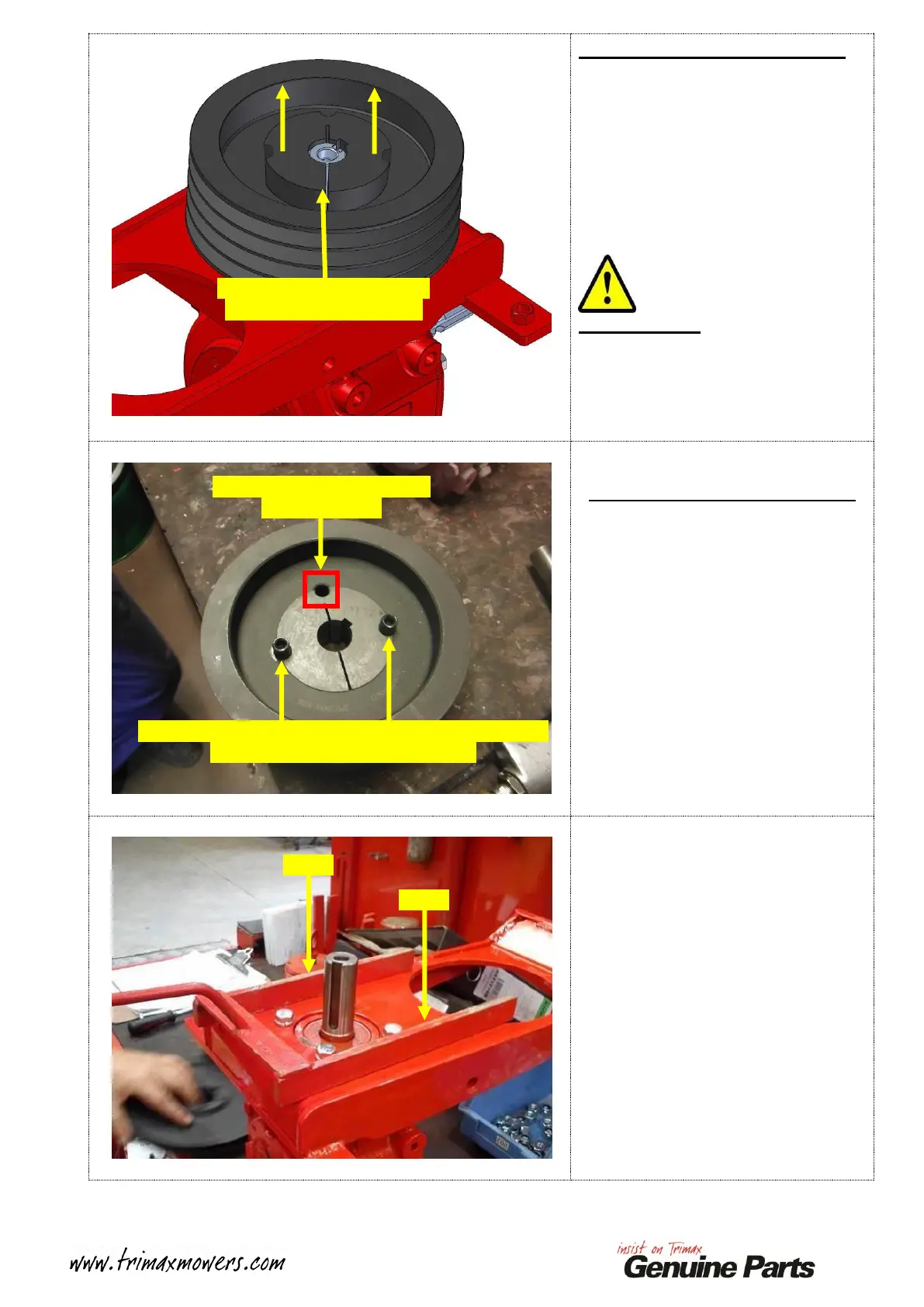

PROCUT 237 and 290 Only:
Insert a Flat Bladed Screwdriver in
the Slot in the Biloc Bush.
Carefully lever the Bush open
slightly.
Slide the Bush up and off the Gearbox
Output Shaft.
Remove the Pulley.
IMPORTANT:
Apply MINIMAL leverage while
removing the Taper Lock Bush,
otherwise cracking can occur through
the thinnest section of the Taper Lock
Bush!
PROCUT 237 and 290 Only:
Clean the Bore in the Centre of the
Pulley, the Taper Lock Bush and the
Gearbox Output Shaft with White
Spirits and a clean cloth
Re-assemble the Pulley as shown with
MEDIUM STRENGTH THREAD
LOCKING COMPOUND applied to
the Grub Screws.
Leave the Grub Screws loose at this
stage.
Place two Spacers onto the Gearbox
Mounting Plate in the locations
shown opposite. These will be used to
set the spacing of the Pulley.
There are TWO different
measurements used:
• Procut 178 and 210 require:
27mm (1 1/16”) Spacers
• Procut 237 and 290 require:
10mm (3/8”) Spacers
Insert Flat Screw driver here
to lever bush open slightly
Leave empty, used for pulley
removal ONLY
Grub screws with MEDIUM STRENGTH THREAD
LOCKING COMPOUND applied
To Next Page
