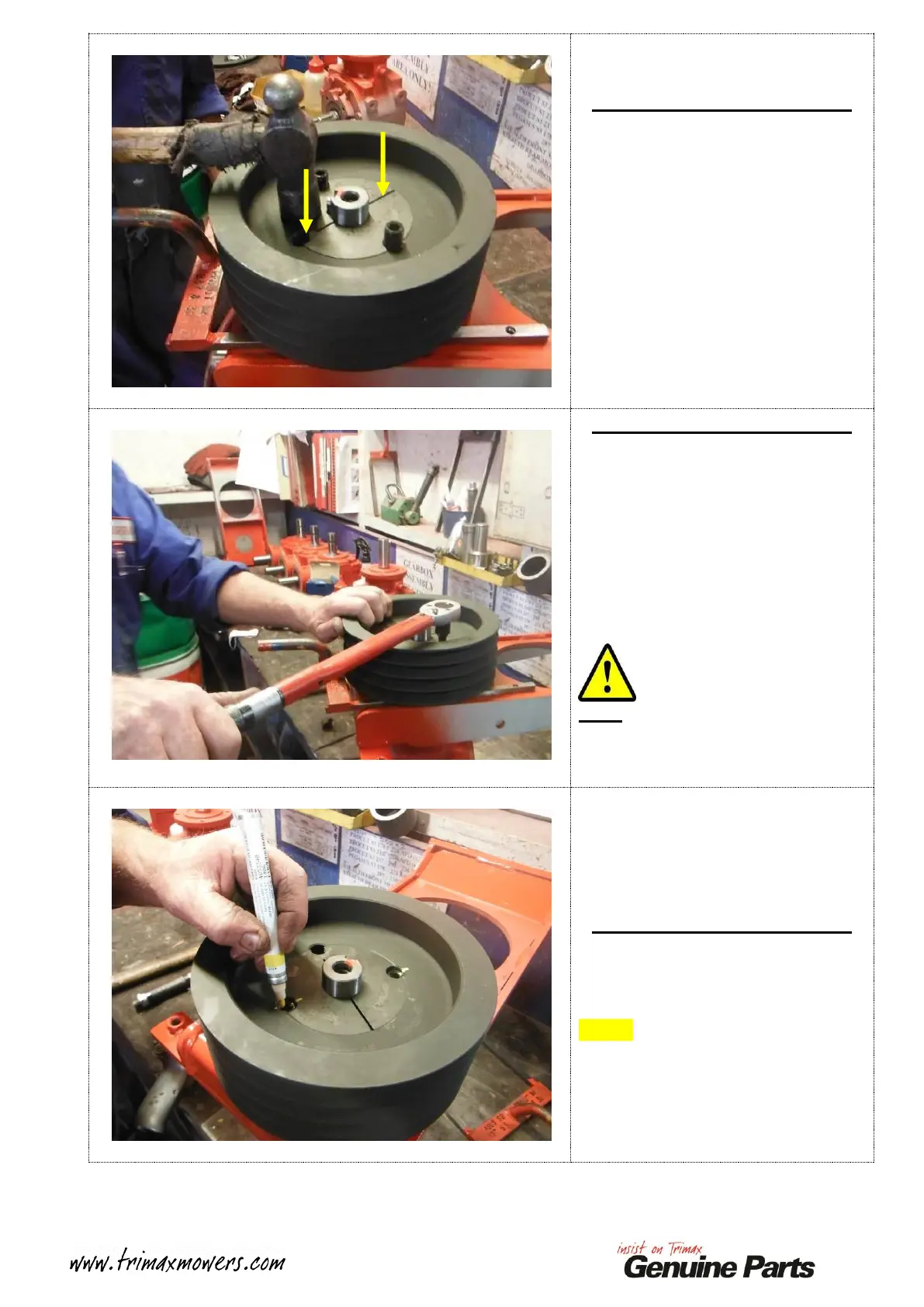

Procut S3 237 and 290 only:
Fit the Gearbox Pulley
Sub-assembly onto the Output Shaft.
Align the Key in the Output Shaft
with the Keyway in the Gearbox
Pulley Assembly.
Lightly tap the Gearbox Pulley
Sub-assembly down until it is hard
against the 10mm (3/8”) Spacers.
Fully tighten.
Procut S3 237 and 290 only:
Torque the Grub Screws to 90Nm
(66ft/lbs)
Tap around the Bush with a Hammer,
this will ensure that the Bush is seated
squarely in the Bore
Re-torque the Grub Screws to 90Nm
(66ft/lbs) This ensures that the Pulley
is securely mounted.
Note:
It may be necessary to prevent the
Gearbox from rotating, an old P.T.O
Yoke can be used for this task.
Procut S3 237 and 290 only:
Once torqued, remove the Spacers.
Stripe across the Grub Screws with a
Yellow Paint Marker
