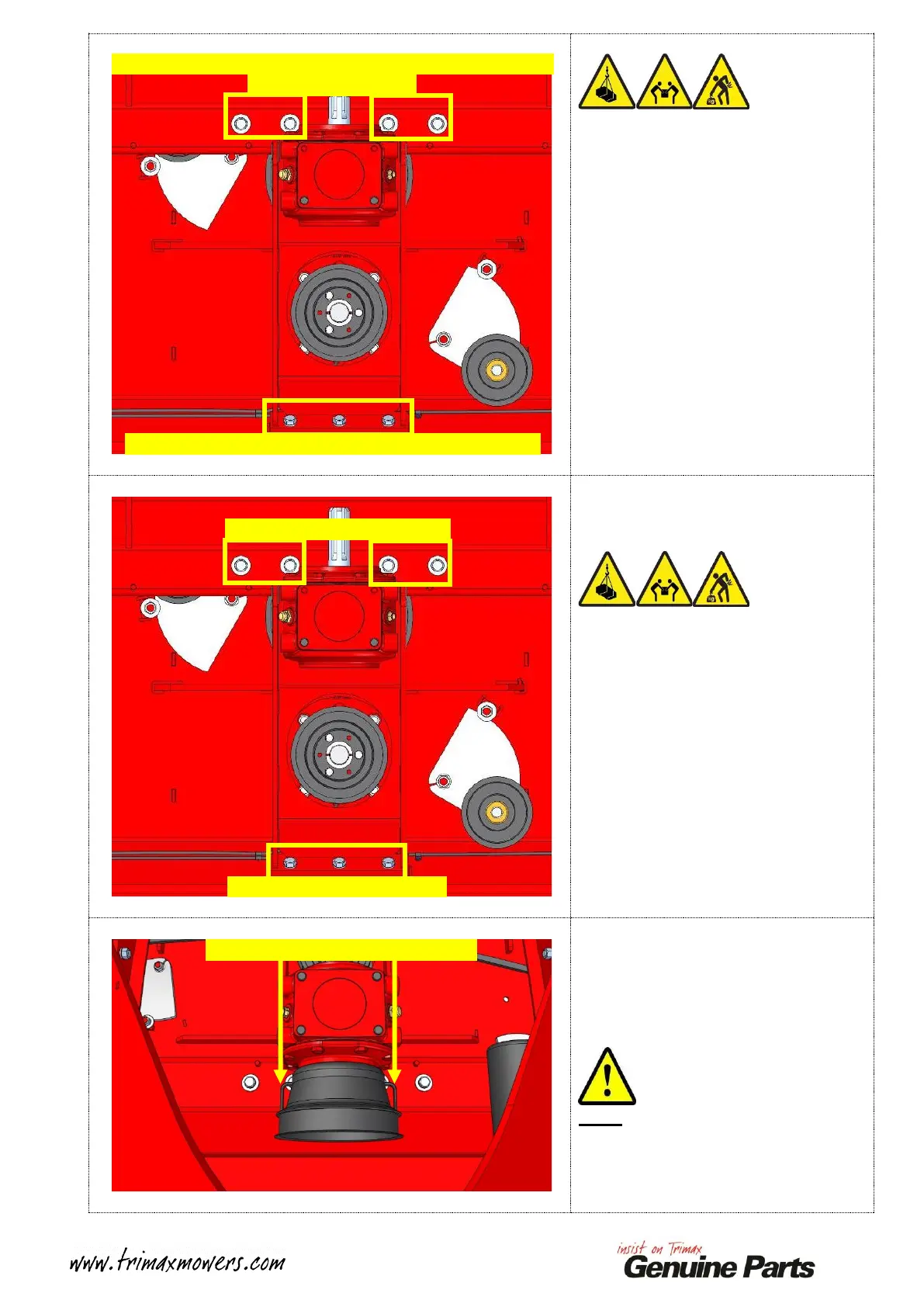

Re-fit the Gearbox Assembly into its
original position.
Apply MEDIUM STRENGTH
THREAD LOCKING
COMPOUND to ALL Gearbox
Mounting Bolts
Secure the REAR of the Gearbox
Assembly using the M12 x 30 Bolts
and M12 Spring Washers.
Secure the FRONT of the Gearbox
Assembly using the M12 x 35 Bolts,
M12 Spring Washers and M12 Heavy
Flat Washers.
Hand tight only at this stage.
Support the weight of the Gearbox
Assembly so it is contacting the Body
at BOTH ends simultaneously.
While supported, fully tighten the
Rear Gearbox Mount Bolts FIRST.
Then, fully tighten the Front Gearbox
Mount Bolts LAST.
Remove ALL Lifting Equipment.
Refit the P.T.O Cone using the
M8 x 16 Bolts and M8 Flat Washers
that were removed earlier.
Tighten to secure.
Note:
Ensure that the P.T.O Cone Safety
Chain Lugs are HORIZONTAL as
shown.
M12 x 35 Bolts, M12 Spring Washers and M12 Heavy Flat
Washers used this side
M12 x 30 Bolts and M12 Spring Washers used this side
Safety Chain Lugs HORIZONTAL
