Trimble EZ-Guide 500 Quick Reference Card

EZ-Guide
®
500 Lightbar Guidance System
Quick Reference Card
www.EZ-Guide.com
EZ-Guide
®
500 Lightbar Guidance System
Quick Reference Card
www.EZ-Guide.com
EZ-Guide
®
500 Lightbar Guidance System
Quick Reference Card
www.EZ-Guide.com

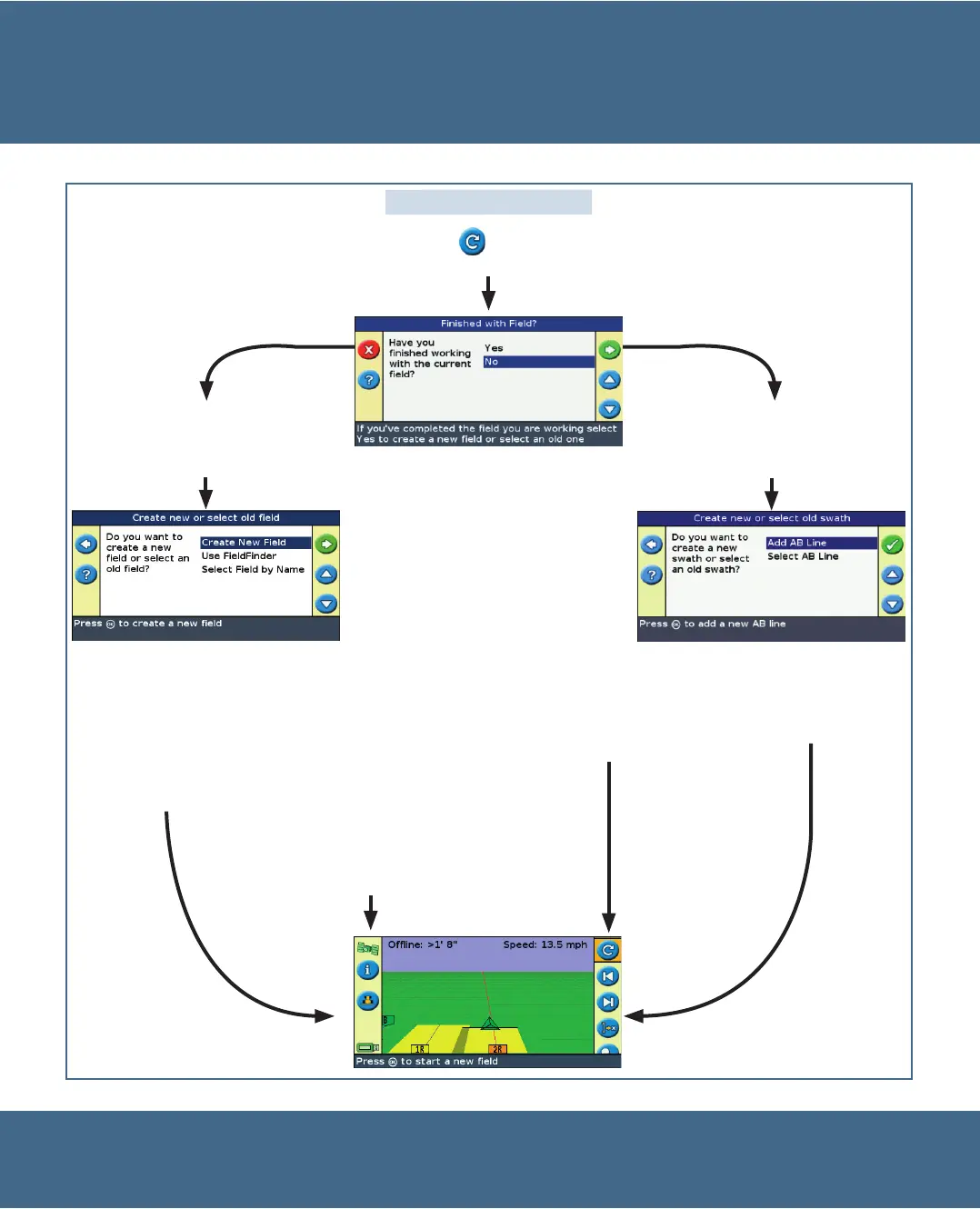

ADVANCED MODE APPLICATION USE
Reset guidance
Select the
icon and then
press
o
.
Get guidance
NO
(Choosing No leaves the current field
open and allows you to Add an AB line
or switch AB lines.)
YES
(Choosing Yes closes the current field
and allows you to Create a new field
or Open a stored field and add to it.)
Create New Field
• Confirm pattern &
implement setup
• Confirm or change field
name
• Enter event information
(Record keeping)
Select a Field
• Select a field from a
map (FieldFinder) or list
of names (Select field by
name)
• Choose to start a new
event (& name it) or
continue old event
• Confirm implement
setup (width)
• Enter event information
(Record keeping)
Add AB Line
• Select AB Line from
amap
• Confirm implement
setup (width)
Select AB Line
• Confirm the pattern &
the implement setup
(width)
EZ-Guide
®
500 Lightbar Guidance System
Quick Reference Card
www.EZ-Guide.com
www.EZ-Guide.com

Trimble EZ-Guide 500 Specifications

General

Update Rate	5 Hz
Power Supply	12-24 VDC
Display Type	Color LCD
GPS Receiver	Integrated
Ports	Serial, USB
Operating Temperature	-20°C to +60°C
Weight	1.25 lbs
Memory	Internal storage
DGPS Accuracy	6-8 inches (15-20 cm) pass-to-pass
