EZ-Guide 500 System Cabling Guide 15
Connecting to an EZ-Boom System 2
EZ-Guide 500 / Autopilot / EZ-Boom / 900 MHz radio

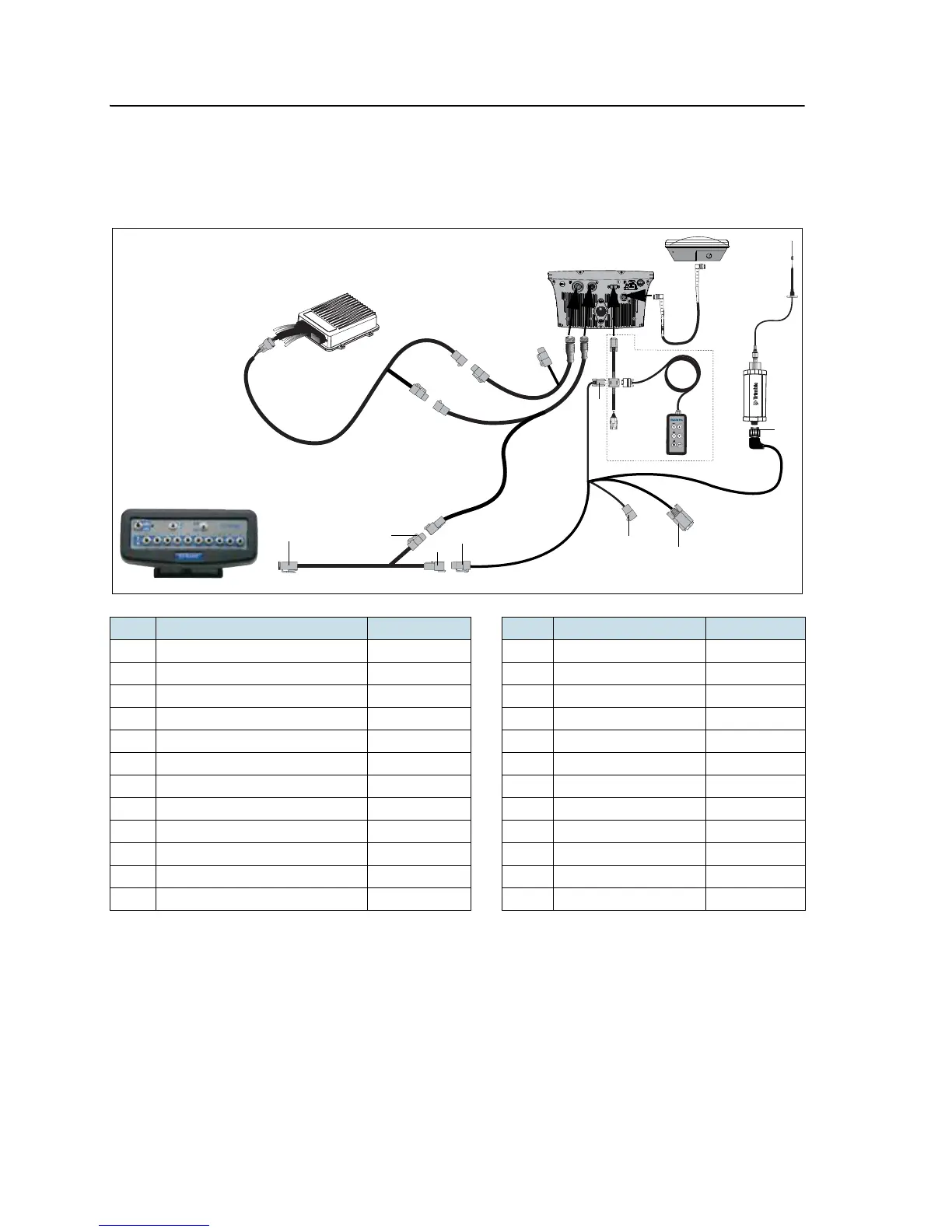

This figure shows how to connect an EZ-Guide 500 lightbar to an AgGPS Autopilot
system, an EZ-Boom 2010 system, and a 900 MHz radio (with the new cables):
Item Description Part number Item Description Part number
A Radio antenna cable 22882-00 M Port expansion cable 62609
B Radio antenna magnetic mount 62109 N EZ-Guide 500 lightbar 66100-xx
C Radio antenna connector 46740 O GPS antenna cable 50449
D SiteNet radio – P GPS antenna 77038-00
E Remote keypad (optional) 66030-00 1 “P1” connector –
F External interface cable 62749 2 “P4“connector –
G EZ-Guide 500-to-radio cable 62082 3 “P3“connector –
H EZ-Boom cable 61437 4 “S5“connector –
I EZ-Boom controller – 5 “P2” connector –
J Power cable 62817 6 “S3” connector –
K EZ-Guide 500-to-Autopilot cable 62754 7 “P1” connector –
L AgGPS Autopilot controller – 8 “P3” connector –
L
ABEL
A
2
B
C
D
1
E
F
3
G
5
6
4
7
H
8
O
N
M
J
L
K
I
P
