3 Connecting to a Field-IQ System
20 EZ-Guide 500 System Cabling Guide
EZ-Guide 500 lightbar

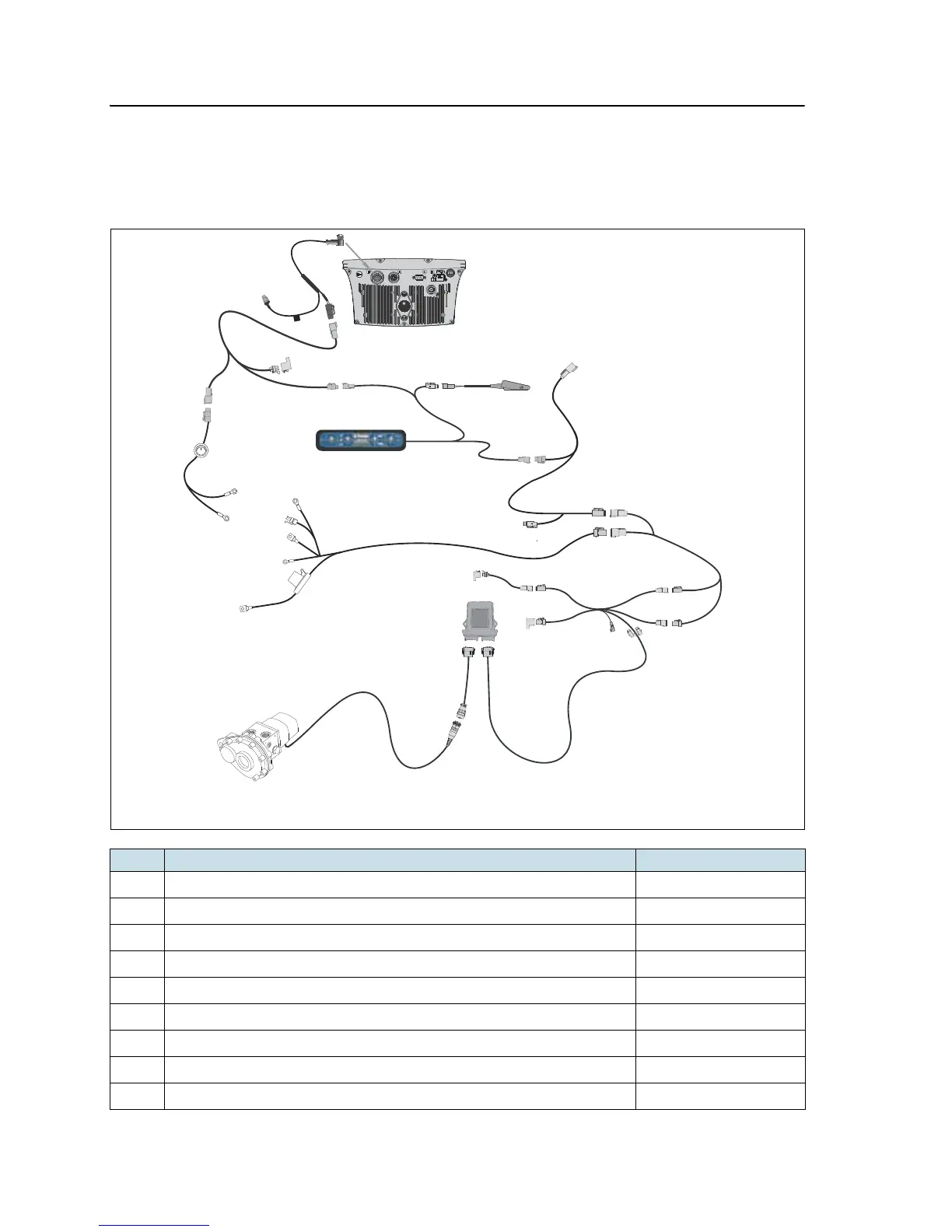

This figure shows how to connect a Field-IQ system on a self-propelled spreader to the
EZ-Guide 500 lightbar.
Item Description Trimble part number
c
EZ-Guide 500 lightbar 66100-xx
d
Lightbar power cable 62817
e
CAN–TBC active terminator cable (with power) 75522
f
Power cable with switch 75743
g
Field-IQ master switch box 75050-01
h
Remote foot switch (optional) 60490
i
Cable assembly, power to hitch connection 76941
j
CAN–power extension cable 75528-xx
k
Rawson module tee cable 75527
c
d
e
f
g
h
i
j
k
