Trimble EZ-Guide 500 - EZ-Guide 500 Lightbar to Field-IQ (Alternative)

3 Connecting to a Field-IQ System
24 EZ-Guide 500 System Cabling Guide
EZ-Guide 500 lightbar

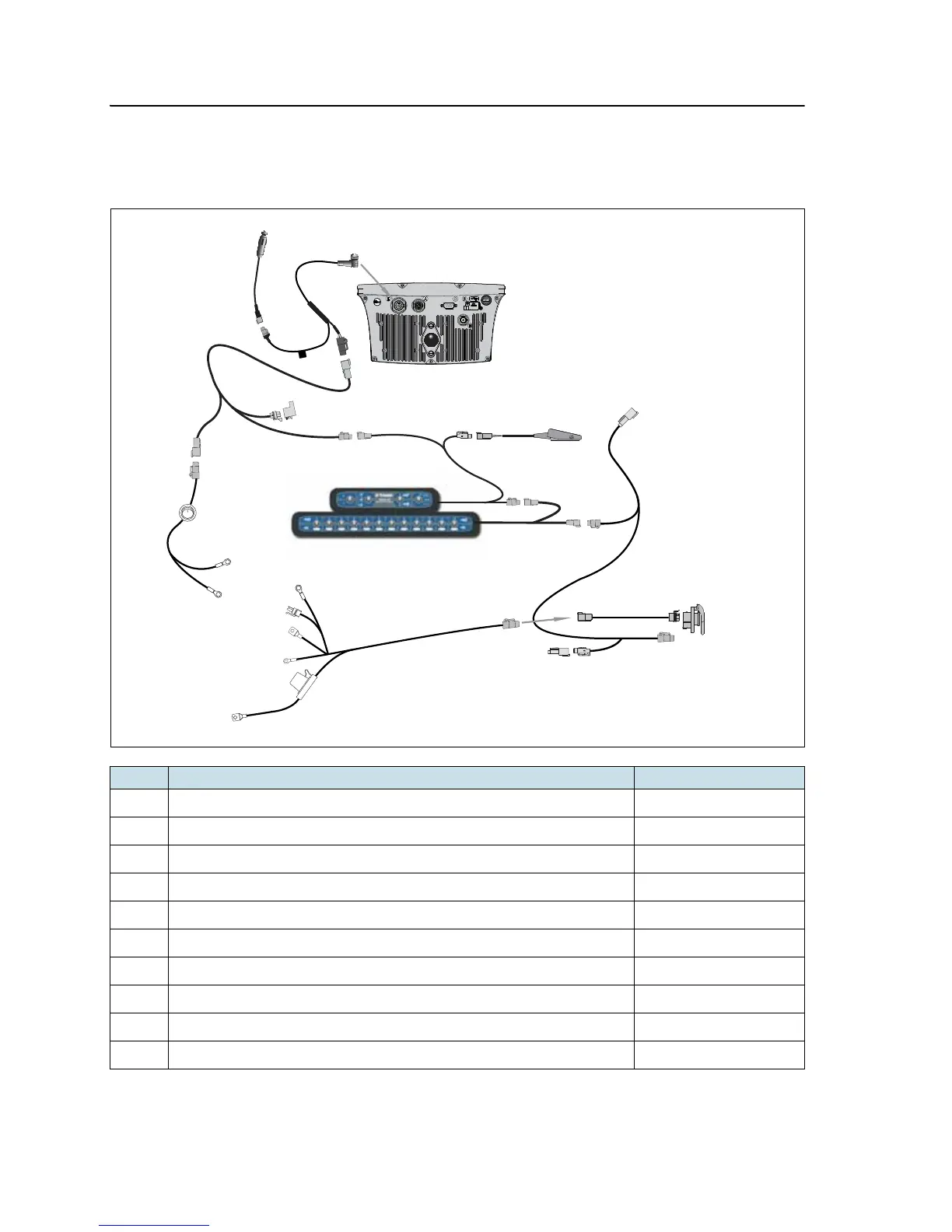

This diagram shows how to connect an EZ-Guide 500 lightbar to the Field-IQ system:
Item Description Trimble part number
c
EZ-Guide 500 lightbar 66100-xx
d
Lightbar power cable 62817
e
CAN–TBC active terminator cable (with power) 75522
f
Power cable with switch 75743
g
Field-IQ master switch box 75050-01
h
Optional: remote foot switch 60490
i
Cable assembly, CAN cab to hitch connection 77368
j
Cable assembly, power to hitch connection 76941
k
Cable assembly, IBRC to DTP adapter (optional Powell Connector) 77413
l
Optional: 12 section switch box 75060-01
c
d
e
f
g
h
i
j
k
l
