4 Connecting to an EZ-Steer System
32 EZ-Guide 500 System Cabling Guide
EZ-Steer 500 system / EZ-Boom system / Ag3000 Modem

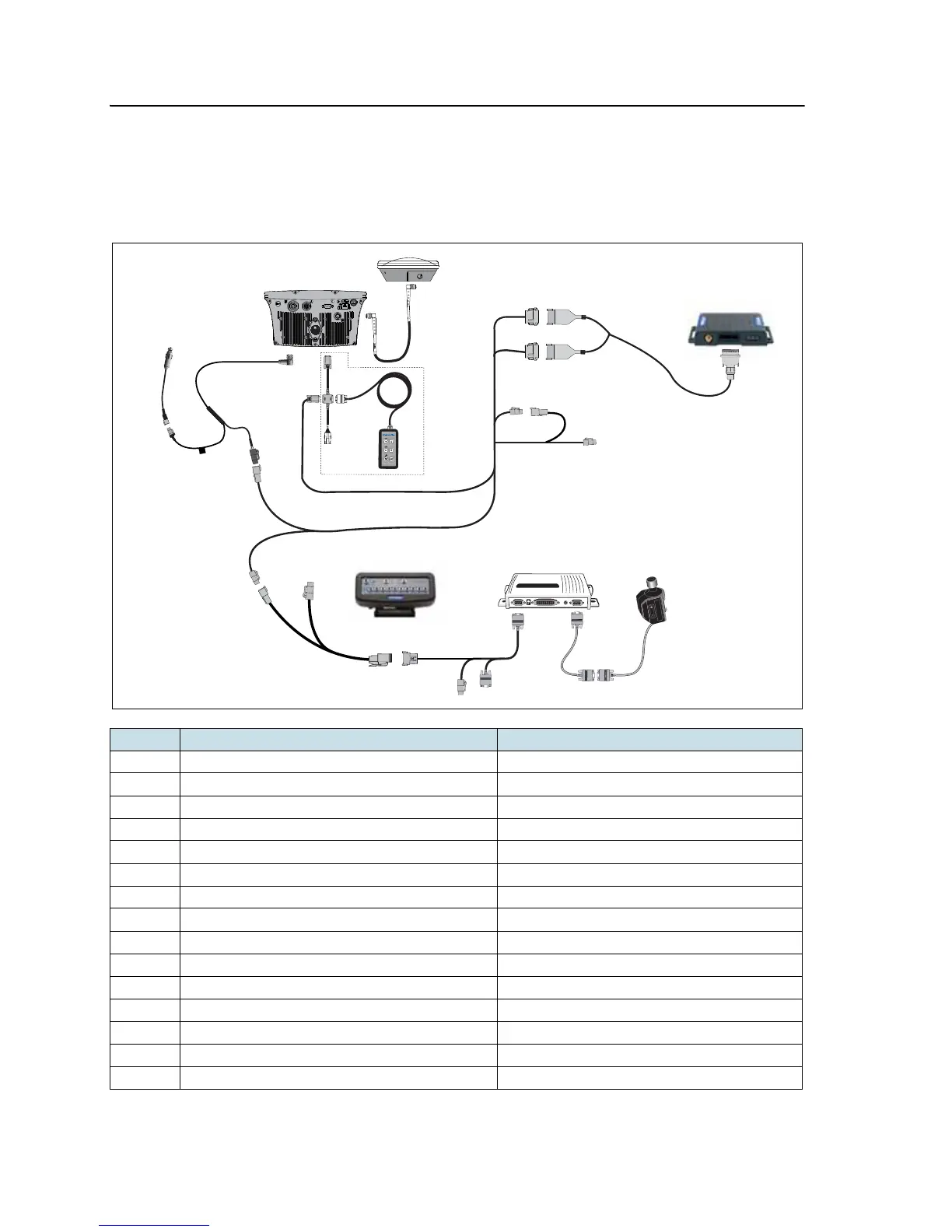

This figure shows how to connect an EZ-Boom system to an EZ-Steer 500 system using
an Ag3000 modem:
Item Description Part number
A GPS antenna 77038-00
B GPS antenna cable 50449
C Ag3000 Breakout cable 70433
D External interface cable 62749
E EZ-Boom controller -
F EZ-Steer controller -
G EZ-Steer motor 53058-00
H EZ-Steer motor cable 62257
I EZ-Steer extension cable 62974
J EZ-Boom cable 61437
K Ag3000 CAN/Serial interface 72639
L Ag3000 modem 68600-xx
N Power cable 62817
O Power connector cable 62818
P EZ-Guide 500 lightbar 66100-xx
A
B
C
K
E
F
G
2
H
3
4
5
6
I
7
8
J
9
10
DCOL
Generic
15
O
N
P
L
T
D
