Trimble EZ-Guide 500 - EZ-Steer 500; 450 MHz RTK Corrections

4 Connecting to an EZ-Steer System
34 EZ-Guide 500 System Cabling Guide
EZ-Steer 500 system (for 900 MHz RTK corrections)

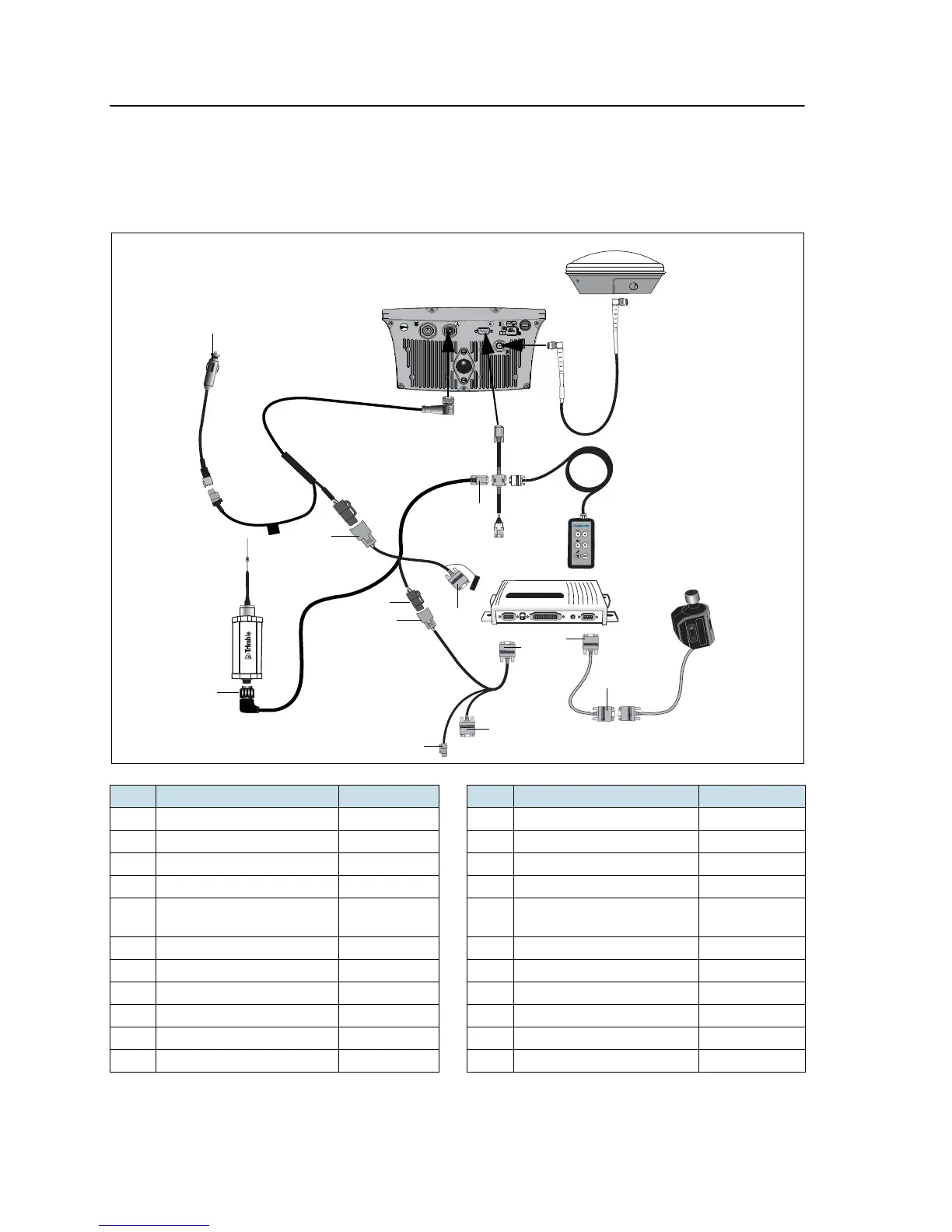

This figure shows how to connect the EZ-Steer 500 system to a 900 MHz radio for RTK
corrections:
Item Description Part number Item Description Part number
A GPS antenna 77038-00 N EZ-Guide 500 lightbar 66100-xx
B GPS antenna cable 50449 1 “P2” connector –
C Remote keypad (optional) 66030-00 2 “P1” connector –
D External interface cable 62749 3 “R2” connector –
E EZ-Steer controller – 4 Laptop connector (for
firmware upgrade)
–
F EZ-Steer motor 53058-00 5 Alternate power supply –
G EZ-Steer motor cable 62257 6 “P3” connector –
H EZ-Steer extension cable 60855 7 “S1” connector –
I 900 MHz SiteNet radio – 8 “P2” connector –
J Radio antenna 22882-00 9 “P1” (radio) connector –
K EZ-Guide 500-to-radio cable 62082 10 “S5” connector –
LA
BEL
L
ABEL
A
B
C
E
D
F
1
G
2
3
4
5
H
6
7
I
9
8
J
K
11
12
M
L
N
10
