Trimble EZ-Guide 500 - EZ-Guide 500; Autopilot; EZ-Boom; 450 MHz Radio

EZ-Guide 500 System Cabling Guide 45
Connecting to an AgGPS Autopilot System 5
EZ-Guide 500 / Autopilot / EZ-Boom / 450 MHz radio

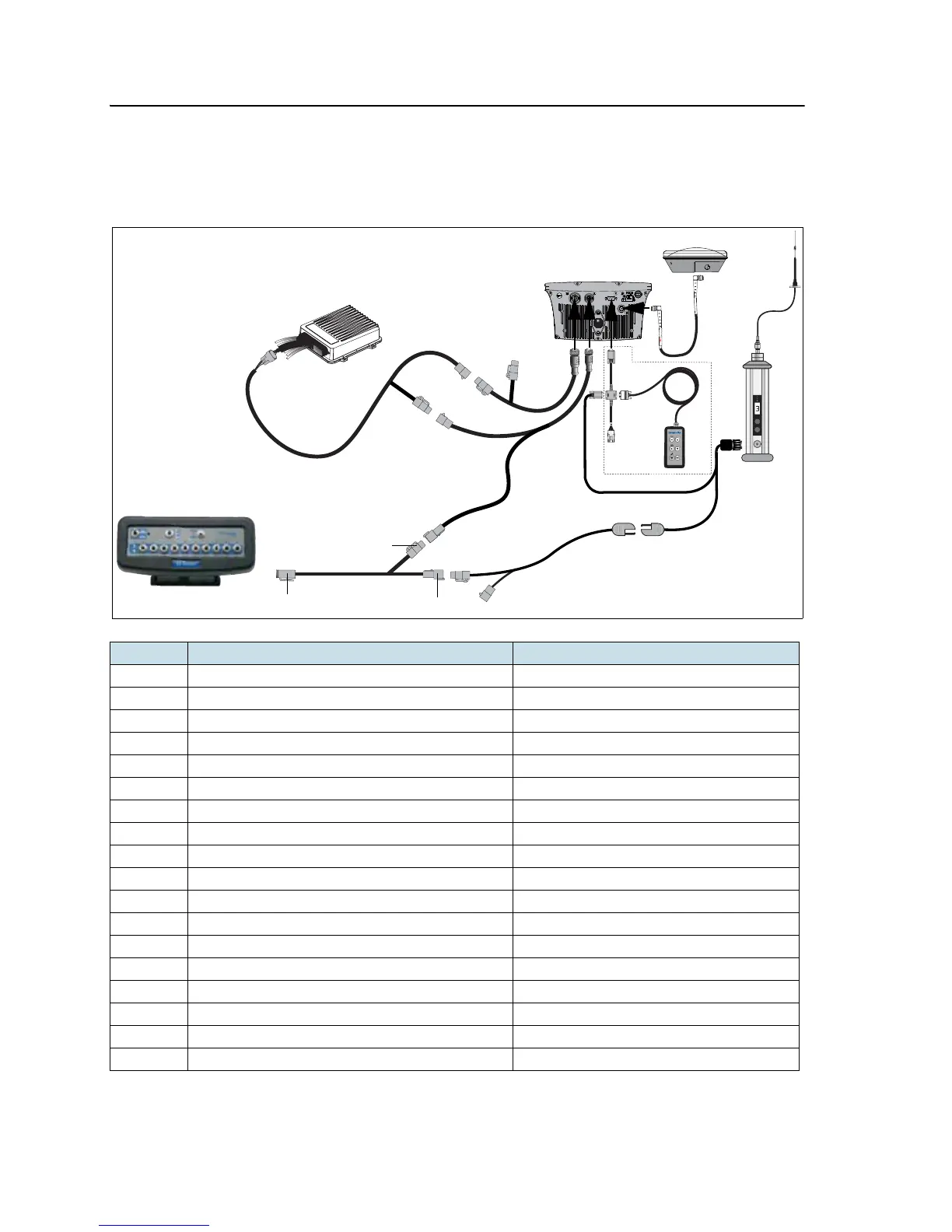

This figure shows how to connect an EZ-Guide 500 lightbar to an AgGPS Autopilot
system, an EZ-Boom 2010 system, and a 450 MHz radio:
Item Description Part number
A Radio antenna 51870-x0-x0
B Radio antenna magnetic mount 62109
C Radio antenna connector 63278
D PDL 450 radio 62550-4x-xx
E Remote keypad (optional) 66030-00
F External interface cable 62749
G PDL radio power/data cable 51861-00
H Power tap to PDL radio 63185
I EZ-Boom cable 61437
J EZ-Boom controller –
K EZ-Guide 500 power cable 62817
L EZ-Guide 500-to-Autopilot cable 62754
M AgGPS Autopilot controller –
N Port expansion cable 62609
O EZ-Guide 500 lightbar 66100-xx
P GPS antenna cable 50449
Q GPS antenna 77038-00
1 “S3“connector –
