3
Unit Set Up

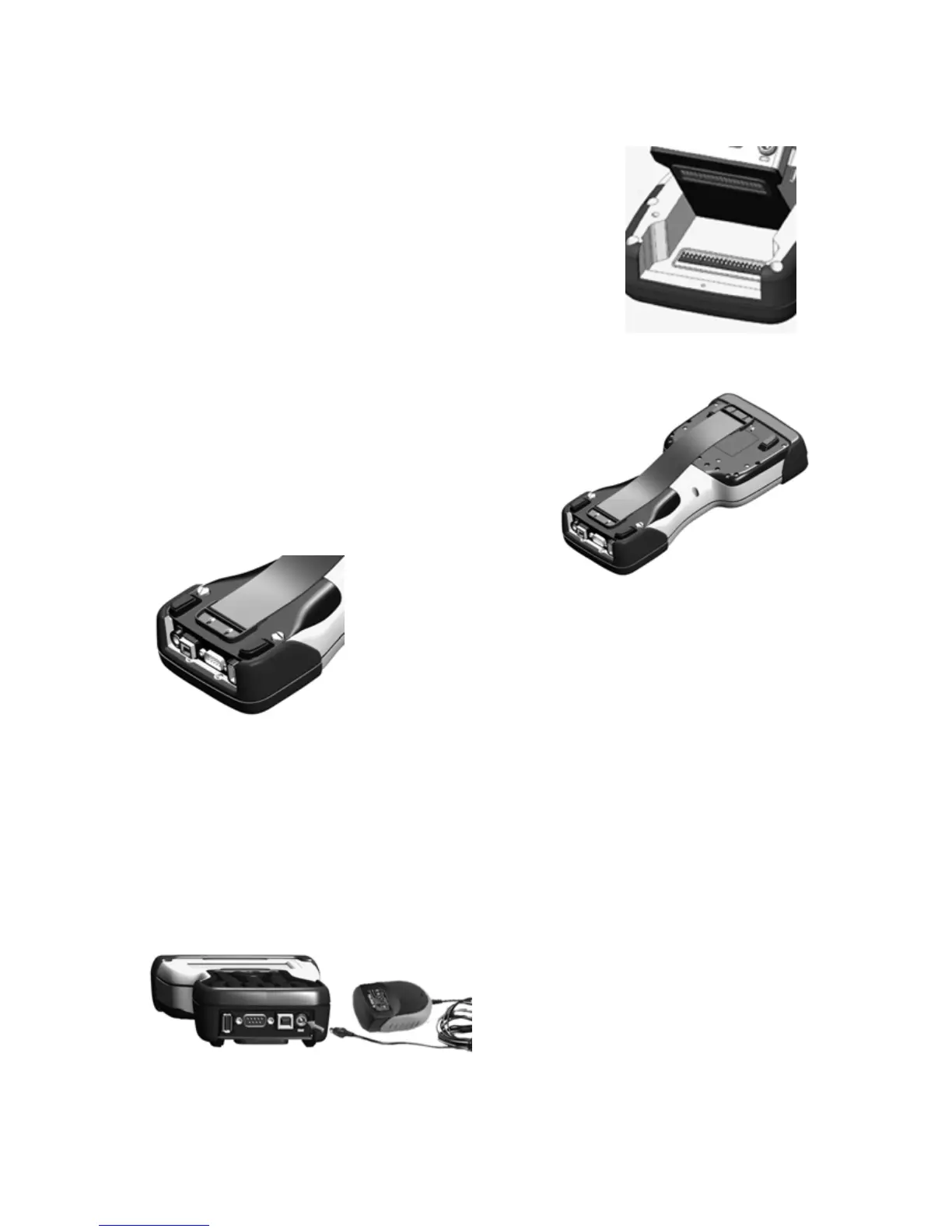

1. Attach the PowerBoot Module
The PowerBoot Module
TM
that contains the
batteries is shipped detached from the unit.
Align the PowerBoot Module with the contacts
facing down. Insert the top end of the
PowerBoot Module first as shown, and then
drop the PowerBoot Module into the unit.
Secure by tightening the two screws with the
stylus, a coin, or a screwdriver.
2. Attach the hand strap
Insert the strap as shown onto the two
small bolts located on the back of the
unit, near the bottom of the PowerBoot
Module.
Now stretch the hand strap and insert the
other end of the strap onto the two bolts at the
top of the unit.
3. Charge your unit
The AC charger that ships with your unit comes with adapters to fit
almost every electrical outlet and voltage. Connect the correct
adapter to the charger, plug the charger into an electrical outlet and
plug the DC jack barrel end of the charger into the external power
port on the PowerBoot Module. Charge the PowerBoot Module for
approximately 4.5 hours.
Warning! Be sure to always use
the charger included with your
unit. Use of other chargers will
void your warranty.
