Trimble TSC3 User Manual

5
Top View
Bottom View
I/O

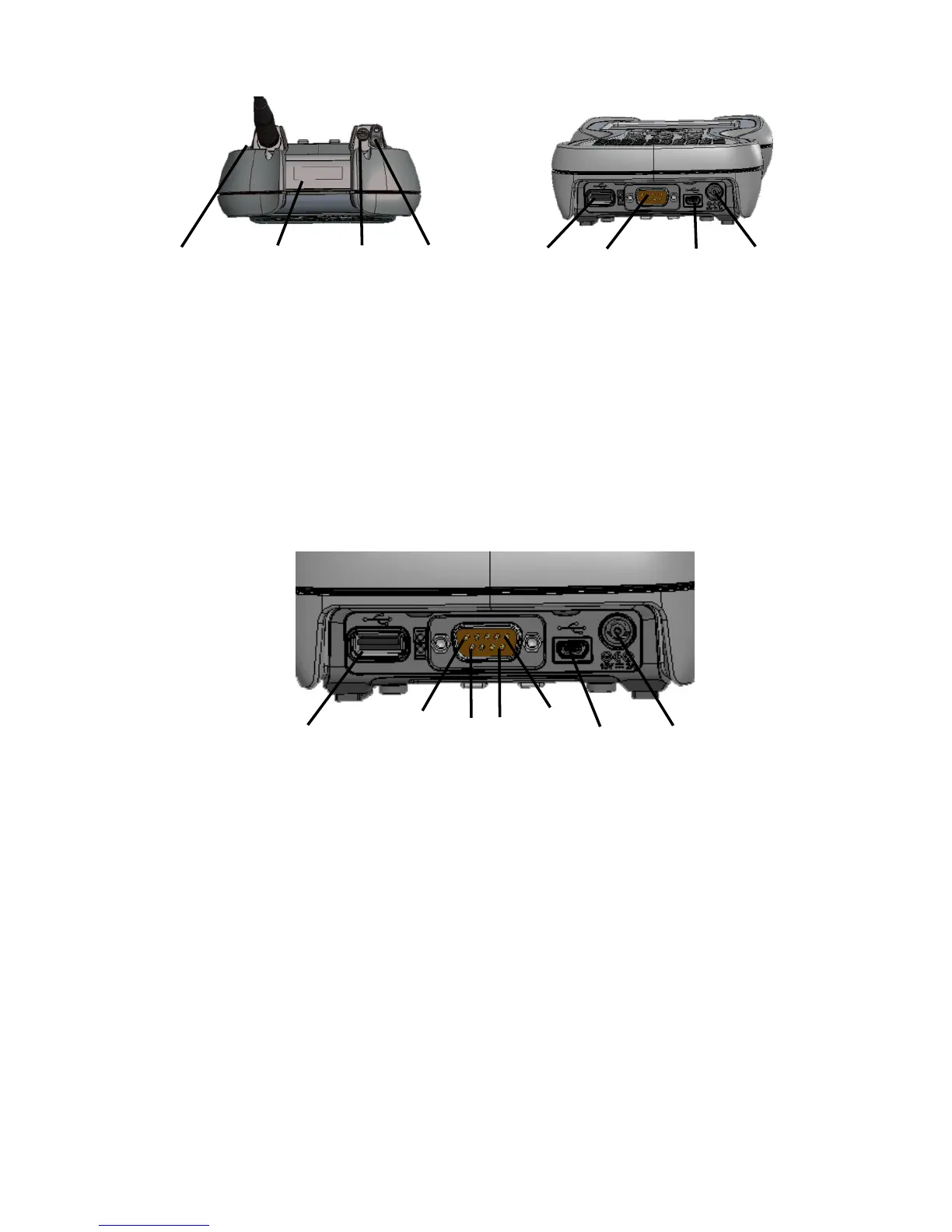

The I/O has a mini-USB client (to connect to Microsoft Windows
Mobile Device Center used on Microsoft Windows Vista
®
and
Windows 7
®
or connect to Microsoft ActiveSync
®
used on
Microsoft Windows XP
®
), a USB host port (to connect to USB
client devices) and a DB9 RS-232 connector (for use with serial
devices).
NOTE: COM1 is always reserved in software for the 9-pin port.
Many USB host peripheral devices supported by personal
computers (Microsoft Windows XP, Microsoft Vista, Microsoft
Windows 7, etc.) are not supported by this unit. Mass storage
devices (e.g. memory drives) and USB Human Interface Devices
(HID) (e.g. keyboards) are supported. Before purchasing a USB
peripheral, check with the manufacturer to ensure that it will
operate with one of these natively supported USB classes. Some
devices have no applicability in Windows Mobile. For example,
mice do not make sense to use with your unit because it is
designed to be touchscreen or keypad operated.
Serial
External
Power
USB
Barcode
Scanner
(if present)
Stylus
Holder
2.4 GHz
Antenna
(if present)
Audio
Jack
Mini-
USB
Client
Pin 5
Pin 1
Pin 9
Pin 6
Serial
External
Power
USB
Mini-
USB
Client

Trimble TSC3 Specifications

General

Operating System	Windows Embedded Handheld 6.5
Memory	256 MB RAM
Processor	Texas Instruments DM3730
Connectivity	Bluetooth, Wi-Fi
Camera	5 MP camera with autofocus and flash
GPS	Integrated GPS receiver
Ports	USB
Ruggedness	IP67
Battery	Rechargeable Li-ion battery
