Attaching the Ream Cutter to its stand
(Based on RE3946 Ream Cutter - All models will t the stand in the same way. Please ensure that 2 x Size D batteries are placed
in the battery holder, this applies to all models.The RE3943 doesn’t come with a stand).
• The grip of the knife lever, spindle guided clamping wheel and the back gauge crank are
packed separately with the system. Please start by assembling these.

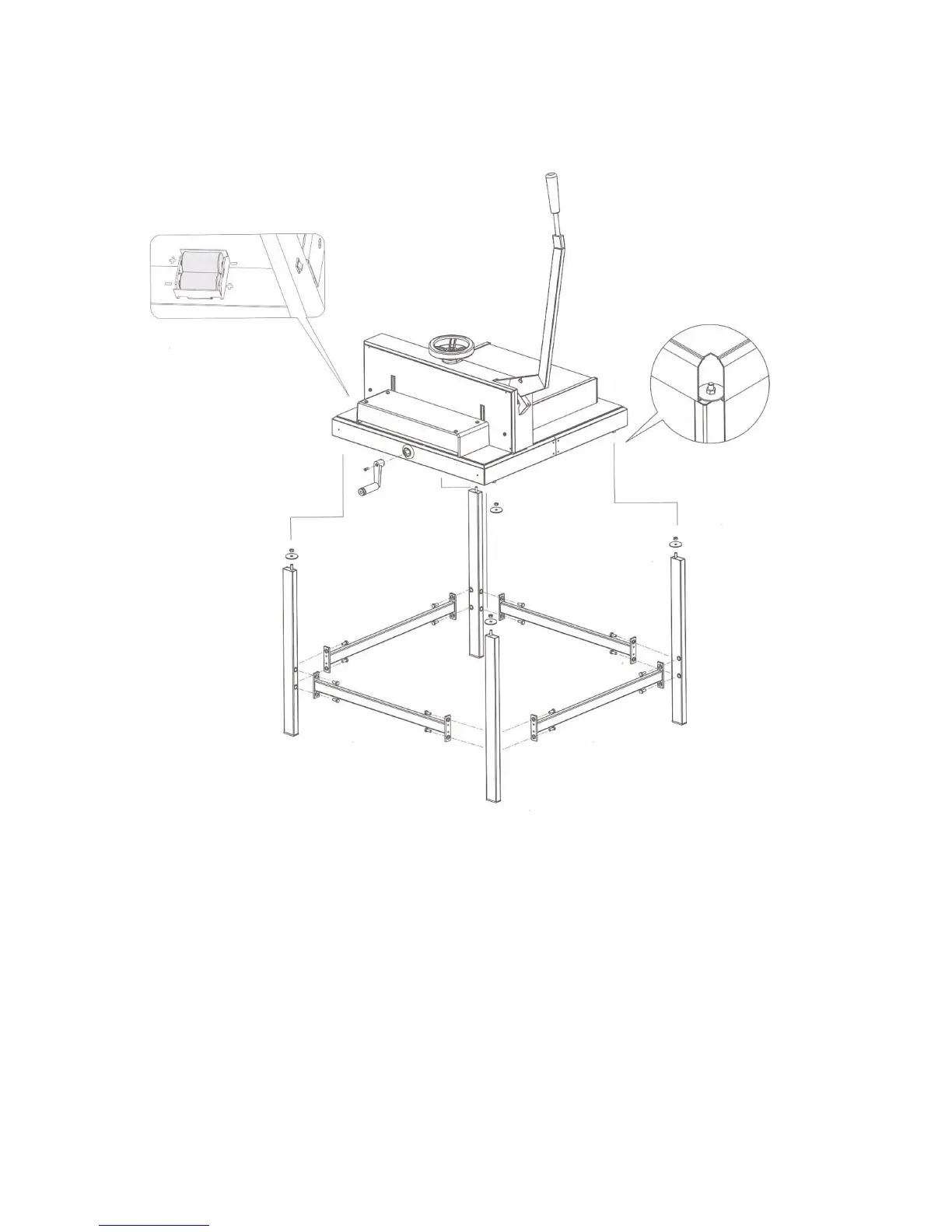

• To attach the guillotine to its stand, start by setting up the stand with the 4 threaded pins
pointing upwards.
• Assemble the stand according to the colour labelling on the stand.
• Place the guillotine system (top part of the system) onto the stand.
• Secure with the washers and hexagonal nuts with a 13mm wrench.
• Fit two batteries (size D) into the battery holder.
