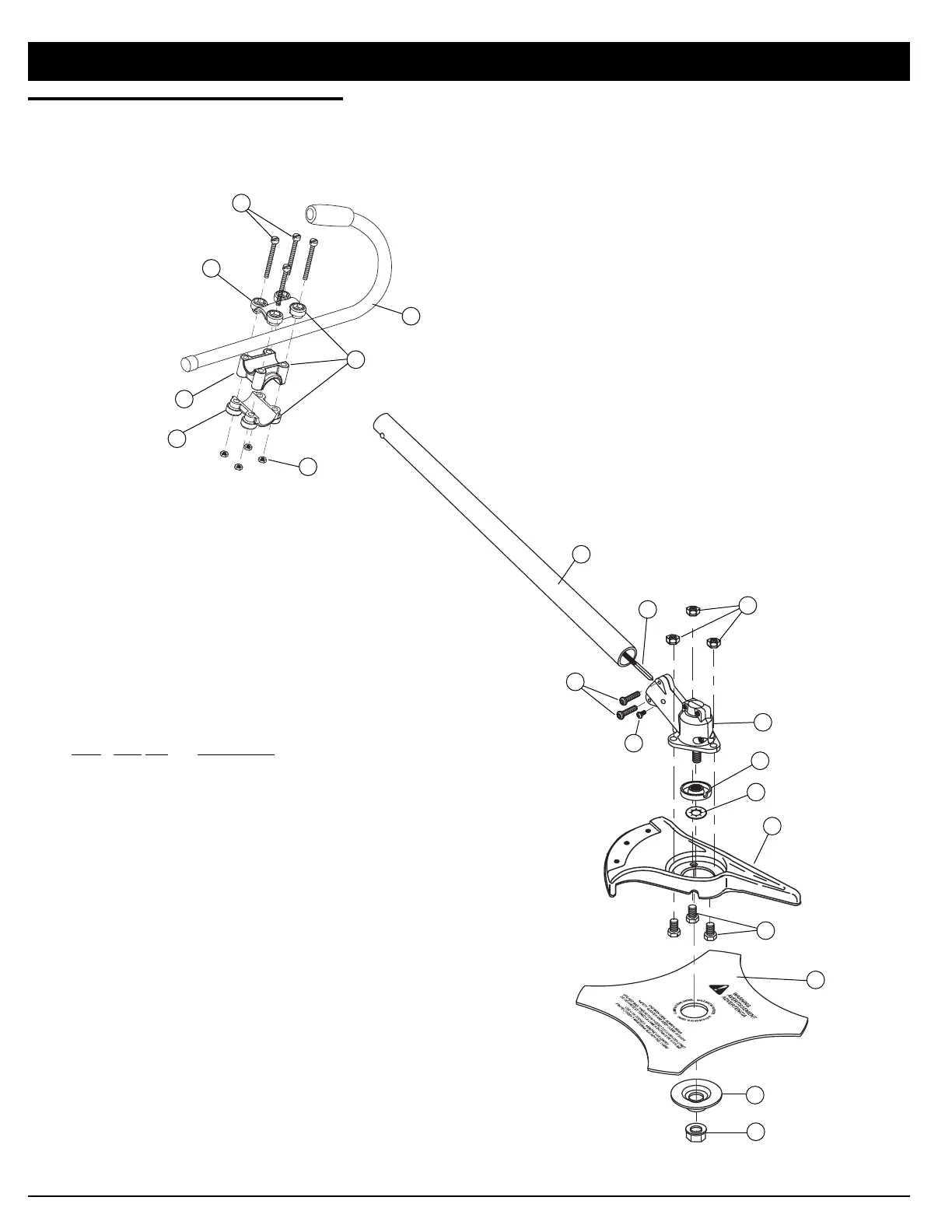

BOOM AND BRUSHCUTTER PARTS - MODEL BC720
BRUSHCUTTER ATTACHMENT
2
3
3
4
5
12
11
10
9
6
1
Item Part No. Description
1 791-180804 Lower Drive Shaft Housing Assembly
2 791-613300 Lower Flexible Drive Shaft
3 791-182200 Shield Mount Screw Assembly
4 791-182193 2 piece Gearbox Assembly (includes 5-6)
5 791-182195 Gearbox Mounting Hardware
6 791-145569 Anti-Rotation Screw
7 791-182196 Blade Driver
8 753-04348 Palnut
9 791-147492 Blade Shield/Shield Mount
10 791-145873 4-Tooth Blade
11 791-147490 Retaining Washer
12 791-181699 Nut
13 791-181099 J-Handle Assembly
14 791-683295 Handle Bracket Assembly (includes 13-18)
15 791-181811 Screw
16 791-181812 Upper Handle Clamp
17 791-181813 Middle Handle Clamp
18 791-181814 Lower Handle Clamp
19 791-181815 Nut
* 791-180014B Blade Retaining Kit (includes 11 & 12)
* 791-613226 Locking Rod Tool
* 791-682075B Shoulder Harness
* 791-180194 Clamp Shoulder Strap
* 791-612605 Hanger
